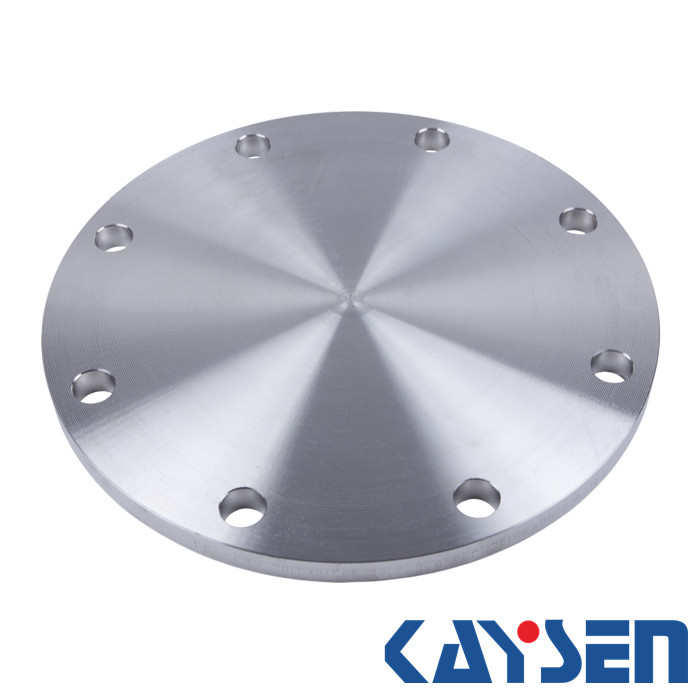

ANSI/ASME B16.5 Blind Flange
ASME/ANSI B16.5 Blind Flange Class 2500
Standard: ANSI/ASME B16.5
Flange type: Blind Flange
Size range: 1/2
Pressure: Class 2500
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.5
▲Flange type: Blind Flange
▲Size range: 1/2"-12
▲Pressure class: Class 2500
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Keywords: Stainless steel blind flange, ASME B16.5 Blind flange, ANSI B16.5 flange
▲Standard: ASME B16.5
▲Flange type: Blind Flange
▲Size range: 1/2"-12
▲Pressure class: Class 2500
▲Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
|
Pipe Normal Diam. |
O.D. Flange |
Thk. Of Flange Min |
Diam. |
Diam. |
Number |
Diam. of |
KG |
LB |
|
|
inch |
dn |
O |
C |
BC |
BH |
BN |
BD |
|
|
|
1/2" |
15 |
133.4 |
30.2 |
88.9 |
22.4 |
4 |
3/4" |
3 |
7 |
|
3/4" |
20 |
139.7 |
31.8 |
95.3 |
22.4 |
4 |
3/4" |
4.5 |
10 |
|
1" |
25 |
158.8 |
35.1 |
108 |
25.4 |
4 |
7/8" |
5 |
12 |
|
1-1/4" |
32 |
184.2 |
38.1 |
130 |
28.4 |
4 |
1" |
8 |
18 |
|
1-1/2" |
40 |
203.2 |
44.5 |
146.1 |
31.8 |
4 |
1 1/8" |
11 |
25 |
|
2" |
50 |
235 |
50.8 |
171.5 |
28.4 |
8 |
1" |
17 |
38 |
|
2-1/2" |
65 |
266.7 |
57.2 |
196.9 |
31.8 |
8 |
1 1/8" |
25 |
55 |
|
3" |
80 |
304.8 |
66.5 |
228.6 |
35.1 |
8 |
1 1/4" |
39 |
86 |
|
4" |
100 |
355.6 |
76.2 |
273.1 |
41.1 |
8 |
1 1/2" |
60 |
133 |
|
5" |
125 |
419.1 |
91.9 |
323.9 |
47.8 |
8 |
1 3/4" |
101 |
223 |
|
6" |
150 |
482.6 |
108 |
368.3 |
53.8 |
8 |
2" |
156 |
345 |
|
8" |
200 |
552.5 |
127 |
438.2 |
53.8 |
12 |
2" |
242 |
533 |
|
10" |
250 |
673.1 |
165.1 |
539.8 |
66.5 |
12 |
2 1/2" |
465 |
1023 |
|
12" |
300 |
762 |
184.2 |
619.3 |
73.2 |
12 |
2 3/4" |
665 |
1463 |
