ANSI/ASME B16.5 Blind Flange

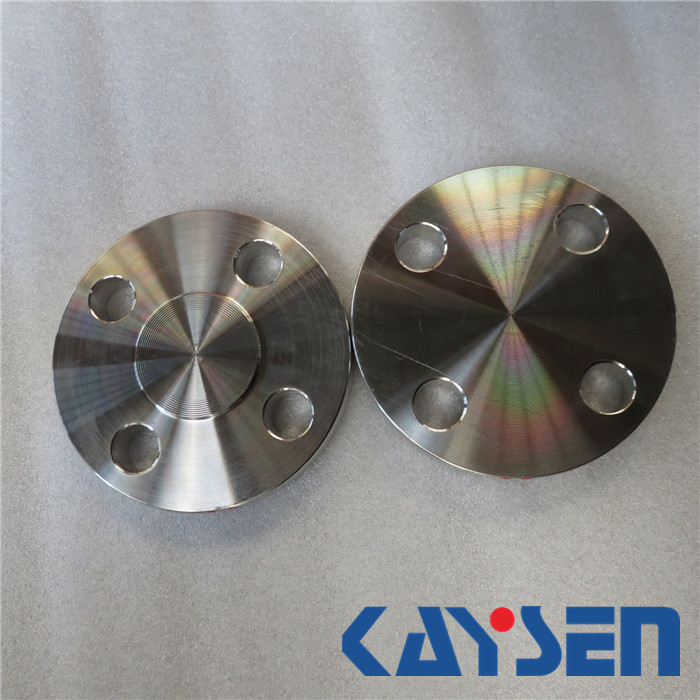

ASME/ANSI B16.5 Blind Flange Class 400
Standard: ANSI/ASME B16.5
Flange type: Blind Flange
Size range: 1/2
Pressure: Class 400
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.5
▲Flange type: Blind Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 400
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Keywords: Stainless steel blind flange, ASME B16.5 Blind flange, ANSI B16.5 flange
▲Standard: ASME B16.5
▲Flange type: Blind Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 400
▲Material:Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
|
Pipe |
Flange Data |
Raised |
Drilling Data |
|||
|
Nominal |
A |
C |
G |
H |
I |
J |
|
Overall |
Flange |
Face |
Number |
Bolt Hole |
Diameter |
|
|
1/2" |
95 |
14.2 |
35.1 |
4 |
15.8 |
66.7 |
|
3/4" |
115 |
15.9 |
42.9 |
4 |
19.1 |
82.6 |
|
1" |
125 |
17.5 |
50.8 |
4 |
19.1 |
88.9 |
|
1.1/4" |
135 |
20.7 |
63.5 |
4 |
19.1 |
98.4 |
|
1.1/2" |
155 |
223 |
73.2 |
4 |
22.2 |
114.3 |
|
2" |
165 |
25.4 |
91.9 |
8 |
19.1 |
127 |
|
2.1/2" |
190 |
28.6 |
104.6 |
8 |
22.2 |
149.2 |
|
3" |
210 |
31.8 |
127 |
8 |
22.2 |
168.3 |
|
3.1/2" |
230 |
35 |
139.7 |
8 |
25.4 |
184.2 |
|
4" |
255 |
35 |
157.2 |
8 |
25.4 |
200 |
|
5" |
280 |
38.1 |
185.7 |
8 |
25.4 |
235 |
|
6 |
320 |
41.3 |
215.9 |
12 |
25.4 |
269.9 |
|
8" |
380 |
47.7 |
269.7 |
12 |
28.4 |
330.2 |
|
10" |
445 |
54 |
323.9 |
16 |
31.8 |
387.4 |
|
12" |
520 |
57.2 |
381 |
16 |
34.9 |
450.8 |
|
14" |
585 |
60.4 |
412.8 |
20 |
34.9 |
514.4 |
|
16" |
650 |
63.5 |
469.9 |
20 |
37.1 |
571.5 |
|
18" |
710 |
66.7 |
533.4 |
24 |
38.1 |
628.6 |
|
20" |
775 |
69.9 |
584.2 |
24 |
41.2 |
685.8 |
|
24" |
915 |
76.2 |
692.2 |
24 |
47.6 |
812.8 |
