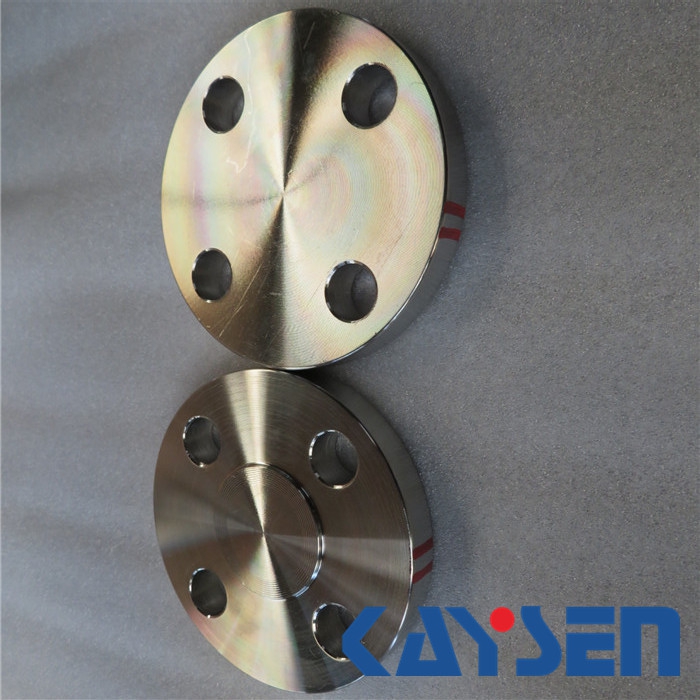

ANSI/ASME B16.5 Blind Flange
ASME/ANSI B16.5 Blind Flange Class 900
Standard: ANSI/ASME B16.5
Flange type: Blind Flange
Size range: 1/2
Pressure: Class 900
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.5
▲Flange type: Blind Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 900
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Keywords: Stainless steel blind flange, ASME B16.5 Blind flange, ANSI B16.5 flange
▲Standard: ASME B16.5
▲Flange type: Blind Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 900
▲Material:Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
|
Pipe Normal Diam. |
O.D. Flange |
Thk. Of Flange Min |
Diam. |
Diam. |
Number |
Diam. of |
Approx. Weight |
||
|
inch |
dn |
O |
C |
BC |
BH |
BN |
BD |
KG/PCS |
LB/PCS |
|
1/2" |
15 |
120.7 |
22.4 |
82.6 |
22.4 |
4 |
3/4" |
1.9 |
4.2 |
|
3/4" |
20 |
130 |
25.4 |
88.9 |
22.4 |
4 |
3/4" |
2.7 |
6 |
|
1" |
25 |
149.4 |
28.4 |
101.6 |
25.4 |
4 |
7/8" |
3.7 |
8.1 |
|
1-1/4" |
32 |
158.8 |
28.4 |
111.3 |
25.4 |
4 |
7/8" |
4.3 |
9.5 |
|
1-1/2" |
40 |
177.8 |
31.8 |
124 |
28.4 |
4 |
1" |
5.9 |
13 |
|
2" |
50 |
215.9 |
38.1 |
165.1 |
25.4 |
8 |
7/8" |
11.3 |
24.9 |
|
2-1/2" |
65 |
244.3 |
41.1 |
190.5 |
28.4 |
8 |
1" |
16 |
35.2 |
|
3" |
80 |
241.3 |
38.1 |
190.5 |
25.4 |
8 |
7/8" |
16.8 |
37 |
|
4" |
100 |
292.1 |
44.5 |
235 |
31.8 |
8 |
1 1/8" |
24.5 |
54 |
|
5" |
125 |
349.3 |
50.8 |
279.4 |
35.1 |
8 |
1 1/4" |
39.5 |
87 |
|
6" |
150 |
381 |
55.6 |
317.5 |
31.8 |
12 |
1 1/8" |
51.5 |
113.5 |
|
8" |
200 |
469.9 |
63.5 |
393.7 |
38.1 |
12 |
1 3/8" |
89 |
196 |
|
10" |
250 |
546.1 |
69.9 |
469.9 |
38.1 |
16 |
1 3/8" |
131 |
289 |
|
12" |
300 |
609.6 |
79.2 |
533.4 |
38.1 |
20 |
1 3/8" |
187 |
412 |
|
14" |
350 |
641.4 |
85.9 |
558.8 |
41.1 |
20 |
1 1/2" |
224 |
494 |
|
16" |
400 |
704.9 |
88.9 |
616 |
44.5 |
20 |
1 5/8" |
259 |
593 |
|
18" |
450 |
787.4 |
101.6 |
685.8 |
50.8 |
20 |
1 7/8" |
383 |
844 |
|
20" |
500 |
857.3 |
108 |
749.3 |
53.8 |
20 |
2" |
482 |
1063 |
|
24" |
600 |
1041 |
139.7 |
901.7 |
66.5 |
20 |
2 1/2" |
905 |
1995 |
