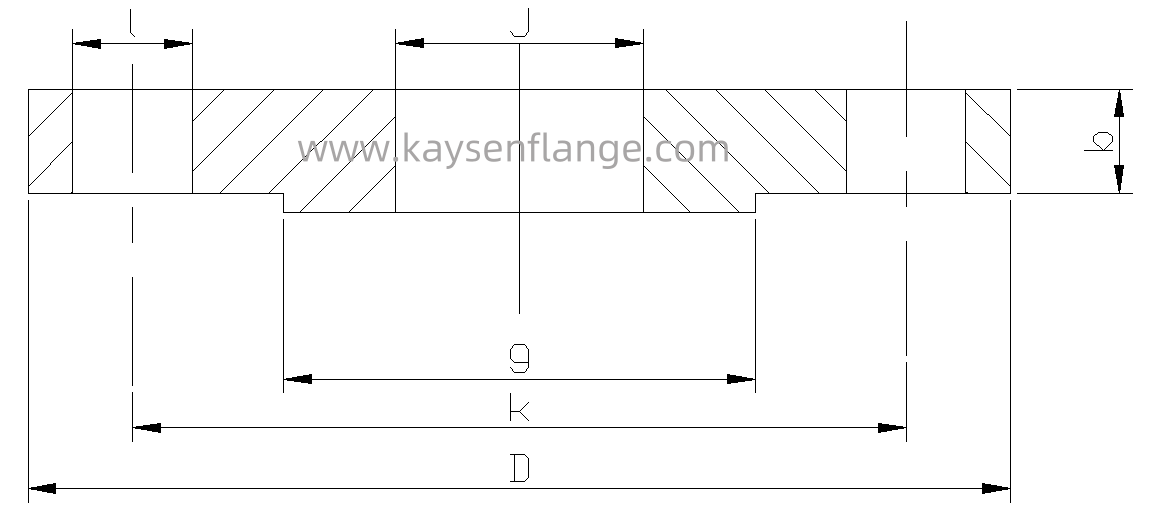

ANSI/ASME B16.5 Plate Flange
ASME B16.5 Plate/Flat Flange Class 400
Standard: ASME B16.5
Flange type: Plate Flange
Size range: 1/2
Pressure: Class 400
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.5
▲Flange type: Plate/Flat Flange
▲Size range: 1/2"-24"
▲Pressure class: Class 400
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91,ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: ASME B16.5
Flange type: Plate/Flat Flange
Size range: 1/2"-24"
Pressure class: Class 400
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
|
NPS |
Groove No. |
P |
E |
F |
|
1/2 |
11 |
34.14 |
5.54 |
7.14 |
|
3/4 |
13 |
42.88 |
6.35 |
8.74 |
|
1 |
16 |
50.80 |
6.35 |
8.74 |
|
1-1/4 |
18 |
60.33 |
6.35 |
8.74 |
|
1-1/2 |
20 |
68.27 |
6.35 |
8.74 |
|
2 |
23 |
82.55 |
7.92 |
11.91 |
|
2-1/2 |
26 |
101.60 |
7.92 |
11.91 |
|
3 |
30 |
117.48 |
7.92 |
11.91 |
|
3-1/2 |
34 |
131.78 |
7.92 |
11.91 |
|
4 |
37 |
149.23 |
7.92 |
11.91 |
|
5 |
41 |
180.98 |
7.92 |
11.91 |
|
6 |
45 |
211.12 |
7.92 |
11.91 |
|
8 |
49 |
269.88 |
7.92 |
11.91 |
|
10 |
53 |
323.85 |
7.92 |
11.91 |
|
12 |
57 |
381.00 |
7.92 |
11.91 |
|
14 |
61 |
419.10 |
7.92 |
11.91 |
|
16 |
65 |
469.90 |
7.92 |
11.91 |
|
18 |
69 |
533.40 |
7.92 |
11.91 |
|
20 |
73 |
584.20 |
9.53 |
13.49 |
|
22 |
81 |
635.00 |
11.13 |
15.09 |
|
24 |
77 |
692.15 |
11.13 |
16.66 |
