APl 605 Flange
API 605 blind Flange Class 75
Standard: API 605
Flange type: blind flange
Size range: 26"-60"
Pressure: Class 75
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: API 605
Flange type: blind flange
Size range: 26"-60"
Pressure class: Class 75
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: API 605
Flange type: blind flange
Size range: 26"-60"
Pressure class: Class 75
Material : Stainless steel , Alloy Steel , Carbon Steel
|

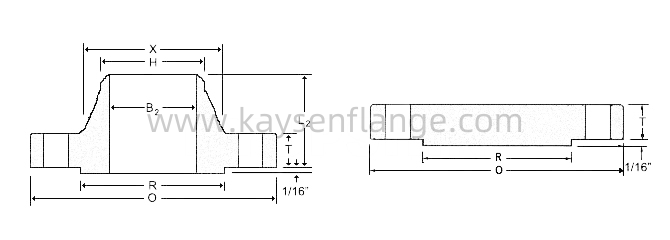

ANSI B16.47 SERIES B CLASS 75 FLANGES DIMENSIONS TABLE |
||||||||||||||
|
Nom Size |
OD |
Thickness |
OD of RF |
Dia at Base |
Bore |
LTH |
Dia Bevel |
Drilling |
Weight |
|||||
|
Weld Neck |
Blind |
Bolt Circle |
Bolt Length |
Hole Dia |
# of Holes |
Weld Neck |
Blind |
|||||||
|
|
O |
C |
C |
R |
X |
B |
Y |
A |
|
-1 |
-2 |
|
|
|
|
26 |
30 |
1.25 |
1.25 |
27.75 |
26.62 |
To be specified by purchaser |
2.25 |
26.06 |
28.5 |
4.5 |
0.75 |
36 |
80 |
255 |
|
28 |
32 |
1.25 |
1.25 |
29.75 |
28.62 |
2.38 |
28.06 |
30.5 |
4.5 |
0.75 |
40 |
85 |
290 |
|
|
30 |
34 |
1.25 |
1.25 |
31.75 |
30.62 |
2.5 |
30.06 |
32.5 |
4.5 |
0.75 |
44 |
90 |
330 |
|
|
32 |
36 |
1.32 |
1.38 |
33.75 |
32.62 |
2.69 |
32.06 |
34.5 |
4.75 |
0.75 |
48 |
105 |
390 |
|
|
34 |
38 |
1.32 |
1.44 |
35.75 |
34.62 |
2.82 |
34.06 |
36.5 |
4.75 |
0.75 |
52 |
110 |
430 |
|
|
36 |
40.69 |
1.38 |
1.61 |
38 |
36.81 |
3.32 |
36.06 |
39.06 |
5.25 |
0.88 |
40 |
145 |
518 |
|
|
38 |
42.69 |
1.44 |
1.69 |
40 |
38.81 |
3.44 |
38.06 |
41.06 |
5.5 |
0.88 |
40 |
160 |
595 |
|
|
40 |
44.69 |
1.44 |
1.69 |
42 |
40.81 |
3.57 |
40.06 |
43.06 |
5.5 |
0.88 |
44 |
170 |
760 |
|
|
42 |
46.69 |
1.5 |
1.82 |
44 |
42.81 |
3.69 |
42.06 |
45.06 |
5.5 |
0.88 |
48 |
185 |
895 |
|
|
44 |
49.25 |
1.63 |
1.88 |
46.25 |
44.88 |
4.07 |
44.06 |
47.38 |
6 |
1 |
36 |
230 |
1065 |
|
|
46 |
51.25 |
1.69 |
1.94 |
48.25 |
46.88 |
4.19 |
46.06 |
49.38 |
6.25 |
1 |
40 |
245 |
1185 |
|
|
48 |
53.25 |
1.75 |
2.07 |
50.25 |
48.88 |
4.32 |
48.06 |
51.38 |
6.5 |
1 |
44 |
270 |
1315 |
|
|
50 |
55.25 |
1.82 |
2.13 |
52.25 |
50.94 |
4.5 |
50.06 |
53.38 |
6.5 |
1 |
44 |
290 |
1505 |
|
|
52 |
57.38 |
1.82 |
2.19 |
54.25 |
52.94 |
4.69 |
52.06 |
55.5 |
6.75 |
1 |
48 |
310 |
1665 |
|
|
54 |
59.38 |
1.88 |
2.32 |
56.25 |
55 |
4.88 |
54.06 |
57.5 |
6.75 |
1 |
48 |
340 |
1840 |
|
|
56 |
62 |
1.94 |
2.38 |
58.5 |
57.12 |
5.25 |
56.06 |
59.88 |
7.25 |
1.12 |
40 |
400 |
2110 |
|
|
58 |
64 |
2 |
2.44 |
60.5 |
59.12 |
5.38 |
58.06 |
61.88 |
7.25 |
1.12 |
44 |
430 |
2300 |
|
|
60 |
66 |
2.13 |
2.57 |
62.5 |
61.12 |
5.63 |
60.06 |
63.88 |
7.75 |
1.12 |
44 |
475 |
2500 |
|
