ASME B16.47 SER.A Blind Flange
ASME B16.47 SER.A Blind Flange Class 600
Standard: ASME B16.47 SER.A
Flange type: Blind Flange
Size range: 12"-60"
Pressure: Class 600
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.47 SER.A
▲Flange type: Blind flange
▲Size range: 12"-60"
▲Pressure: Class 600
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: ASME B16.47 SER.A
Flange type: Blind Flange
Size range: 12"-60"
Pressure : Class 600
Material : Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
|

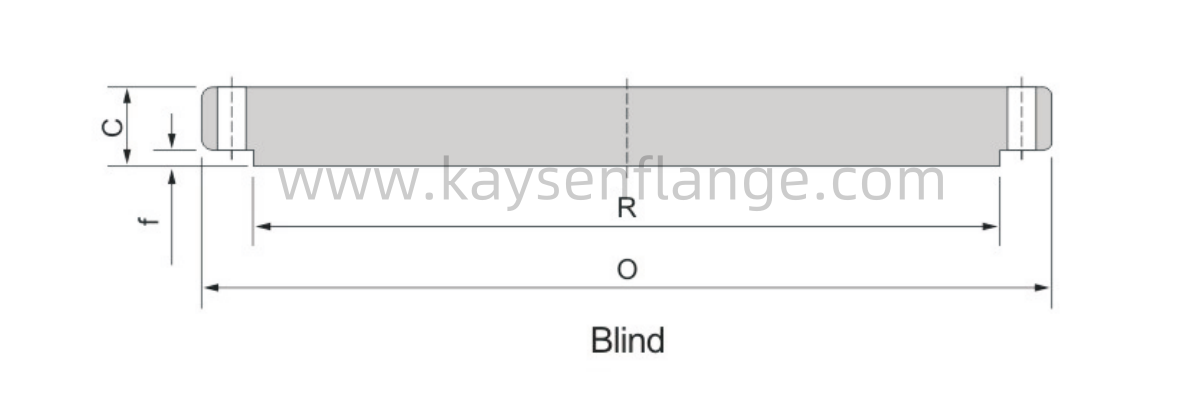

Pipe Normal Diam. |
O.D.of Flange |
Thickness |
LengthThrough Hub |
Diam. of Hub at Bevel |
Raised Face Diam. |
Fillet Radius Min. |
Diam. of Bolt Circle |
No. of |
Diam. of Bolt Holes |
Diam. of Bolt |
Approx. |
|
O |
C |
Y |
A |
R |
r |
||||||
|
26" |
1016.0 |
125.5 |
222.3 |
660.4 |
749.3 |
12.7 |
914.4 |
28 |
50.8 |
1 7/8 |
797.9 |
|
28" |
1073.2 |
131.8 |
235.0 |
711.2 |
800.1 |
12.7 |
965.2 |
28 |
53.8 |
2 |
934.9 |
|
30" |
1130.3 |
139.7 |
247.7 |
762.0 |
857.3 |
12.7 |
1022.4 |
28 |
53.8 |
2 |
1099.1 |
|
32" |
1193.8 |
147.6 |
260.4 |
812.8 |
914.4 |
12.7 |
1079.5 |
28 |
60.5 |
2 1/4 |
1295.5 |
|
34" |
1244.6 |
153.9 |
269.7 |
863.6 |
965.2 |
14.2 |
1130.3 |
28 |
60.5 |
2 1/4 |
1468.3 |
|
36" |
1314.5 |
162.1 |
282.4 |
914.4 |
1022.4 |
14.2 |
1193.8 |
28 |
66.5 |
2 1/4 |
1724.6 |
|
38" |
1270.8 |
155.4 |
254.0 |
965.2 |
1054.1 |
14.2 |
1162.1 |
28 |
60.5 |
2 1/4 |
1544.1 |
|
40" |
1320.8 |
162.1 |
263.7 |
1016.0 |
1111.3 |
14.2 |
1212.9 |
32 |
60.5 |
2 1/4 |
1740.9 |
|
42" |
1403.4 |
171.5 |
279.4 |
1066.8 |
1168.4 |
14.2 |
1282.7 |
28 |
66.5 |
2 1/2 |
2079.8 |
|
44" |
1454.2 |
177.8 |
289.1 |
1117.6 |
1225.6 |
14.2 |
1333.5 |
32 |
66.5 |
2 1/2 |
2315.6 |
|
46" |
1511.3 |
185.7 |
300.0 |
1168.4 |
1276.4 |
14.2 |
1390.7 |
32 |
66.5 |
2 1/2 |
2611.8 |
|
48" |
1593.9 |
195.3 |
316.0 |
1219.2 |
1333.5 |
14.2 |
1460.5 |
32 |
73.2 |
2 3/4 |
3055.9 |
|
50" |
1670.1 |
203.2 |
328.7 |
1270.0 |
1384.3 |
14.2 |
1524.0 |
28 |
79.2 |
3 |
3490.5 |
|
52" |
1720.9 |
209.6 |
336.6 |
1320.8 |
1435.1 |
14.2 |
1574.8 |
32 |
79.2 |
3 |
3822.0 |
|
54" |
1778.0 |
217.4 |
349.3 |
1371.6 |
1492.3 |
14.2 |
1632.0 |
32 |
79.2 |
3 |
4233.4 |
|
56" |
1854.2 |
225.6 |
362.0 |
1422.4 |
1543.1 |
15.7 |
1695.5 |
32 |
85.9 |
3 1/4 |
4776.0 |
|
58" |
1905.0 |
231.6 |
369.8 |
1473.2 |
1600.2 |
15.7 |
1746.3 |
32 |
85.9 |
3 1/4 |
5177.4 |
|
60" |
1993.9 |
242.8 |
388.9 |
1524.0 |
1657.4 |
17.5 |
1822.5 |
28 |
91.9 |
3 1/2 |
5945.8 |
