ASME B16.47 SER.A Ring Type Joint Flange
ASME B16.47 SER.A Ring Type Joint Flange Class 300
Standard: ASME B16.47 SER.A
Flange type: Ring Type Joint Flange
Size range: 26
Pressure: Class 300
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.47 SER.A(MSS SP 44)
▲Flange type: Ring Type Joint Flange
▲Size range: 26"-36"
▲Pressure : Class 300
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: ASME B16.47 SER.A
Flange type: Ring Type Joint Flange
Size range: 26"-36"
Pressure : Class 300
Material : Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.

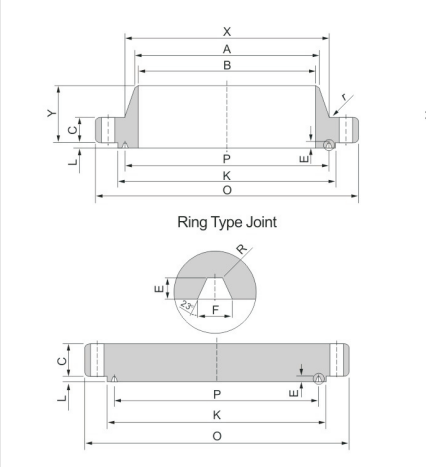

ASME B16.47 SER.A Ring Type Joint Flange Class 300 Dimensions in mm.
| Pipe Normal Diam. | O.D.of Flange | Thickness | Length Through Hub | Diam. at Base of Hub | Bore | Diam. of Hub at Bevel | Fillet Radius Min. | Diam. of Bolt Circle | No. of Bolt Holes |
Diam. of Bolt Holes | Diam. of Bolt | Pitch Dima. | GROOVE DIMENSIONS | Raised Face Diam. | Ring and GrooveNumber | Approx.Weight (KG) |
|||
| Wall Thickness | Width | Depth | Radius | ||||||||||||||||
| 9.5mm | 12.7mm | ||||||||||||||||||
| O | C | Y | X | B | A | r | P | F | E | R | K | ||||||||
| 26" | 971.6 | 79.2 | 184.2 | 720.9 | 641.4 | 635.0 | 660.4 | 9.7 | 876.3 | 28 | 44.5 | 1 5/8 | 749.3 | 19.8 | 12.7 | 1.5 | 809.8 | R93 | 274.4 |
| 28" | 1035.1 | 85.9 | 196.9 | 774.7 | 692.2 | 685.8 | 711.2 | 11.2 | 939.8 | 28 | 44.5 | 1 5/8 | 800.1 | 19.8 | 12.7 | 1.5 | 860.6 | R94 | 337.9 |
| 30" | 1092.2 | 91.9 | 209.6 | 827.0 | 743.0 | 736.6 | 762.0 | 11.2 | 997.0 | 28 | 47.8 | 1 3/4 | 857.3 | 19.8 | 12.7 | 1.5 | 917.4 | R95 | 394.6 |
| 32" | 1149.4 | 98.6 | 222.3 | 881.1 | 793.8 | 787.4 | 812.8 | 11.2 | 1054.1 | 28 | 50.8 | 1 7/8 | 914.4 | 23.0 | 14.3 | 1.5 | 984.3 | R96 | 455.9 |
| 34" | 1206.5 | 101.6 | 231.6 | 936.8 | 844.6 | 838.2 | 863.6 | 12.7 | 1104.9 | 28 | 50.8 | 1 7/8 | 965.2 | 23.0 | 14.3 | 1.5 | 1035.1 | R97 | 519.4 |
| 36" | 1270.0 | 104.6 | 241.3 | 990.6 | 895.4 | 889.0 | 914.4 | 12.7 | 1168.4 | 32 | 53.8 | 2 | 1022.4 | 23.0 | 14.3 | 1.5 | 1092.2 | R98 | 578.3 |
Notes:
Raised Face height(f)will be furnished with 1.6mm and,which is included in Thickness(C)and Length Through Hub (Y).
