ASME B16.47 SER.A Ring Type Joint Flange
ASME B16.47 SER.A Ring Type Joint Flange Class 400
Standard: ASME B16.47 SER.A
Flange type: Ring Type Joint Flange
Size range: 26
Pressure: Class 400
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.47 SER.A(MSS SP 44)
▲Flange type: Ring Type Joint Flange
▲Size range: 26"-36"
▲Pressure class: Class 400
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: ASME B16.47 SER.A
Flange type: Ring Type Joint Flange
Size range: 26"-36"
Pressure : Class 400
Material : Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.

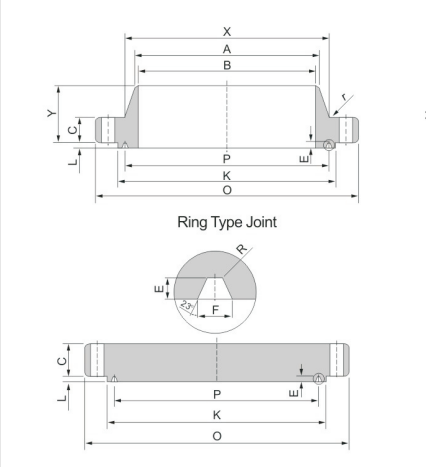

ASME B16.47 SER.A Ring Type Joint Flange Class 400 Dimensions in mm.
|
Pipe Normal Diam. |
O.D.of Flange |
Thickness |
Length |
Diam. at Base of Hub |
Bore |
Diam. of Hub at Bevel |
Fillet Radius Min. |
Diam. of Bolt Circle |
No. of |
Diam. of Bolt Holes |
Diam. of Bolt |
Pitch Dima. |
GROOVE DIMENSIONS |
Raised Face Diam. |
Ring and GrooveNumber |
Approx.Weight |
|||
|
|
|
|
|
|
Wall Thickness |
|
|
|
|
|
|
|
Width |
Depth |
Radius |
|
|
|
|
|
|
|
|
|
|
9.5mm |
12.7mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
O |
C |
Y |
X |
B |
A |
r |
|
|
|
|
P |
F |
E |
R |
K |
|
|
|
|
26" |
971.6 |
88.9 |
193.5 |
726.9 |
641.4 |
635.0 |
660.4 |
11.2 |
876.3 |
28 |
47.8 |
1 3/4 |
749.3 |
19.8 |
12.7 |
1.5 |
809.8 |
R93 |
294.8 |
|
28" |
1035.1 |
95.3 |
206.2 |
782.6 |
692.2 |
685.8 |
711.2 |
12.7 |
939.8 |
28 |
50.8 |
1 7/8 |
800.1 |
19.8 |
12.7 |
1.5 |
860.6 |
R94 |
356.1 |
|
30" |
1092.2 |
101.6 |
218.9 |
836.7 |
743.0 |
736.6 |
762.0 |
12.7 |
997.0 |
28 |
53.9 |
2 |
857.3 |
19.8 |
12.7 |
1.5 |
917.4 |
R95 |
410.5 |
|
32" |
1149.4 |
108.0 |
231.6 |
889.0 |
793.8 |
787.4 |
812.8 |
12.7 |
1054.1 |
28 |
53.9 |
2 |
914.4 |
23.0 |
14.3 |
1.5 |
984.3 |
R96 |
483.1 |
|
34" |
1206.5 |
111.3 |
241.3 |
944.6 |
844.6 |
838.2 |
863.6 |
14.2 |
1104.9 |
28 |
53.9 |
2 |
965.2 |
23.0 |
14.3 |
1.5 |
1035.1 |
R97 |
544.3 |
|
36" |
1270.0 |
114.3 |
251.0 |
1000.3 |
895.4 |
889.0 |
914.4 |
14.2 |
1168.4 |
32 |
53.9 |
2 |
1022.4 |
23.0 |
14.3 |
1.5 |
1092.2 |
R98 |
607.8 |
Notes:
Raised Face height(f)will be furnished with 6.4mm and,which is included in Thickness(C)and Length Through Hub (Y).
