ASME B16.47 SER.A Weld Neck Flange
ASME B16.47 SER.A Weld Neck Flange Class 150
Standard: ASME B16.47 SER.A Weld Neck Flange Class 150
Flange type: ASME B16.47 SER.A
Size range: 12
Pressure: Class 150
Material: Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.
▲Standard: ASME B16.47 SER.A(MSS SP 44)
▲Flange type: Weld Neck Flange
▲Size range: 12"-60"
▲Pressure : Class 150
▲Material:
1) Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31254/S31260/S32550/S32707
2) Carbon Steel Material:
ASTM A105, A350 LF2,P235GH,P250GH,SS400,Q235,C22.8,20#,16mn.
3) Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
ASTM A694 F42/F46/F52/F60/F65/F70/F80.
4) Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
5) Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22,C276
▲Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc, Hot dipped/ Electric galvanized.
▲Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: ASME B16.47 SER.A
Flange type: Weld Neck Flange
Size range: 12"-60"
Pressure : Class 150
Material : Stainless steel , Alloy Steel , Carbon Steel,Copper&Nickel Alloy,Nickel Alloy,etc.

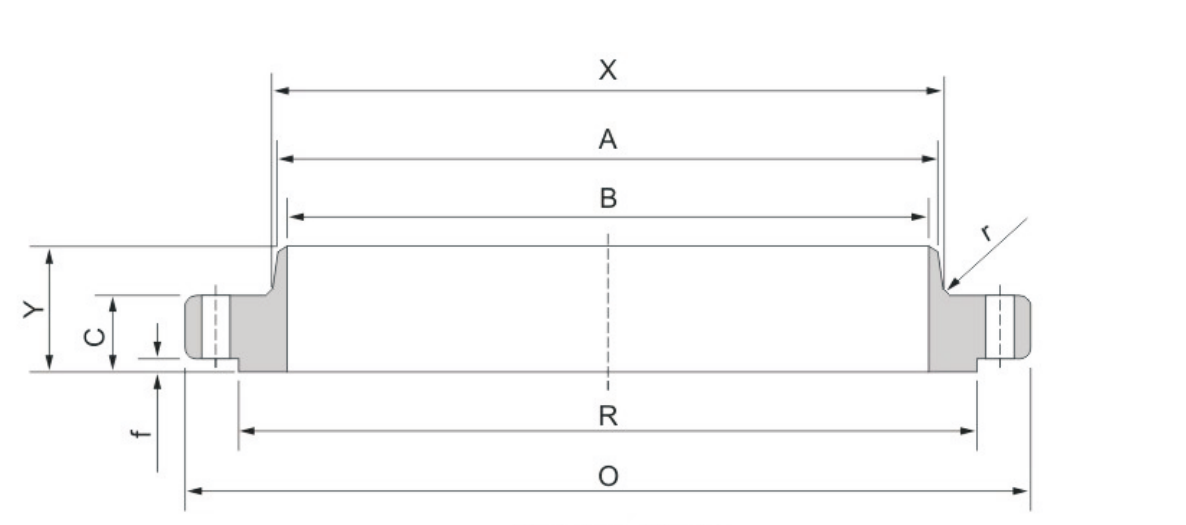

ASME B16.47 SER.A Weld Neck Flange Class 150 Dimensions in mm.
|
Pipe Normal Diam. |
O.D.of Flange |
Thickness |
LengthThrough Hub |
Diam. at Base of Hub |
Bore |
Diam. of Hub at Bevel |
Raised Face Diam. |
Fillet Radius Min. |
Diam. of Bolt Circle |
No. of |
Diam. of Bolt Holes |
Diam. of Bolt |
Approx. Weight |
|
|
|
|
|
|
|
Wall Thickness |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9.5mm |
12.7mm |
|
|
|
|
|
|
|
|
|
|
O |
C |
Y |
X |
B |
A |
R |
r |
|
|
|
|
|
|
|
26" |
870.0 |
68.3 |
120.7 |
676.1 |
641.4 |
635.0 |
660.4 |
749.3 |
9.7 |
806.5 |
24 |
35.1 |
1 1/4 |
136.1 |
|
28" |
927.1 |
71.4 |
125.5 |
726.9 |
692.2 |
685.8 |
711.2 |
800.1 |
11.2 |
863.6 |
28 |
35.1 |
1 1/4 |
156.5 |
|
30" |
984.3 |
74.7 |
136.7 |
781.1 |
743.0 |
736.6 |
762.0 |
857.3 |
11.2 |
914.4 |
28 |
35.1 |
1 1/4 |
181.4 |
|
32" |
1060.5 |
81.0 |
144.5 |
831.9 |
793.8 |
787.4 |
812.8 |
914.4 |
11.2 |
977.9 |
28 |
41.1 |
1 1/2 |
229.1 |
|
34" |
1111.3 |
82.6 |
149.4 |
882.7 |
844.6 |
838.2 |
863.6 |
965.2 |
12.7 |
1028.7 |
32 |
41.1 |
1 1/2 |
244.9 |
|
36" |
1168.4 |
90.4 |
157.2 |
933.5 |
895.4 |
889.0 |
914.4 |
1022.4 |
12.7 |
1085.9 |
32 |
41.1 |
1 1/2 |
290.3 |
|
38" |
1238.3 |
87.4 |
157.2 |
990.6 |
946.2 |
939.8 |
965.2 |
1073.2 |
12.7 |
1149.4 |
32 |
41.1 |
1 1/2 |
326.6 |
|
40" |
1289.1 |
90.4 |
163.6 |
1041.4 |
997.0 |
990.6 |
1016.0 |
1124.0 |
12.7 |
1200.2 |
36 |
41.1 |
1 1/2 |
351.5 |
|
42" |
1346.2 |
96.8 |
171.5 |
1092.2 |
1047.8 |
1041.4 |
1066.8 |
1193.8 |
12.7 |
1257.3 |
36 |
41.1 |
1 1/2 |
403.7 |
|
44" |
1403.4 |
101.6 |
177.8 |
1143.0 |
1098.6 |
1092.2 |
1117.6 |
1244.6 |
12.7 |
1314.5 |
40 |
41.1 |
1 1/2 |
449.1 |
|
46" |
1454.2 |
103.1 |
185.7 |
1196.8 |
1149.4 |
1143.0 |
1168.4 |
1295.4 |
12.7 |
1365.3 |
40 |
41.1 |
1 1/2 |
480.8 |
|
48" |
1511.3 |
108.0 |
192.0 |
1247.6 |
1200.2 |
1193.8 |
1219.2 |
1358.9 |
12.7 |
1422.4 |
44 |
41.1 |
1 1/2 |
537.5 |
|
50" |
1568.5 |
111.3 |
203.2 |
1301.8 |
1251.0 |
1244.6 |
1270.0 |
1409.7 |
12.7 |
1479.6 |
44 |
47.8 |
1 3/4 |
576.1 |
|
52" |
1625.6 |
115.8 |
209.6 |
1352.6 |
1301.8 |
1295.4 |
1320.8 |
1460.5 |
12.7 |
1536.7 |
44 |
47.8 |
1 3/4 |
639.6 |
|
54" |
1682.8 |
120.7 |
215.9 |
1403.4 |
1352.6 |
1346.2 |
1371.6 |
1511.3 |
12.7 |
1593.9 |
44 |
47.8 |
1 3/4 |
719.0 |
|
56" |
1746.3 |
124.0 |
228.6 |
1457.5 |
1403.4 |
1397.0 |
1422.4 |
1574.8 |
12.7 |
1651.0 |
48 |
47.8 |
1 3/4 |
798.3 |
|
58" |
1803.4 |
128.5 |
235.0 |
1508.3 |
1454.2 |
1477.8 |
1473.2 |
1625.6 |
12.7 |
1708.2 |
48 |
47.8 |
1 3/4 |
868.6 |
|
60" |
1854.2 |
131.8 |
239.8 |
1559.1 |
1505.0 |
1498.6 |
1524.0 |
1676.4 |
12.7 |
1759.0 |
52 |
47.8 |
1 3/4 |
927.6 |
Notes:
Raised Face height(f)will be furnished with 1.6mm and,which is included in Thickness(C)and Length Through Hub (Y).
