BS4504 Blind Flange
BS 4504 Blind Flange Class 2500
Standard: BS4504
Flange type: blind flange
Size range: 1/2"-24"
Pressure: Class 2500
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: BS4504
Flange type: blind flange
Size range: 1/2"-24"
Pressure class: Class 2500
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: BS4504
Flange type: blind flange
Size range: 1/2"-24"
Pressure class: Class 2500
Material : Stainless steel , Alloy Steel , Carbon Steel
|

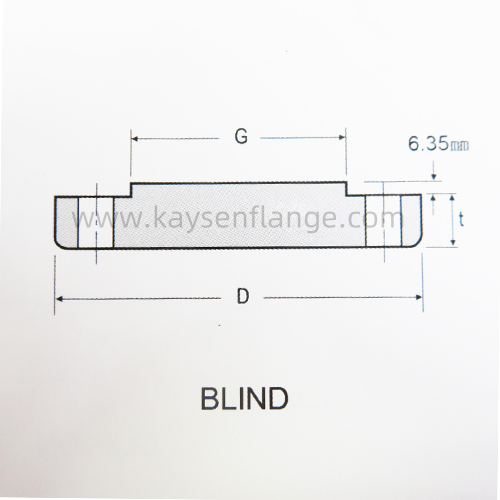

Nominal Pipe Size |
Outside Diam |
Diam.at Base of Hub |
O.D of Raised Face |
Thick-ness |
BORE |
|
LENGTH THRU HUB |
Diam.of Hub at Bevel |
Radius of Fillet |
Threaded Length |
||||
|
Welding Neck Socket Welding |
Slip-on Socket Welding |
Lap Joint |
Counter Bore Min.Threaded Min |
Welding Neck |
Slip-on Threaded Socket welding |
Lap Joint |
||||||||
|
D |
X |
G |
t |
B1 |
B2 |
B3 |
B |
T1 |
T2 |
T3 |
A |
R |
Q |
|
|
1/2" |
133.4 |
42.9 |
35.1 |
30.2 |
To be specified by purchaser |
22.4 |
22.9 |
23.6 |
73.2 |
39.6 |
39.6 |
21.3 |
3.0 |
28.4 |
|
3/4" |
139.7 |
50.8 |
42.9 |
31.8 |
27.7 |
28.2 |
29.0 |
79.2 |
42.9 |
42.9 |
26.7 |
3.0 |
31.8 |
|
|
1" |
158.8 |
57.2 |
50.8 |
35.1 |
34.5 |
35.1 |
35.8 |
88.9 |
47.8 |
47.8 |
33.5 |
3.0 |
35.1 |
|
|
1 1/4" |
184.2 |
73.2 |
63.5 |
38.1 |
43.2 |
43.7 |
44.5 |
95.3 |
52.3 |
52.3 |
42.2 |
4.8 |
38.1 |
|
|
1 1/2" |
203.2 |
79.2 |
73.2 |
44.5 |
49.5 |
50.0 |
50.5 |
111.3 |
60.5 |
60.5 |
48.3 |
6.4 |
44.5 |
|
|
2" |
235.0 |
95.3 |
91.9 |
50.8 |
62.0 |
62.5 |
63.5 |
127.0 |
69.9 |
69.9 |
60.5 |
7.9 |
50.8 |
|
|
2 1/2" |
266.7 |
114.3 |
104.6 |
57.2 |
74.7 |
75.4 |
76.2 |
142.7 |
79.2 |
79.2 |
73.2 |
7.9 |
57.2 |
|
|
3" |
304.8 |
133.4 |
127.0 |
66.5 |
90.7 |
91.4 |
92.2 |
168.1 |
91.9 |
91.9 |
88.9 |
9.7 |
63.5 |
|
|
4" |
355.6 |
165.1 |
157.2 |
76.2 |
116.1 |
116.8 |
117.6 |
190.5 |
108.0 |
108.0 |
114.3 |
11.2 |
69.9 |
|
|
5" |
419.1 |
203.2 |
185.7 |
91.9 |
143.8 |
144.5 |
144.5 |
228.6 |
130.0 |
130.0 |
141.2 |
11.2 |
76.2 |
|
|
6" |
482.6 |
235.0 |
215.9 |
108.0 |
170.7 |
171.5 |
171.5 |
273.1 |
152.4 |
152.4 |
168.4 |
12.7 |
82.6 |
|
|
8" |
552.5 |
304.8 |
269.7 |
127.0 |
221.5 |
222.3 |
222.3 |
317.5 |
177.8 |
177.8 |
219.2 |
12.7 |
95.3 |
|
|
10" |
673.1 |
374.7 |
323.9 |
165.1 |
276.4 |
277.4 |
276.4 |
419.1 |
228.6 |
228.6 |
273.1 |
12.7 |
108.0 |
|
|
12" |
762.0 |
441.5 |
381.0 |
184.2 |
327.2 |
328.2 |
328.7 |
463.6 |
254.0 |
254.0 |
232.9 |
12.7 |
120.7 |
|
