DIN Plate Flanges (Slip On Flanges)
 PN10.jpg)
DIN 2576 Flat Flange For Welding (Slip On) PN10
Standard: DIN 2576
Flange type: Flat Flange For Welding (Slip On)
Size range: DN15-DN500
Pressure: PN10, 10BAR
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: DIN 2576
Flange type: plate flange, slip on flange(flat face without neck)
Size range: DN15-DN500
Pressure class: PN10
Connection type: Flat face
Process: Forged or Stamped
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc
Standard: DIN 2576
Flange type: plate flange, slip on flange(flat face without neck)
Size range: DN15-DN500
Pressure class: PN10
Connection type: Flat face

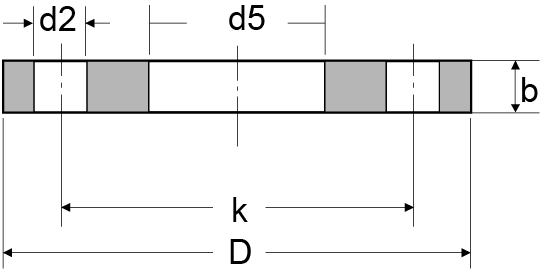

.gif)
|
DN |
ISO |
DIN |
d5 |
D |
b |
k |
No. of Holes |
d2 |
KG |
|
10 |
- |
14 |
14.50 |
90 |
14 |
60 |
4 |
14 |
0.61 |
|
|
17.2 |
- |
17.70 |
90 |
14 |
60 |
4 |
14 |
0.60 |
|
15 |
- |
20 |
21.00 |
95 |
14 |
65 |
4 |
14 |
0.67 |
|
|
21.3 |
- |
22.00 |
95 |
14 |
65 |
4 |
14 |
0.67 |
|
20 |
- |
25 |
26.00 |
105 |
16 |
75 |
4 |
14 |
0.94 |
|
|
26.9 |
- |
27.60 |
105 |
16 |
75 |
4 |
14 |
0.94 |
|
25 |
- |
30 |
31.00 |
115 |
16 |
85 |
4 |
14 |
1.13 |
|
|
33.7 |
- |
34.40 |
115 |
16 |
85 |
4 |
14 |
1.11 |
|
32 |
- |
38 |
39.00 |
140 |
16 |
100 |
4 |
18 |
1.66 |
|
|
42.4 |
- |
43.10 |
140 |
16 |
100 |
4 |
18 |
1.62 |
|
40 |
- |
44.5 |
45.50 |
150 |
16 |
110 |
4 |
18 |
1.89 |
|
|
48.3 |
- |
49.00 |
150 |
16 |
110 |
4 |
18 |
1.85 |
|
50 |
- |
57 |
58.10 |
165 |
18 |
125 |
4 |
18 |
2.50 |
|
|
60.3 |
- |
61.10 |
165 |
18 |
125 |
4 |
18 |
2.46 |
|
65 |
76.1 |
- |
77.10 |
185 |
18 |
145 |
4 |
18 |
2.99 |
|
80 |
88.9 |
- |
90.30 |
200 |
20 |
160 |
8 |
18 |
3.61 |
|
100 |
- |
108 |
109.60 |
220 |
20 |
180 |
8 |
18 |
4.17 |
|
|
114.3 |
- |
115.90 |
220 |
20 |
180 |
8 |
18 |
3.99 |
|
125 |
- |
133 |
134.80 |
250 |
22 |
210 |
8 |
18 |
5.66 |
|
|
139.7 |
- |
141.60 |
250 |
22 |
210 |
8 |
18 |
5.41 |
|
150 |
- |
159 |
161.10 |
285 |
22 |
240 |
8 |
22 |
6.97 |
|
|
168.3 |
- |
170.50 |
285 |
22 |
240 |
8 |
22 |
6.55 |
|
175 |
193.7 |
- |
196.10 |
315 |
24 |
270 |
8 |
22 |
8.42 |
|
200 |
219.1 |
- |
221.80 |
340 |
24 |
295 |
8 |
22 |
9.28 |
|
250 |
- |
267 |
270.20 |
395 |
26 |
350 |
12 |
22 |
12.36 |
|
|
273 |
- |
276.20 |
395 |
26 |
350 |
12 |
22 |
11.85 |
|
300 |
323.9 |
- |
327.60 |
445 |
26 |
400 |
12 |
22 |
13.61 |
|
350 |
355.6 |
- |
359.70 |
505 |
28 |
460 |
16 |
22 |
20.35 |
|
|
- |
368 |
372.20 |
505 |
28 |
460 |
16 |
22 |
18.77 |
|
400 |
406.4 |
- |
411.00 |
565 |
32 |
515 |
18 |
26 |
27.52 |
|
|
- |
419 |
423.70 |
565 |
32 |
515 |
18 |
26 |
35.43 |
|
450 |
457 |
- |
462.30 |
615 |
38 |
565 |
20 |
26 |
35.11 |
|
500 |
508 |
- |
613.60 |
670 |
38 |
620 |
20 |
26 |
40.20 |
|
600 |
610 |
- |
615.50 |
780 |
40 |
725 |
20 |
26 |
51.87 |
