DIN Slip On Hub Flange
DIN 86030 Hubbed Slip-on Flange For Welding PN1
Standard: DIN 86030
Flange type: Hubbed Slip-on Flange For Welding
Size range: DN10-DN1000
Pressure: PN16
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: DIN 86030
Flange type: Hubbed Slip-on Flange For Welding
Size range: DN10-DN1000
Pressure class: PN16
Connection type: Flat face
Process: Forged or Stamped
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc
Standard: DIN 86030
Flange type: Hubbed Slip-on Flange For Welding
Size range: DN10-DN1000
Pressure class: PN16
Process: Forged or Stamped
|

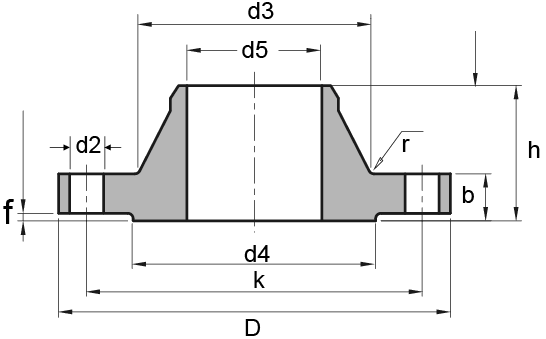

Rated Diameter |
O.D. of Pipe |
Flange Parameter |
Neck Size |
Size of R.F. |
Bolts |
Approx. Weight |
|||||||
|
DN |
d1 |
D |
d5 |
b |
k |
h |
d3 |
r |
d4 |
r |
No. |
d2 |
KG |
|
10 |
17.2 |
90 |
17.7 |
14 |
60 |
20 |
30 |
4 |
40 |
2 |
4 |
14 |
0.56 |
|
15 |
21.3 |
95 |
22 |
14 |
65 |
20 |
35 |
4 |
45 |
2 |
4 |
14 |
0.62 |
|
20 |
26.9 |
105 |
27.6 |
16 |
75 |
24 |
45 |
4 |
58 |
2 |
4 |
14 |
0.91 |
|
25 |
33.7 |
115 |
34.4 |
16 |
85 |
24 |
52 |
5 |
68 |
2 |
4 |
14 |
1.09 |
|
32 |
42.4 |
140 |
43.1 |
16 |
100 |
26 |
60 |
5 |
78 |
2 |
4 |
18 |
1.58 |
|
40 |
48.3 |
150 |
49 |
16 |
110 |
26 |
70 |
5 |
88 |
3 |
4 |
18 |
1.76 |
|
50 |
60.3 |
165 |
61.1 |
18 |
125 |
28 |
85 |
5 |
102 |
3 |
4 |
18 |
2.39 |
|
65 |
76.1 |
185 |
77.1 |
18 |
145 |
32 |
105 |
5 |
122 |
3 |
4 |
18 |
3.1 |
|
80 |
88.9 |
200 |
90.3 |
20 |
160 |
34 |
118 |
5 |
138 |
3 |
8 |
18 |
3.77 |
|
100 |
114.3 |
220 |
115.9 |
20 |
180 |
38 |
140 |
5 |
158 |
3 |
8 |
18 |
4.29 |
|
125 |
139.7 |
250 |
141.6 |
22 |
210 |
40 |
168 |
5 |
188 |
3 |
8 |
18 |
5.86 |
|
150 |
168.3 |
285 |
170.5 |
22 |
240 |
44 |
196 |
5 |
212 |
3 |
8 |
22 |
7.22 |
|
175 |
193.7 |
315 |
196.1 |
24 |
270 |
44 |
224 |
6 |
242 |
3 |
8 |
22 |
9.18 |
|
200 |
219.4 |
340 |
222 |
24 |
295 |
44 |
247 |
6 |
268 |
3 |
12 |
22 |
9.7 |
|
250 |
273 |
405 |
276 |
26 |
355 |
46 |
300 |
6 |
320 |
3 |
12 |
26 |
13.5 |
|
300 |
323.9 |
460 |
327 |
28 |
410 |
46 |
355 |
6 |
378 |
4 |
12 |
26 |
17.29 |
|
350 |
355.6 |
520 |
359 |
30 |
470 |
57 |
400 |
10 |
438 |
4 |
16 |
26 |
27.68 |
|
400 |
406.4 |
580 |
410 |
32 |
525 |
63 |
457 |
10 |
490 |
4 |
16 |
30 |
36.13 |
|
450 |
457 |
640 |
461 |
34 |
585 |
68 |
505 |
10 |
550 |
4 |
20 |
30 |
44.25 |
|
500 |
508 |
715 |
512 |
34 |
650 |
73 |
559 |
10 |
610 |
4 |
20 |
33 |
56.88 |
|
600 |
610 |
840 |
614 |
36 |
770 |
83 |
664 |
10 |
725 |
5 |
20 |
36 |
80.95 |
|
700 |
711 |
910 |
716 |
36 |
840 |
83 |
760 |
10 |
795 |
5 |
24 |
36 |
76.84 |
|
800 |
813 |
1025 |
818 |
38 |
950 |
90 |
864 |
10 |
900 |
5 |
24 |
39 |
99.34 |
|
900 |
914 |
1125 |
920 |
40 |
1050 |
94 |
969 |
10 |
1000 |
5 |
28 |
39 |
116.6 |
|
1000 |
1016 |
1255 |
1022 |
42 |
1170 |
100 |
1073 |
10 |
1115 |
|
28 |
42 |
154.1 |
