DIN Threaded Flange
DIN 2565 threaded flanges PN6
Standard: DIN2565
Flange type: Threaded flange
Size range: DN15-DN150
Pressure: PN6
Material: Stainless steel , Alloy Steel , Carbon Steel
|
Standard: DIN2565
|
||||||||||||||||||||||
|
Flange type: threaded flange
|
||||||||||||||||||||||
|
Size range: DN15-DN150
|
||||||||||||||||||||||
|
Pressure class: PN6
|
||||||||||||||||||||||
|
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
|
||||||||||||||||||||||
|
Specialize: As per drawing
|
||||||||||||||||||||||
|
Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stainless Steel Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Duplex stainless steel UNS S32304,S31803,S32205.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Carbon Steel Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Alloy Steel Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ASTM A 182, GR F1,F5, F9, F11, F22, F91
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Copper&Nickel Alloy Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CU/NI 90/10, CU/NI 70/30
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Nickel Alloy Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
|
||||||||||||||||||||||
|
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
|
||||||||||||||||||||||
Standard: DIN
Flange type: threaded flange
Size range: DN15-DN150
Pressure class: PN6
Material : Stainless steel , Alloy Steel , Carbon Steel
|

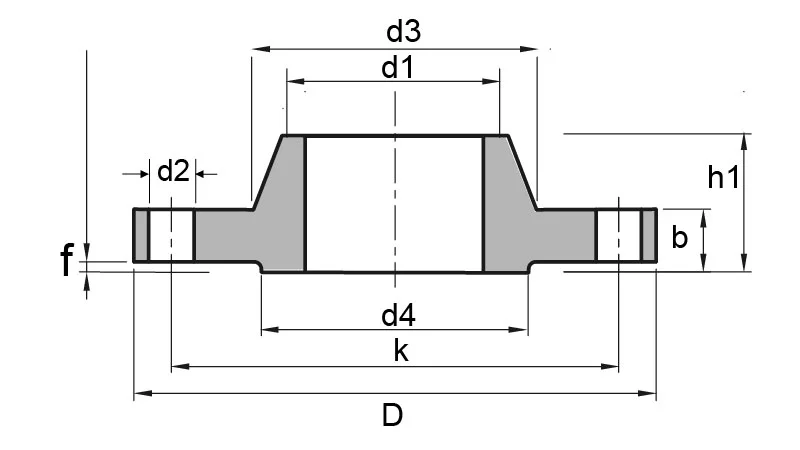

Rated Diameter |
O.D. Of Pipe |
Flange Dimension |
Neck Size |
Parameter of R.F. |
Screws Dimension |
Approx. Flange Weight |
||||||
|
DN |
d1 |
DIN 2999 |
D |
b |
k |
h1 |
d3 |
d4 |
f |
No.of holes |
d2 |
KG/PCS |
|
6 |
10.2 |
R1/8 |
65 |
10 |
40 |
18 |
18 |
25 |
2 |
4 |
11.5 |
0.19 |
|
8 |
13.5 |
R1/4 |
70 |
10 |
45 |
18 |
22 |
30 |
2 |
4 |
11.5 |
0.23 |
|
10 |
17.2 |
R3/8 |
75 |
12 |
50 |
20 |
25 |
35 |
2 |
4 |
11.5 |
0.32 |
|
15 |
21.3 |
R1/2 |
80 |
12 |
55 |
20 |
30 |
40 |
2 |
4 |
11.5 |
0.37 |
|
20 |
26.9 |
R3/4 |
90 |
14 |
65 |
24 |
40 |
50 |
2 |
4 |
11.5 |
0.58 |
|
25 |
33.7 |
R1 |
100 |
14 |
75 |
24 |
50 |
60 |
2 |
4 |
11.5 |
0.73 |
|
32 |
42.4 |
R1.1/4 |
120 |
14 |
90 |
26 |
60 |
70 |
2 |
4 |
14 |
1.05 |
|
40 |
48.3 |
R1.1/2 |
130 |
14 |
100 |
26 |
70 |
80 |
3 |
4 |
14 |
1.2 |
|
50 |
50.3 |
R2 |
140 |
14 |
110 |
28 |
80 |
90 |
3 |
4 |
14 |
1.54 |
|
65 |
76.1 |
R2.1/2 |
160 |
14 |
130 |
32 |
100 |
110 |
3 |
4 |
14 |
1.87 |
|
80 |
88.9 |
R3 |
190 |
16 |
150 |
34 |
110 |
128 |
3 |
4 |
18 |
2.78 |
|
100 |
114.3 |
R4 |
210 |
16 |
170 |
38 |
130 |
148 |
3 |
4 |
18 |
3.07 |
|
150 |
139.7 |
R5 |
240 |
18 |
200 |
40 |
160 |
178 |
3 |
8 |
18 |
4.33 |
|
200 |
168.3 |
R6 |
285 |
18 |
225 |
44 |
185 |
202 |
3 |
8 |
18 |
4.81 |
