DIN Threaded Flange
DIN 2567 threaded flanges,Screwed flange PN25,PN40
Standard: DIN2567
Flange type: Threaded flange
Size range: DN15-DN150
Pressure: PN25,PN40
Material: Stainless steel , Alloy Steel , Carbon Steel
|
Standard: DIN2567
|
||||||||||||||||||||||
|
Flange type: threaded flange
|
||||||||||||||||||||||
|
Size range: DN15-DN150
|
||||||||||||||||||||||
|
Pressure class: PN25-40
|
||||||||||||||||||||||
|
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
|
||||||||||||||||||||||
|
Specialize: As per drawing
|
||||||||||||||||||||||
|
Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stainless Steel Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Duplex stainless steel UNS S32304,S31803,S32205.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Carbon Steel Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Alloy Steel Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ASTM A 182, GR F1,F5, F9, F11, F22, F91
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Copper&Nickel Alloy Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CU/NI 90/10, CU/NI 70/30
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Nickel Alloy Material:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
|
||||||||||||||||||||||
|
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
|
||||||||||||||||||||||
Standard: DIN 2567
Flange type: threaded flange
Size range: DN15-DN150
Pressure class: PN25,pn40
Material : Stainless steel , Alloy Steel , Carbon Steel
|

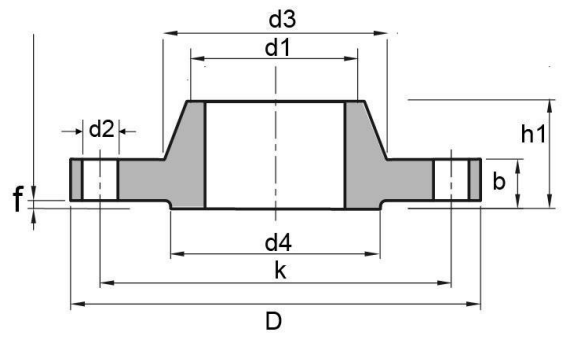

Rated |
O.D.Of |
Flange Dimension |
Neck |
Parameter |
Screws |
Approx. |
||||||
|
DN |
d1 |
DIN |
D |
|
k |
h1 |
d3 |
d4 |
|
No.of |
d2 |
KG/PCS |
|
6 |
10.2 |
R1/8 |
75 |
14 |
50 |
20 |
20 |
32 |
2 |
4 |
11 |
0.388 |
|
8 |
13.5 |
R1/4 |
80 |
14 |
55 |
20 |
25 |
38 |
2 |
4 |
11 |
0.45 |
|
10 |
17.2 |
R3/8 |
90 |
16 |
60 |
22 |
30 |
40 |
2 |
4 |
14 |
0.63 |
|
15 |
21.3 |
R1/2 |
95 |
16 |
65 |
22 |
35 |
45 |
2 |
4 |
14 |
0.71 |
|
20 |
26.9 |
R3/4 |
105 |
18 |
75 |
26 |
45 |
58 |
2 |
4 |
14 |
1.03 |
|
25 |
33.7 |
R1 |
115 |
18 |
85 |
28 |
52 |
68 |
2 |
4 |
14 |
1.28 |
|
32 |
42.4 |
R1.1/4 |
140 |
18 |
100 |
30 |
60 |
78 |
2 |
4 |
18 |
1.87 |
|
40 |
48.3 |
R1.1/2 |
150 |
18 |
110 |
32 |
70 |
88 |
3 |
4 |
18 |
2.14 |
|
50 |
60.3 |
R2 |
165 |
20 |
125 |
34 |
85 |
102 |
3 |
4 |
18 |
2.85 |
|
65 |
76.1 |
R2.1/2 |
185 |
22 |
145 |
38 |
105 |
122 |
3 |
8 |
18 |
3.85 |
|
80 |
88.9 |
R3 |
200 |
24 |
160 |
40 |
118 |
138 |
3 |
8 |
18 |
4.8 |
|
100 |
114.3 |
R4 |
235 |
24 |
190 |
44 |
145 |
162 |
3 |
8 |
22 |
6.43 |
|
125 |
139.7 |
R5 |
270 |
26 |
220 |
48 |
170 |
188 |
3 |
8 |
26 |
8.77 |
|
150 |
165.1 |
R6 |
300 |
28 |
250 |
52 |
200 |
218 |
3 |
8 |
26 |
10.5 |
