EN 1092-1 TYPE 01 Plate Flange
EN 1092-1 plate flange type 01 PN25
Standard: EN 1092-1
Flange type: plate flange
Size range: DN15-DN800
Pressure: PN25
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: EN 1092-1
Flange type: plate flange
Size range: DN15-DN800
Pressure class: PN25
Face type: Flate Face(FF), Raised Face(RF), Ring Type Joint (RTJ).
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: EN 1092-1
Flange type: plate flange
Size range: DN15-DN800
Pressure class: PN25
Material : Stainless steel , Alloy Steel , Carbon Steel
| EN 1092-1 TYPE 01 PN25 PLATE FLANGE | |||||||||
| Rated | Pipe | Flange | Screws | Weight | |||||
| Diameter | (7,85 Kg/dm3) | ||||||||

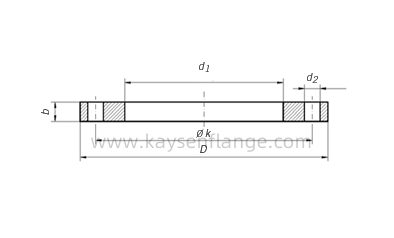

| d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
| 15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
| 20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
| 25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
| 32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
| 40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
| 50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
| 65 | 76,1 | 77,5 | 145 | 185 | 22 | 18 | M16 | 8 | 3,465 |
| 80 | 88,9 | 90,5 | 160 | 200 | 24 | 18 | M16 | 8 | 4,310 |
| 100 | 114,3 | 116,0 | 190 | 235 | 26 | 22 | M20 | 8 | 6,056 |
| 125 | 139,7 | 141,5 | 220 | 270 | 28 | 26 | M24 | 8 | 8,170 |
| 150 | 168,3 | 170,5 | 250 | 300 | 30 | 26 | M24 | 8 | 10,238 |
| 200 | 219,1 | 221,5 | 310 | 360 | 32 | 26 | M24 | 12 | 14,245 |
| 250 | 273,0 | 276,5 | 370 | 425 | 35 | 30 | M27 | 12 | 20,087 |
| 300 | 323,9 | 327,5 | 430 | 485 | 38 | 30 | M27 | 16 | 26,526 |
| 350 | 355,6 | 359,5 | 490 | 555 | 42 | 33 | M30 | 16 | 41,656 |
| 400 | 406,4 | 411,0 | 550 | 620 | 48 | 36 | M33 | 16 | 57,456 |
| 450 | 457,0 | 462,0 | 600 | 670 | 54 | 36 | M33 | 20 | 69,548 |
| 500 | 508,0 | 513,5 | 660 | 730 | 58 | 36 | M33 | 20 | 86,736 |
| 600 | 610,0 | 616,5 | 770 | 845 | 68 | 39 | M36 | 20 | 126,866 |
| 700 | 711,2 | 714,0 | 875 | 960 | 85 | 42 | M39 | 24 | 193,031 |
| 800 | 812,8 | 816,0 | 990 | 1085 | 95 | 48 | M45 | 24 | 266,311 |
