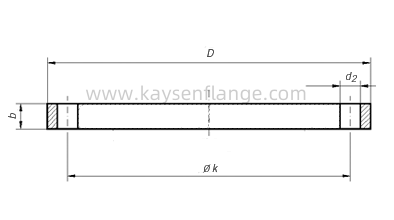

EN 1092-1 TYPE 05 Blind Flange
EN 1092-1 blind Flange TYPE 05 PN 6
Standard: EN 1092-1
Flange type: blind flange
Size range: DN15-DN2000
Pressure: PN6
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: EN 1092-1
Flange type: blind flange
Size range: DN15-DN2000
Pressure class: PN6
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: EN 1092-1
Flange type: blind flange
Size range: DN15-DN2000
Pressure class: PN6
Material : Stainless steel , Alloy Steel , Carbon Steel
| EN 1092-1 TYPE 05 PN6 BLIND FLANGE | |||||||
| Diameter | Flange | Screws | Weight | ||||
| (7,85 Kg/dm3) | |||||||
| k | D | b | d2 | Thread | Bolt holes | KG | |
| 15 | 55 | 80 | 12 | 11 | M10 | 4 | 0,438 |
| 20 | 65 | 90 | 14 | 11 | M10 | 4 | 0,657 |
| 25 | 75 | 100 | 14 | 11 | M10 | 4 | 0,821 |
| 32 | 90 | 120 | 14 | 14 | M12 | 4 | 1,180 |
| 40 | 100 | 130 | 14 | 14 | M12 | 4 | 1,390 |
| 50 | 110 | 140 | 14 | 14 | M12 | 4 | 1,620 |
| 65 | 130 | 160 | 14 | 14 | M12 | 4 | 2,140 |
| 80 | 150 | 190 | 16 | 18 | M16 | 4 | 3,430 |
| 100 | 170 | 210 | 16 | 18 | M16 | 4 | 4,220 |
| 125 | 200 | 240 | 18 | 18 | M16 | 8 | 6,100 |
| 150 | 225 | 265 | 18 | 18 | M16 | 8 | 7,510 |
| 200 | 280 | 320 | 20 | 18 | M16 | 8 | 12,300 |
| 250 | 335 | 375 | 22 | 18 | M16 | 12 | 18,500 |
| 300 | 395 | 440 | 22 | 22 | M20 | 12 | 25,500 |
| 350 | 445 | 490 | 22 | 22 | M20 | 12 | 31,800 |
| 400 | 495 | 540 | 22 | 22 | M20 | 16 | 38,500 |
| 450 | 550 | 595 | 24 | 22 | M20 | 16 | 51,200 |
| 500 | 600 | 645 | 24 | 22 | M20 | 20 | 60,100 |
| 600 | 705 | 755 | 30 | 26 | M24 | 20 | 103,000 |
| 700 | 810 | 860 | 40 | 26 | M24 | 24 | 178,000 |
| 800 | 920 | 975 | 44 | 30 | M27 | 24 | 252,000 |
| 900 | 1020 | 1075 | 48 | 30 | M27 | 24 | 336,000 |
| 1000 | 1120 | 1175 | 52 | 30 | M27 | 28 | 435,000 |
| 1200 | 1340 | 1405 | 60 | 33 | M30 | 32 | 717,000 |
| 1400 | 1560 | 1630 | 68 | 36 | M33 | 36 | 1.094,000 |
| 1600 | 1760 | 1830 | 76 | 36 | M33 | 40 | 1.545,000 |
| 1800 | 1970 | 2045 | 84 | 39 | M36 | 44 | 2.131,000 |
| 2000 | 2180 | 2265 | 92 | 42 | M39 | 48 | 2.862,000 |
