EN 1092-1 TYPE 05 Blind Flange
EN 1092-1 Blind Flange TYPE 05 PN16
Standard: EN 1092-1
Flange type: blind flange
Size range: DN15-DN1000
Pressure: PN16
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: EN 1092-1
Flange type: blind flange
Size range: DN15-DN1000
Pressure class: PN16
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: EN 1092-1
Flange type: blind flange
Size range: DN15-DN1000
Pressure class: PN16
Material : Stainless steel , Alloy Steel , Carbon Steel

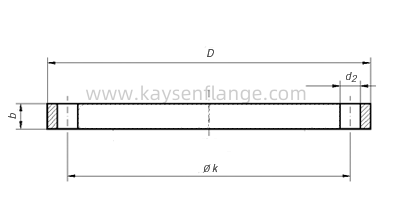

| EN1092-1 TYPE05 PN16 BLIND FLANGE | |||||||
| Diameter | Flange | Screws | Weight | ||||
| (7,85 Kg/dm3) | |||||||
| k | D | b | d2 | Thread | Bolt holes | KG | |
| 15 | 65 | 95 | 16 | 14 | M12 | 4 | 0,813 |
| 20 | 75 | 105 | 18 | 14 | M12 | 4 | 1,140 |
| 25 | 85 | 115 | 18 | 14 | M12 | 4 | 1,380 |
| 32 | 100 | 140 | 18 | 18 | M16 | 4 | 2,030 |
| 40 | 110 | 150 | 18 | 18 | M16 | 4 | 2,350 |
| 50 | 125 | 165 | 18 | 18 | M16 | 4 | 2,880 |
| 65 | 145 | 185 | 18 | 18 | M16 | 4 | 3,643 |
| 80 | 160 | 200 | 20 | 18 | M16 | 8 | 4,610 |
| 100 | 180 | 220 | 20 | 18 | M16 | 8 | 5,650 |
| 125 | 210 | 250 | 22 | 18 | M16 | 8 | 8,130 |
| 150 | 240 | 285 | 22 | 22 | M20 | 8 | 10,500 |
| 200 | 295 | 340 | 24 | 22 | M20 | 12 | 16,200 |
| 250 | 355 | 405 | 26 | 26 | M24 | 12 | 25,000 |
| 300 | 410 | 460 | 28 | 26 | M24 | 12 | 35,100 |
| 350 | 470 | 520 | 30 | 26 | M24 | 16 | 48,000 |
| 400 | 525 | 580 | 32 | 30 | M27 | 16 | 63,500 |
| 450 | 585 | 640 | 40 | 30 | M27 | 20 | 96,600 |
| 500 | 650 | 715 | 44 | 33 | M30 | 20 | 133,000 |
| 600 | 770 | 840 | 54 | 36 | M33 | 20 | 226,000 |
| 700 | 840 | 910 | 58 | 36 | M33 | 24 | 285,000 |
| 800 | 950 | 1025 | 62 | 39 | M36 | 24 | 388,000 |
| 900 | 1050 | 1125 | 64 | 39 | M36 | 28 | 483,000 |
| 1000 | 1170 | 1255 | 68 | 42 | M39 | 28 | 640,000 |
