EN 1092-1 TYPE 11 Weld Neck Flange

EN 1092-1 Weld Neck flange type 11 PN6
EN 1092-1 Weld Neck flange type 11 PN6

EN 1092-1 Weld Neck flange type 11 PN6

Standard: EN 1092-1

Flange type: weld neck flange

Size range: DN15-DN3600

Pressure: PN6

Material: Stainless steel , Alloy Steel , Carbon Steel

Send Inquiry

Standard:   EN 1092-1
Flange type:     weld neck flange
Size range:   DN15-DN3600
Pressure class:  PN6
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize:   As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS  S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22,  F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment:  Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage:  Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.


Standard:  EN 1092-1
Flange type:    weld neck flange
Size range:  DN15-DN3600
Pressure class:  PN6
Material : Stainless steel , Alloy Steel , Carbon Steel

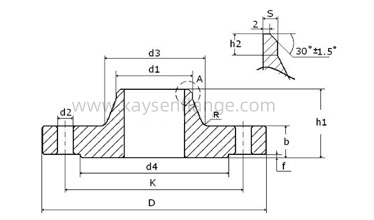

EN 1092-1 TYPE 11 PN6 WNRF FLANGE

Rated Diameter

Flange

Neck

Raised face

Screws

Weight

(7,85 Kg/dm3)

d1

k

D

b

h1

d3

s

r

h2

d4

f

d2

Thread

Bolt holes

Kg

15

21,3

55

80

12

30

30

2,00

4

6

40

2

11

M10

4

0,408

20

26,9

65

90

14

32

38

2,30

4

6

50

2

11

M10

4

0,621

25

33,7

75

100

14

35

42

2,60

4

6

60

2

11

M10

4

0,762

32

42,4

90

120

14

35

55

2,60

6

6

70

2

14

M12

4

1,110

40

48,3

100

130

14

38

62

2,60

6

7

80

3

14

M12

4

1,260

50

60,3

110

140

14

38

74

2,90

6

8

90

3

14

M12

4

1,430

65

76,1

130

160

14

38

88

2,90

6

9

110

3

14

M12

4

1,770

80

88,9

150

190

16

42

102

3,20

8

10

128

3

18

M16

4

2,880

100

114,3

170

210

16

45

130

3,60

8

10

148

3

18

M16

4

3,410

125

139,7

200

240

18

48

155

4,00

8

10

178

3

18

M16

8

4,650

150

168,3

225

265

18

48

184

4,50

10

12

202

3

18

M16

8

5,500

200

219,1

280

320

20

55

236

6,30

10

15

258

3

18

M16

8

8,600

250

273,0

335

375

22

60

290

6,30

12

15

312

3

18

M16

12

11,700

300

323,9

395

440

22

62

342

7,10

12

15

365

4

22

M20

12

15,300

350

355,6

445

490

22

62

385

7,10

12

15

415

4

22

M20

12

20,300

400

406,4

495

540

22

65

438

7,10

12

15

465

4

22

M20

16

23,100

450

457,0

550

595

22

65

492

7,10

12

15

520

4

22

M20

16

27,000

500

508,0

600

645

24

68

538

7,10

12

15

570

4

22

M20

20

30,800

600

610,0

705

755

30

70

640

7,10

12

16

670

5

26

M24

20

44,000

700

711,0

810

860

30

76

740

8,00

12

16

775

5

26

M24

24

53,700

800

813,0

920

975

30

76

842

8,00

12

16

880

5

30

M27

24

64,400

900

914,0

1020

1075

34

78

942

8,00

12

16

980

5

30

M27

24

79,200

1000

1016,0

1120

1175

38

82

1045

8,00

16

16

1080

5

30

M27

28

98,600

1200

1219,0

1340

1405

42

104

1248

8,80

16

20

1295

5

33

M30

32

152,000

1400

1422,0

1560

1630

56

114

1452

8,80

16

20

1510

5

36

M33

36

246,000

1600

1626,0

1760

1830

63

119

1655

10,00

16

20

1710

5

36

M33

40

309,000

1800

1829,0

1970

2045

69

133

1855

11,00

16

20

1920

5

39

M36

44

400,000

2000

2032,0

2180

2265

74

146

2058

12,50

16

25

2125

5

42

M39

48

516,000

2200

2235,0

2390

2475

81

154

2260

14,00

18

25

2335

5

42

M39

52

645,000

2400

2438,0

2600

2685

87

168

2462

15,00

18

25

2545

5

42

M39

56

786,000

2600

2620,0

2810

2905

91

175

2665

16,00

18

25

2750

5

48

M45

60

1.021,000

2800

2820,0

3020

3115

101

188

2865

17,00

18

30

2960

5

48

M45

64

1.256,000

3000

3020,0

3220

3315

102

192

3068

20,00

18

30

3160

5

48

M45

68

1.404,000

3200

3220,0

3430

3525

106

202

3272

20,00

20

30

3370

5

48

M45

72

1.617,000

3400

3420,0

3640

3735

110

214

3475

22,00

20

35

3580

5

48

M45

76

1.877,000

3600

3620,0

3860

3970

124

229

3678

22,00

20

35

3790

5

56

M52

80

2.366,000
