EN 1092-1 TYPE 11 Weld Neck Flange
EN 1092-1 Weld Neck flange type11 PN10
Standard: EN 1092-1
Flange type: weld neck flange
Size range: DN200-DN3000
Pressure: PN10
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: EN 1092-1
Flange type: weld neck flange
Size range: DN200-DN3000
Pressure class: PN10
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: EN 1092-1
Flange type: weld neck flange
Size range: DN200-DN3000
Pressure class: PN10
Material : Stainless steel , Alloy Steel , Carbon Steel
|

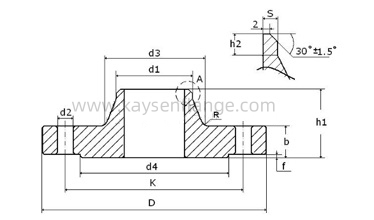

EN 1092-1 TYPE 11 PN10 WNRF FLANGE |
|||||||||||||||
|
Rated Diameter |
Flange |
Neck |
Raised face |
Screws |
Weight |
||||||||||
|
(7,85 Kg/dm3) |
|||||||||||||||
|
d1 |
k |
D |
b |
h1 |
d3 |
s |
r |
h2 |
d4 |
f |
d2 |
Thread |
Bolt holes |
Kg |
|
|
200 |
219,1 |
295 |
340 |
24 |
62 |
234 |
6,30 |
10 |
16 |
268 |
3 |
22 |
M20 |
8 |
11,600 |
|
250 |
273,0 |
350 |
395 |
26 |
68 |
292 |
6,30 |
12 |
16 |
320 |
3 |
22 |
M20 |
12 |
15,800 |
|
300 |
323,9 |
400 |
445 |
26 |
68 |
342 |
7,10 |
12 |
16 |
370 |
4 |
22 |
M20 |
12 |
18,300 |
|
350 |
355,6 |
460 |
505 |
26 |
68 |
385 |
7,10 |
12 |
16 |
430 |
4 |
22 |
M20 |
16 |
25,300 |
|
400 |
406,4 |
515 |
565 |
26 |
72 |
440 |
7,10 |
12 |
16 |
482 |
4 |
26 |
M24 |
16 |
30,600 |
|
450 |
457,0 |
565 |
615 |
28 |
72 |
488 |
7,10 |
12 |
16 |
532 |
4 |
26 |
M24 |
20 |
35,100 |
|
500 |
508,0 |
620 |
670 |
28 |
75 |
542 |
7,10 |
12 |
16 |
585 |
4 |
26 |
M24 |
20 |
40,500 |
|
600 |
610,0 |
725 |
780 |
30 |
82 |
642 |
8,00 |
12 |
18 |
685 |
5 |
30 |
M27 |
20 |
52,900 |
|
700 |
711,0 |
840 |
895 |
35 |
85 |
746 |
8,80 |
12 |
18 |
800 |
5 |
30 |
M27 |
24 |
75,800 |
|
800 |
813,0 |
950 |
1015 |
38 |
96 |
850 |
8,80 |
12 |
18 |
905 |
5 |
33 |
M30 |
24 |
102,000 |
|
900 |
914,0 |
1050 |
1115 |
38 |
99 |
950 |
12,50 |
12 |
20 |
1005 |
5 |
33 |
M30 |
28 |
121,000 |
|
1000 |
1016,0 |
1160 |
1230 |
44 |
105 |
1052 |
12,50 |
16 |
20 |
1110 |
5 |
36 |
M33 |
28 |
161,000 |
|
1200 |
1219,0 |
1380 |
1455 |
55 |
132 |
1256 |
12,50 |
16 |
25 |
1330 |
5 |
39 |
M36 |
32 |
258,000 |
|
1400 |
1422,0 |
1590 |
1675 |
65 |
143 |
1460 |
14,20 |
16 |
25 |
1535 |
5 |
42 |
M39 |
36 |
371,000 |
|
1600 |
1626,0 |
1820 |
1915 |
75 |
159 |
1666 |
16,00 |
16 |
25 |
1760 |
5 |
48 |
M45 |
40 |
547,000 |
|
1800 |
1829,0 |
2020 |
2115 |
85 |
175 |
1868 |
17,50 |
16 |
30 |
1960 |
5 |
48 |
M45 |
44 |
691,000 |
|
2000 |
2032,0 |
2230 |
2325 |
90 |
186 |
2072 |
17,50 |
16 |
30 |
2170 |
5 |
48 |
M45 |
48 |
830,000 |
|
2200 |
2235,0 |
2440 |
2550 |
100 |
202 |
2275 |
20,00 |
18 |
35 |
2370 |
5 |
56 |
M52 |
52 |
1.073,000 |
|
2400 |
2438,0 |
2650 |
2760 |
110 |
218 |
2478 |
22,20 |
18 |
35 |
2570 |
5 |
56 |
M52 |
56 |
1.329,000 |
|
2600 |
2620,0 |
2850 |
2960 |
110 |
224 |
2680 |
25,00 |
18 |
40 |
2780 |
5 |
56 |
M52 |
60 |
1.574,000 |
|
2800 |
2820,0 |
3070 |
3180 |
124 |
244 |
2882 |
25,00 |
18 |
40 |
3000 |
5 |
56 |
M52 |
64 |
1.987,000 |
|
3000 |
3020,0 |
3290 |
3405 |
132 |
257 |
3085 |
32,00 |
18 |
45 |
3210 |
5 |
62 |
M56 |
68 |
2.476,000 |
