EN 1092-1 TYPE 11 Weld Neck Flange
EN 1092-1 Weld Neck flange type 11 PN25
Standard: EN 1092-1
Flange type: weld neck flange
Size range: DN200-DN1000
Pressure: PN25
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: EN 1092-1
Flange type: weld neck flange
Size range: DN200-DN1000
Pressure class: PN25
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: EN 1092-1
Flange type: weld neck flange
Size range: DN200-DN1000
Pressure class: PN25
Material : Stainless steel , Alloy Steel , Carbon Steel
|

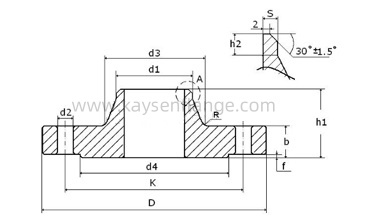

EN 1092-1 TYPE 11 PN25 WNRF FLANGE |
|||||||||||||||
|
Rated Diameter |
Flange |
Neck |
Raised face |
Screws |
Weight |
||||||||||
|
(7,85 Kg/dm3) |
|||||||||||||||
|
d1 |
k |
D |
b |
h1 |
d3 |
s |
r |
h2 |
d4 |
f |
d2 |
Thread |
Bolt holes |
Kg |
|
|
200 |
219,1 |
310 |
360 |
30 |
80 |
244 |
6,3 |
10 |
16 |
278 |
3 |
26 |
M24 |
12 |
17,100 |
|
250 |
273 |
370 |
425 |
32 |
88 |
298 |
7,1 |
12 |
18 |
335 |
3 |
30 |
M27 |
12 |
24,300 |
|
300 |
323,9 |
430 |
485 |
34 |
92 |
352 |
8,0 |
12 |
18 |
395 |
4 |
30 |
M27 |
16 |
31,800 |
|
350 |
355,6 |
490 |
555 |
38 |
100 |
398 |
8,0 |
12 |
20 |
450 |
4 |
33 |
M30 |
16 |
48,800 |
|
400 |
406,4 |
550 |
620 |
40 |
110 |
452 |
8,8 |
12 |
20 |
505 |
4 |
36 |
M33 |
16 |
63,300 |
|
450 |
457 |
600 |
670 |
46 |
110 |
500 |
8,8 |
12 |
20 |
550 |
4 |
36 |
M33 |
20 |
76,000 |
|
500 |
508 |
660 |
730 |
48 |
125 |
558 |
10,0 |
12 |
20 |
615 |
4 |
36 |
M33 |
20 |
97,000 |
|
600 |
610 |
770 |
845 |
48 |
125 |
660 |
11,0 |
12 |
20 |
720 |
5 |
39 |
M36 |
20 |
121,000 |
|
700 |
711 |
875 |
960 |
50 |
129 |
760 |
14,2 |
12 |
20 |
820 |
5 |
42 |
M39 |
24 |
155,000 |
|
800 |
813 |
990 |
1085 |
53 |
138 |
864 |
16,0 |
12 |
22 |
930 |
5 |
48 |
M45 |
24 |
205,000 |
|
900 |
914 |
1090 |
1185 |
57 |
148 |
968 |
17,5 |
12 |
24 |
1030 |
5 |
48 |
M45 |
28 |
249,000 |
|
1000 |
1016 |
1210 |
1320 |
63 |
160 |
1070 |
20,0 |
16 |
24 |
1140 |
5 |
56 |
M52 |
28 |
338,000 |
