EN 1092-1 TYPE 11 Weld Neck Flange

EN 1092-1  Weld Neck flange type 11 PN40
EN 1092-1  Weld Neck flange type 11 PN40

EN 1092-1 Weld Neck flange type 11 PN40

Standard: EN 1092-1

Flange type: weld neck flange

Size range: DN15-DN600

Pressure: PN40

Material: Stainless steel , Alloy Steel , Carbon Steel

Send Inquiry

Standard:   EN 1092-1
Flange type:     weld neck flange
Size range:   DN15-DN600
Pressure class:  PN40
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize:   As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS  S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22,  F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment:  Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage:  Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.


Standard:  EN 1092-1
Flange type:    weld neck flange
Size range:  DN15-DN600
Pressure class:  PN40
Material : Stainless steel , Alloy Steel , Carbon Steel

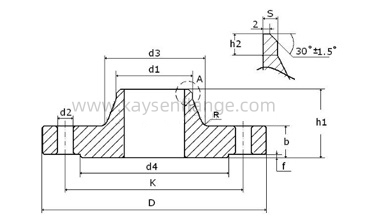

EN 1092-1 TYPE 11 PN40 WNRF FLANGE

Rated Diameter

Flange

Neck

Raised face

Screws

Weight

(7,85 Kg/dm3)

d1

k

D

b

h1

d3

s

r

h2

d4

f

d2

Thread

Bolt holes

Kg

15

21,3

65

95

16

38

32

2,00

4

6

45

2

14

M12

4

0,768

20

26,9

75

105

18

40

40

2,30

4

6

58

2

14

M12

4

1,090

25

33,7

85

115

18

40

46

2,60

4

6

68

2

14

M12

4

1,300

32

42,4

100

140

18

42

56

2,60

6

6

78

2

18

M16

4

1,910

40

48,3

110

150

18

45

64

2,60

6

7

88

3

18

M16

4

2,150

50

60,3

125

165

20

48

75

2,90

6

8

102

3

18

M16

4

2,850

65

76,1

145

185

22

52

90

2,90

6

10

122

3

18

M16

8

3,680

80

88,9

160

200

24

58

105

3,20

8

12

138

3

18

M16

8

4,780

100

114,3

190

235

24

65

134

3,60

8

12

162

3

22

M20

8

6,460

125

139,7

220

270

26

68

162

4,00

8

12

188

3

26

M24

8

8,860

150

168,3

250

300

28

75

192

4,50

10

12

218

3

26

M24

8

11,700

200

219,1

320

375

34

88

244

6,30

10

16

285

3

30

M27

12

21,000

250

273,0

385

450

38

105

306

7,10

12

18

345

3

33

M30

12

34,200

300

323,9

450

515

42

115

362

8,00

12

18

410

4

33

M30

16

47,600

350

355,6

510

580

46

125

408

8,80

12

20

465

4

36

M33

16

69,300

400

406,4

585

660

50

135

462

11,00

12

20

535

4

39

M36

16

98,000

450

457,0

610

685

57

135

500

12,50

12

20

560

4

39

M36

20

105,000

500

508,0

670

755

57

140

562

14,20

12

20

615

4

42

M39

20

130,000

600

610,0

795

890

72

150

666

16,00

12

20

735

5

48

M45

20

209,000
