EN 1092-1 TYPE 13 Threaded Flange
EN 1092-1 threaded flange type13 PN6
Standard: EN 1092-1
Flange type: threaded flange
Size range: DN15-DN150
Pressure: PN6
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: EN 1092-1
Flange type: threaded flange
Size range: DN15-DN150
Pressure class: PN6
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: EN 1092-1
Flange type: threaded flange
Size range: DN15-DN150
Pressure class: PN6
Material : Stainless steel , Alloy Steel , Carbon Steel
|

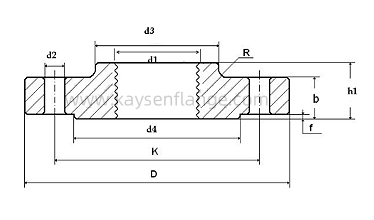

EN 1092-1 TYPE 13 PN6 THREADED FLANGE |
|||||||||||||
|
Rated Diameter |
Flange |
Neck |
Raised face |
Screws |
Weight |
||||||||
|
(7,85 Kg/dm3) |
|||||||||||||
|
d1 |
Thread |
k |
D |
b |
h1 |
d3 |
d4 |
f |
d2 |
Thread |
Bolt holes |
KG |
|
|
15 |
21,3 |
R 1/2" |
55 |
80 |
12 |
20 |
30,0 |
40,0 |
2,0 |
11 |
M10 |
4 |
0,373 |
|
20 |
26,9 |
R 3/4" |
65 |
90 |
14 |
24 |
40,0 |
50,0 |
2,0 |
11 |
M10 |
4 |
0,584 |
|
25 |
33,7 |
R 1" |
75 |
100 |
14 |
24 |
50,0 |
60,0 |
2,0 |
11 |
M10 |
4 |
0,729 |
|
32 |
42,4 |
R 1-1/4" |
90 |
120 |
14 |
26 |
60,0 |
70,0 |
2,0 |
14 |
M12 |
4 |
1,040 |
|
40 |
48,3 |
R 1-1/2" |
100 |
130 |
14 |
26 |
70,0 |
80,0 |
3,0 |
14 |
M12 |
4 |
1,200 |
|
50 |
60,3 |
R 2" |
110 |
140 |
14 |
28 |
80,0 |
90,0 |
3,0 |
14 |
M12 |
4 |
1,340 |
|
65 |
76,1 |
R 2-1/2" |
130 |
160 |
14 |
32 |
100,0 |
110,0 |
3,0 |
14 |
M12 |
4 |
1,830 |
|
80 |
88,9 |
R 3" |
150 |
190 |
16 |
34 |
110,0 |
128,0 |
3,0 |
18 |
M16 |
4 |
2,750 |
|
100 |
114,3 |
R 4" |
170 |
210 |
16 |
40 |
130,0 |
148,0 |
3,0 |
18 |
M16 |
4 |
3,010 |
|
125 |
139,7 |
R 5" |
200 |
240 |
18 |
44 |
160,0 |
178,0 |
3,0 |
18 |
M16 |
8 |
4,300 |
|
150 |
168,3 |
R 6" |
225 |
265 |
18 |
44 |
185,0 |
202,0 |
3,0 |
18 |
M16 |
8 |
4,630 |
