EN 1092-1 TYPE 13 Threaded Flange
EN 1092-1 threaded flange type 13 PN16
Standard: EN 1092-1
Flange type: threaded flange
Size range: DN15-DN150
Pressure: PN16
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: EN 1092-1
Flange type: threaded flange
Size range: DN15-DN150
Pressure class: PN16
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: EN 1092-1
Flange type: threaded flange
Size range: DN15-DN150
Pressure class: PN16
Material : Stainless steel , Alloy Steel , Carbon Steel
|

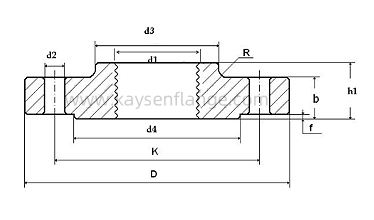

EN 1092-1 TYPE 13 PN16 THREADED FLANGE |
|||||||||||||
|
Rated Diameter |
Flange |
Neck |
Raised face |
Screws |
Weight |
||||||||
|
(7,85 Kg/dm3) |
|||||||||||||
|
d1 |
Thread |
k |
D |
b |
h1 |
d3 |
d4 |
f |
d2 |
Thread |
Bolt holes |
KG |
|
|
15 |
21,3 |
R 1/2" |
65 |
95 |
16 |
22 |
35,0 |
45,0 |
2,0 |
14 |
M12 |
4 |
0,722 |
|
20 |
26,9 |
R 3/4" |
75 |
105 |
18 |
26 |
45,0 |
58,0 |
2,0 |
14 |
M12 |
4 |
1,040 |
|
25 |
33,7 |
R 1" |
85 |
115 |
18 |
28 |
52,0 |
68,0 |
2,0 |
14 |
M12 |
4 |
1,250 |
|
32 |
42,4 |
R 1-1/4" |
100 |
140 |
18 |
30 |
60,0 |
78,0 |
2,0 |
18 |
M16 |
4 |
1,810 |
|
40 |
48,3 |
R 1-1/2" |
110 |
150 |
18 |
32 |
70,0 |
88,0 |
3,0 |
18 |
M16 |
4 |
2,060 |
|
50 |
60,3 |
R 2" |
125 |
165 |
18 |
28 |
84,0 |
102,0 |
3,0 |
18 |
M16 |
4 |
2,390 |
|
65 |
76,1 |
R 2-1/2" |
145 |
185 |
18 |
32 |
104,0 |
122,0 |
3,0 |
18 |
M16 |
4 |
2,970 |
|
80 |
88,9 |
R 3" |
160 |
200 |
20 |
34 |
118,0 |
138,0 |
3,0 |
18 |
M16 |
8 |
3,780 |
|
100 |
114,3 |
R 4" |
180 |
220 |
20 |
40 |
140,0 |
158,0 |
3,0 |
18 |
M16 |
8 |
4,380 |
|
125 |
139,7 |
R 5" |
210 |
250 |
22 |
44 |
168,0 |
188,0 |
3,0 |
18 |
M16 |
8 |
6,070 |
|
150 |
168,3 |
R 6" |
240 |
285 |
22 |
44 |
195,0 |
212,0 |
3,0 |
22 |
M20 |
8 |
7,240 |
