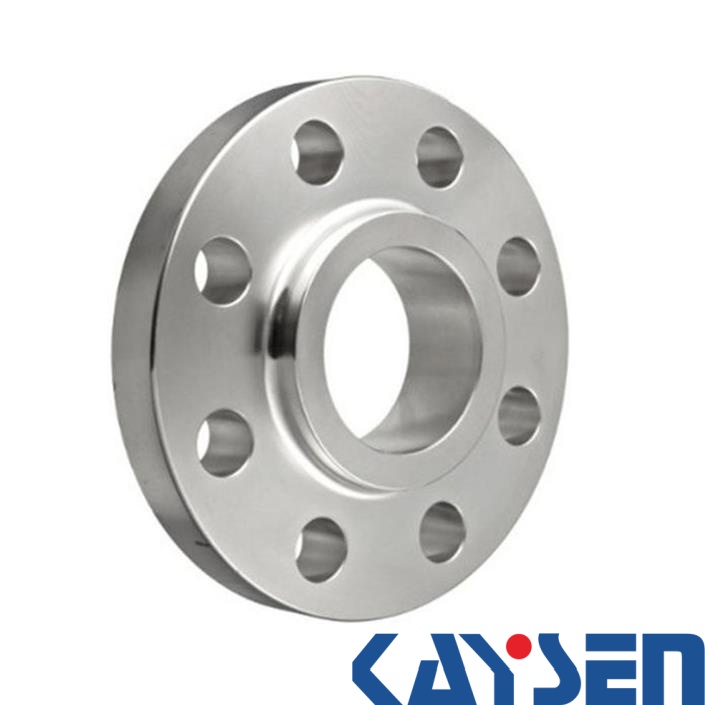

EN 1092-1 TYPE02 Loose Flange
EN 1092-1 Loose Flange TYPE 02 PN16
Standard: EN 1092-1
Flange type: loose flange
Size range: DN15-DN1000
Pressure: PN16
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: EN 1092-1
Flange type: loose flange
Size range: DN15-DN1000
Pressure class: PN16
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: EN 1092-1
Flange type: loose flange
Size range: DN15-DN1000
Pressure class: PN16
Material : Stainless steel , Alloy Steel , Carbon Steel

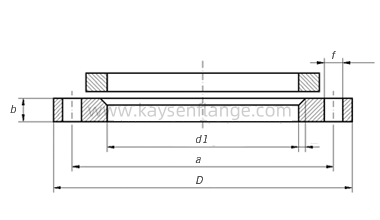

| EN 1092-1 TYPE 02 PN16 LOOSE FLANGE | |||||||||
| Rated Diameter | Flange | Screws | Weight | ||||||
| (7,85 Kg/dm3) | |||||||||
| d1 | k | D | b | e | d2 | Thread | Bolt holes | KG | |
| 15 | 25 | 65 | 95 | 14 | 3 | 14 | M12 | 4 | 0,655 |
| 20 | 31 | 75 | 105 | 16 | 4 | 14 | M12 | 4 | 0,913 |
| 25 | 38 | 85 | 115 | 16 | 4 | 14 | M12 | 4 | 1,081 |
| 32 | 47 | 100 | 140 | 18 | 5 | 18 | M16 | 4 | 1,781 |
| 40 | 53 | 110 | 150 | 18 | 5 | 18 | M16 | 4 | 2,035 |
| 50 | 65 | 125 | 165 | 20 | 5 | 18 | M16 | 4 | 2,668 |
| 65 | 81 | 145 | 185 | 20 | 6 | 18 | M16 | 4 | 3,241 |
| 80 | 94 | 160 | 200 | 20 | 6 | 18 | M16 | 8 | 3,512 |
| 100 | 120 | 180 | 220 | 22 | 6 | 18 | M16 | 8 | 4,247 |
| 125 | 145 | 210 | 250 | 22 | 6 | 18 | M16 | 8 | 5,258 |
| 150 | 174 | 240 | 285 | 24 | 6 | 22 | M20 | 8 | 6,945 |
| 200 | 226 | 295 | 340 | 26 | 6 | 22 | M20 | 12 | 9,383 |
| 250 | 281 | 355 | 405 | 29 | 8 | 26 | M24 | 12 | 13,717 |
| 300 | 333 | 410 | 460 | 32 | 8 | 26 | M24 | 12 | 18,213 |
| 350 | 365 | 470 | 520 | 35 | 8 | 26 | M24 | 16 | 27,184 |
| 400 | 416 | 525 | 580 | 38 | 8 | 30 | M27 | 16 | 34,789 |
| 450 | 467 | 585 | 640 | 42 | 8 | 30 | M27 | 20 | 44,793 |
| 500 | 519 | 650 | 715 | 46 | 8 | 33 | M30 | 20 | 62,227 |
| 600 | 622 | 770 | 840 | 55 | 8 | 36 | M33 | 20 | 98,983 |
| 700 | 721 | 840 | 910 | 63 | 8 | 36 | M33 | 24 | 107,32 |
| 800 | 824 | 950 | 1025 | 74 | 8 | 39 | M36 | 24 | 152,44 |
| 900 | 926 | 1050 | 1125 | 82 | 8 | 39 | M36 | 28 | 184,25 |
| 1000 | 1030 | 1170 | 1255 | 90 | 8 | 42 | M39 | 28 | 257,09 |
