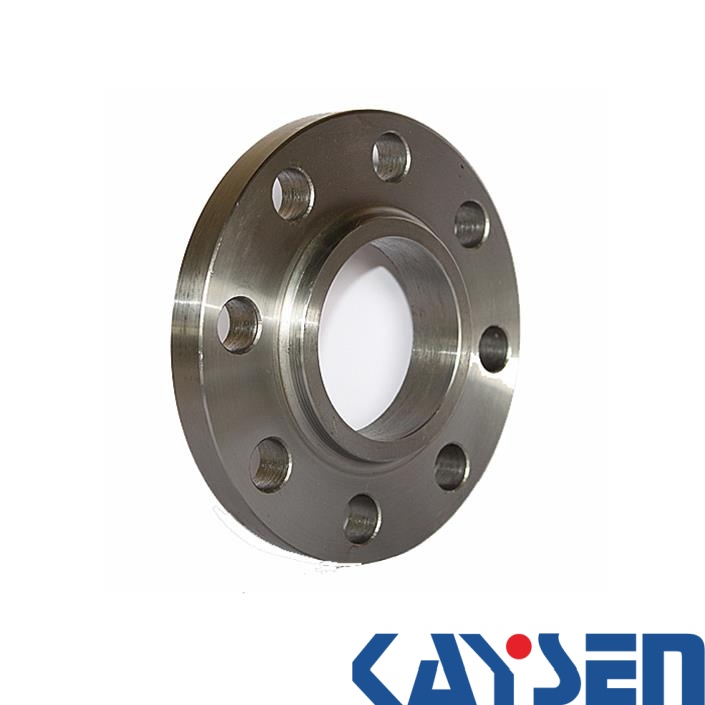

EN 1092-1 TYPE02 Loose Flange
EN 1092-1 Loose Flange TYPE 02 PN40
Standard: EN 1092-1
Flange type: loose flange
Size range: DN10-DN600
Pressure: PN40
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: EN 1092-1
Flange type: loose flange
Size range: DN10-DN600
Pressure class: PN40
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: EN 1092-1
Flange type: loose flange
Size range: DN10-DN600
Pressure class: PN40
Material : Stainless steel , Alloy Steel , Carbon Steel
|
DN |
Mating dimensions |
A |
Bore Diameter |
Flange Thickness |
E |
F |
G max |
Length |
Neck |
R |
S |
|||||||||||||
|
D |
K |
L |
Bolting |
Diameters |
||||||||||||||||||||
|
No |
Size |
B1 |
B2 |
B3 |
C1 |
C2 |
C3 |
C4 |
H1 |
H2 |
H3 |
N1 |
N2 |
N3 |
||||||||||
|

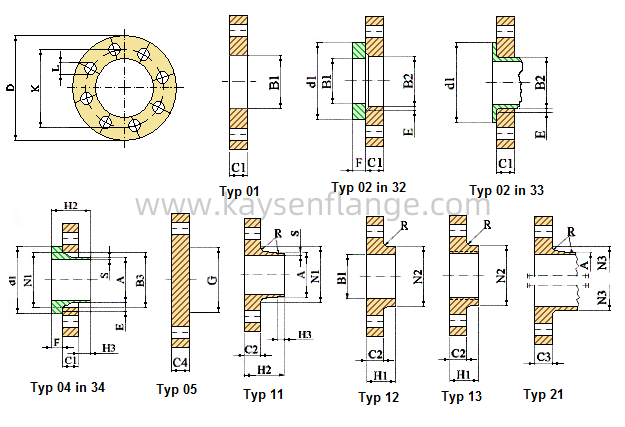

Flange type |
||||||||||||||||||||||||
|
01, 02, 05, 11, 12, 21 |
11 |
1 |
2 |
4 |
1 |
11 |
21 |
5 |
2 |
32 |
5 |
12 |
11 |
11 |
11 |
12 |
21 |
11 |
11 |
|||||
|
21* |
12 |
2 |
12 |
4 |
34 |
13 |
34 |
34 |
34 |
13 |
12 |
34 |
||||||||||||
|
34 |
32 |
4 |
13 |
|
|
|
|
|
|
|
13 |
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
21 |
|
||||||||||||
|
10 |
90 |
60 |
14 |
4 |
M12 |
17.2 |
18 |
21 |
31 |
14 |
16 |
|
16 |
3 |
12 |
- |
22 |
35 |
6 |
28 |
30 |
28 |
4 |
1.8 |
|
15 |
95 |
65 |
14 |
4 |
M12 |
21.3 |
22 |
25 |
35 |
14 |
16 |
|
16 |
3 |
12 |
- |
22 |
38 |
6 |
32 |
35 |
32 |
4 |
2 |
|
20 |
105 |
75 |
14 |
4 |
M12 |
26.9 |
27.5 |
31 |
42 |
16 |
18 |
|
18 |
4 |
14 |
- |
26 |
40 |
6 |
40 |
45 |
40 |
4 |
2.3 |
|
25 |
115 |
85 |
14 |
4 |
M12 |
33.7 |
34.5 |
38 |
49 |
16 |
18 |
|
18 |
4 |
14 |
- |
28 |
40 |
6 |
46 |
52 |
52 |
4 |
2.6 |
|
32 |
140 |
100 |
18 |
4 |
M16 |
42.4 |
43.5 |
47 |
59 |
18 |
18 |
|
18 |
5 |
14 |
- |
30 |
42 |
6 |
56 |
60 |
60 |
6 |
2.6 |
|
40 |
150 |
110 |
18 |
4 |
M16 |
48.3 |
49.5 |
53 |
67 |
18 |
18 |
|
18 |
5 |
14 |
- |
32 |
45 |
7 |
64 |
70 |
70 |
6 |
2.6 |
|
50 |
165 |
125 |
18 |
4 |
M16 |
60.3 |
61.5 |
65 |
77 |
20 |
20 |
|
20 |
5 |
16 |
- |
34 |
48 |
8 |
75 |
84 |
84 |
6 |
2.9 |
|
65 |
185 |
145 |
18 |
8 |
M16 |
76.1 |
77.5 |
81 |
96 |
22 |
22 |
|
22 |
6 |
16 |
55 |
38 |
52 |
10 |
90 |
104 |
104 |
6 |
2.9 |
|
80 |
200 |
160 |
18 |
8 |
M16 |
88.9 |
90.5 |
94 |
114 |
24 |
24 |
|
24 |
6 |
18 |
70 |
40 |
58 |
12 |
105 |
118 |
120 |
8 |
3.2 |
|
100 |
235 |
190 |
22 |
8 |
M20 |
114.3 |
116 |
120 |
138 |
26 |
24 |
|
24 |
6 |
20 |
90 |
44 |
65 |
12 |
134 |
145 |
142 |
8 |
3.6 |
|
125 |
270 |
220 |
26 |
8 |
M24 |
139.7 |
141.5 |
145 |
166 |
28 |
26 |
|
26 |
6 |
22 |
115 |
48 |
68 |
12 |
162 |
170 |
162 |
8 |
4 |
|
150 |
300 |
250 |
26 |
8 |
M24 |
168.3 |
170.5 |
174 |
194 |
30 |
28 |
|
28 |
6 |
24 |
140 |
52 |
75 |
12 |
192 |
200 |
192 |
10 |
4.5 |
|
200 |
375 |
320 |
30 |
12 |
M27 |
219.1 |
221.5 |
226 |
250 |
36 |
34 |
|
36 |
6 |
28 |
190 |
52 |
88 |
16 |
244 |
260 |
254 |
10 |
6.3 |
|
250 |
450 |
385 |
33 |
12 |
M30 |
273 |
276.5 |
281 |
312 |
42 |
38 |
|
38 |
8 |
30 |
235 |
60 |
105 |
18 |
306 |
312 |
312 |
12 |
7.1 |
|
300 |
515 |
450 |
33 |
16 |
M30 |
323.9 |
327.5 |
333 |
368 |
48 |
42 |
|
42 |
8 |
34 |
285 |
67 |
115 |
18 |
362 |
380 |
378 |
12 |
8 |
|
350 |
580 |
510 |
36 |
16 |
M33 |
355.6 |
359.5 |
365 |
418 |
54 |
46 |
|
46 |
8 |
36 |
330 |
72 |
125 |
20 |
408 |
424 |
432 |
12 |
8.8 |
|
400 |
660 |
585 |
39 |
16 |
M36 |
406.4 |
411 |
416 |
472 |
60 |
50 |
|
50 |
8 |
42 |
380 |
78 |
135 |
20 |
462 |
478 |
498 |
12 |
11 |
|
450 |
685 |
610 |
39 |
20 |
M36 |
457 |
462 |
467 |
510 |
66 |
57 |
|
57 |
8 |
46 |
425 |
84 |
135 |
20 |
500 |
522 |
522 |
12 |
12.5 |
|
500 |
755 |
670 |
42 |
20 |
M39 |
508 |
513.5 |
519 |
572 |
72 |
57 |
|
57 |
8 |
50 |
475 |
90 |
140 |
20 |
562 |
576 |
576 |
12 |
14.2 |
|
600 |
890 |
795 |
48 |
20 |
M45 |
610 |
616.5 |
622 |
676 |
84 |
72 |
|
72 |
8 |
54 |
575 |
100 |
150 |
20 |
666 |
686 |
686 |
12 |
16 |
