EN 1092-1 TYPE12 Slip On Flange

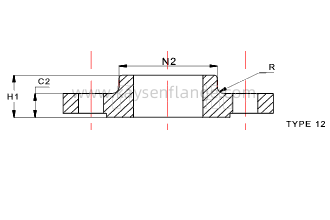

EN 1092-1 Slip On Bossed Flange TYPE 12 PN16
Standard: EN 1092-1
Flange type: Slip on bossed flange
Size range: DN15-DN1600
Pressure: PN16
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: EN 1092-1
Flange type: Slip on bossed flange
Size range: DN15-DN1600
Pressure class: PN16
Connection type: Ring type joint, lap-joint face,Raised face, flat face, Large male-female, small male-female,Large tongue & groove,small tongue & groove.
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: EN 1092-1
Flange type: Slip on bossed flange
Size range: DN15-DN1600
Pressure class: PN16
Material : Stainless steel , Alloy Steel , Carbon Steel
|
EN 1092-1 TYPE 12 PN16 SLIP ON BOSSED FLANGE |
||||||||||||
|
DN |
D |
C2 |
H1 |
R |
N2 |
B1 |
d1 |
f1 |
K |
L |
No |
Size |
|
15 |
95 |
14 |
20 |
4 |
35 |
22 |
45 |
2 |
60 |
14 |
4 |
M12 |
|
20 |
105 |
14 |
24 |
4 |
45 |
27,5 |
58 |
2 |
65 |
14 |
4 |
M12 |
|
25 |
115 |
16 |
24 |
4 |
52 |
34,5 |
68 |
2 |
75 |
14 |
4 |
M12 |
|
32 |
140 |
16 |
26 |
6 |
60 |
43,5 |
78 |
2 |
85 |
14 |
4 |
M12 |
|
40 |
150 |
16 |
26 |
6 |
70 |
49,5 |
88 |
2 |
100 |
18 |
4 |
M16 |
|
50 |
165 |
18 |
28 |
6 |
84 |
61,5 |
102 |
2 |
110 |
18 |
4 |
M16 |
|
65 |
185 |
18 |
32 |
6 |
104 |
77,5 |
122 |
2 |
125 |
18 |
4 |
M16 |
|
80 |
200 |
20 |
34 |
8 |
118 |
90,5 |
138 |
2 |
145 |
18 |
8** |
M16 |
|
100 |
220 |
20 |
40 |
8 |
140 |
116 |
158 |
2 |
160 |
18 |
8 |
M16 |
|
125 |
250 |
22 |
44 |
8 |
168 |
141,5 |
188 |
2 |
180 |
18 |
8 |
M16 |
|
150 |
285 |
22 |
44 |
10 |
195 |
170,5 |
212 |
2 |
210 |
18 |
8 |
M16 |
|
200 |
340 |
24 |
44 |
10 |
246 |
221,5 |
268 |
2 |
240 |
22 |
8 |
M20 |
|
250 |
405 |
26 |
46 |
12 |
298 |
276,5 |
320 |
2 |
295 |
22 |
12 |
M20 |
|
300 |
460 |
28 |
46 |
12 |
350 |
327,5 |
378 |
2 |
355 |
26 |
12 |
M24 |
|
350 |
520 |
30 |
57 |
12 |
400 |
359 |
438 |
2 |
410 |
26 |
12 |
M24 |
|
400 |
580 |
32 |
63 |
12 |
456 |
411,0 |
490 |
2 |
470 |
26 |
16 |
M24 |
|
450 |
640 |
40 |
68 |
12 |
502 |
462,0 |
550 |
2 |
525 |
30 |
16 |
M27 |
|
500 |
715 |
44 |
73 |
12 |
559 |
513,5 |
610 |
2 |
585 |
30 |
20 |
M27 |
|
600 |
840 |
54 |
83 |
12 |
658 |
616,5 |
725 |
2 |
650 |
33 |
20 |
M30 |
|
700 |
910 |
36 |
83 |
12 |
760 |
- |
795 |
2 |
770 |
36 |
20 |
M33 |
|
800 |
1025 |
38 |
90 |
12 |
864 |
- |
900 |
2 |
840 |
36 |
24 |
M33 |
|
900 |
1125 |
40 |
94 |
12 |
968 |
- |
1000 |
2 |
950 |
39 |
24 |
M36 |
|
1000 |
1255 |
42 |
100 |
16 |
1072 |
- |
1115 |
2 |
1050 |
39 |
28 |
M36 |
|
1200 |
1485 |
48 |
- |
16 |
- |
- |
1330 |
2 |
1170 |
42 |
28 |
M39 |
|
1400 |
1685 |
52 |
- |
16 |
- |
- |
1530 |
2 |
1390 |
48 |
32 |
M45 |
|
1600 |
1930 |
58 |
- |
16 |
- |
- |
1750 |
2 |
1590 |
48 |
36 |
M45 |
