ISO 7005-1 Flange
ISO 7005-1 Lap Joint Flange PN16
Standard: ISO 7005-1
Flange type: lap joint flange
Size range: DN40-DN710
Pressure: PN16
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: ISO 7005-1
Flange type: lap joint flange
Size range: DN40-DN710
Pressure class: PN16
Process: forged
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: ISO 7005-1
Flange type: lap joint flange
Size range: DN40-DN710
Pressure class:PN16
Material : Stainless steel , Alloy Steel , Carbon Steel
|

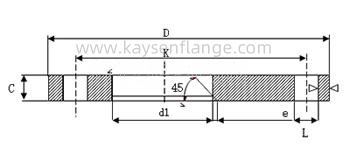

ISO9624 PN16 LAP JOINT FLANGE DIMENSIONS |
|||||||||
|
DN |
D |
d1 |
K |
C |
L |
BOLT |
NB |
e |
kg |
|
40/50 |
150 |
62 |
110 |
16 |
18 |
M16 |
4 |
3 |
1.71 |
|
50/63 |
165 |
78 |
125 |
16 |
18 |
M16 |
4 |
3 |
1.96 |
|
65/75 |
185 |
92 |
145 |
16 |
18 |
M16 |
4 |
3 |
2.41 |
|
80/90 |
200 |
108 |
160 |
18 |
18 |
M16 |
8 |
3 |
2.86 |
|
100/110 |
220 |
128 |
180 |
18 |
18 |
M16 |
8 |
4 |
3.27 |
|
100/125 |
220 |
135 |
180 |
18 |
18 |
M16 |
8 |
4 |
3.06 |
|
125/125 |
250 |
135 |
210 |
18 |
18 |
M16 |
8 |
4 |
4.63 |
|
125/140 |
250 |
158 |
210 |
18 |
18 |
M16 |
8 |
4 |
3.88 |
|
150/160 |
285 |
178 |
240 |
18 |
22 |
M20 |
8 |
4 |
5.07 |
|
150/180 |
285 |
188 |
240 |
18 |
22 |
M20 |
8 |
4 |
4.66 |
|
200/200 |
340 |
235 |
295 |
26 |
22 |
M20 |
12 |
4 |
8.75 |
|
200/225 |
340 |
238 |
295 |
26 |
22 |
M20 |
12 |
4 |
8.52 |
|
250/250 |
405 |
288 |
355 |
29 |
26 |
M24 |
12 |
4 |
13.05 |
|
250/280 |
405 |
294 |
355 |
29 |
26 |
M24 |
12 |
4 |
12.42 |
|
300/315 |
460 |
338 |
410 |
32 |
26 |
M24 |
12 |
5 |
17.61 |
|
350/355 |
520 |
376 |
470 |
35 |
26 |
M24 |
16 |
5 |
25.51 |
|
400/400 |
580 |
430 |
525 |
38 |
30 |
M27 |
16 |
5 |
32.12 |
|
500/500 |
715 |
533 |
650 |
46 |
33 |
M30 |
20 |
7 |
58.24 |
|
600/630 |
840 |
645 |
770 |
55 |
36 |
M33 |
20 |
8 |
89.4 |
|
700/710 |
910 |
740 |
840 |
63 |
36 |
M33 |
24 |
8 |
96.87 |
