JIS 10K Flange
10K slip on flange JIS B2220
Standard: JIS B2220
Flange type: slip on flange
Size range: 10A-300A
Pressure: 10K
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: JIS B2220
Flange type: slip on flange
Size range: 10A-300A
Pressure class: 10K
Process: forged
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: JIS B2220
Flange type: slip on flange
Size range: 10A-300A
Pressure class:10K
Material : Stainless steel , Alloy Steel , Carbon Steel
|

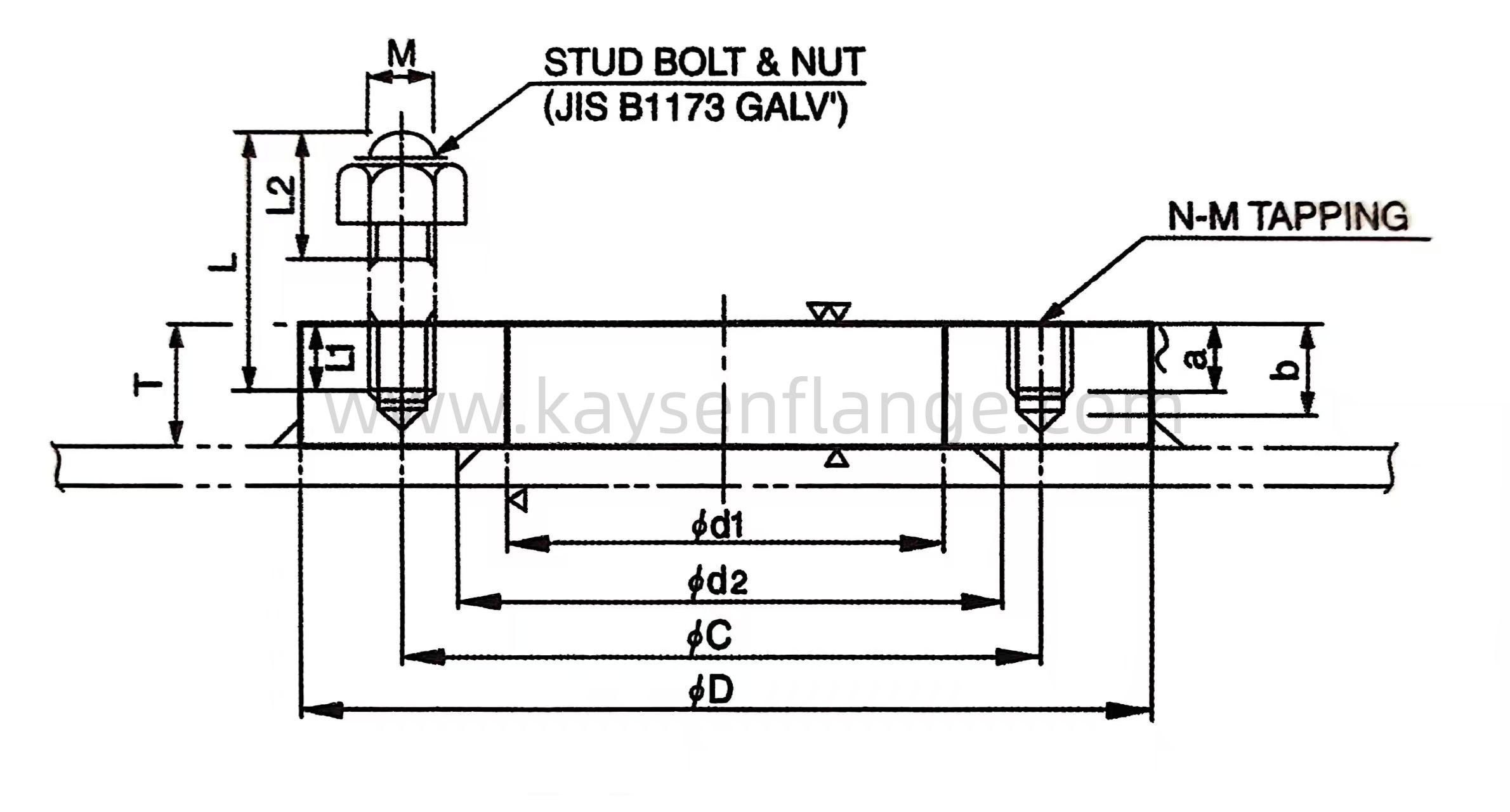

Nominal Bore of Flange |
Sectional Dimensions of Flange |
STUD BOLT |
Weight (kg) |
|||||||||
|
|
D |
C |
d1 |
T |
a |
b |
N |
M |
L |
L2 |
L1 |
|
|
10A |
90 |
65 |
17.8 |
22 |
12 |
16 |
4 |
M12 |
40 |
22 |
12 |
0.97 |
|
15A |
95 |
70 |
22.2 |
22 |
12 |
16 |
4 |
M12 |
40 |
22 |
12 |
1.07 |
|
20A |
100 |
75 |
27.7 |
22 |
12 |
16 |
4 |
M12 |
40 |
22 |
12 |
1.17 |
|
25A |
125 |
90 |
34.5 |
26 |
16 |
19 |
4 |
M16 |
50 |
28 |
16 |
2.27 |
|
32A |
135 |
100 |
43.2 |
26 |
16 |
19 |
4 |
M16 |
50 |
28 |
16 |
2.57 |
|
40A |
140 |
105 |
49.1 |
26 |
16 |
19 |
4 |
M16 |
50 |
28 |
16 |
2.67 |
|
50A |
155 |
120 |
61.1 |
26 |
16 |
19 |
4 |
M16 |
50 |
28 |
16 |
3.07 |
|
65A |
175 |
140 |
77.1 |
26 |
16 |
19 |
4 |
M16 |
55 |
28 |
16 |
3.11 |
|
80A |
185 |
150 |
90 |
26 |
16 |
19 |
8 |
M16 |
55 |
28 |
16 |
3.87 |
|
100A |
210 |
175 |
115.4 |
26 |
16 |
19 |
8 |
M16 |
55 |
28 |
16 |
4.67 |
|
125A |
250 |
210 |
141.2 |
30 |
20 |
23 |
8 |
M20 |
65 |
36 |
20 |
7.36 |
|
150A |
280 |
240 |
166.6 |
30 |
20 |
23 |
8 |
M20 |
70 |
36 |
20 |
8.84 |
|
200A |
330 |
290 |
218 |
30 |
20 |
23 |
12 |
M20 |
70 |
36 |
20 |
10.64 |
|
250A |
400 |
355 |
269.5 |
34 |
22 |
25 |
12 |
M22 |
75 |
40 |
22 |
17.51 |
|
300A |
445 |
400 |
321 |
34 |
22 |
25 |
16 |
M22 |
75 |
40 |
22 |
18.63 |
