JIS 5K Flange
JIS B2220 5K Flange
Standard: JIS B2220
Flange type: PL, SO, WN, TH, SW, BL, etc.
Size range: 10A (DN10) to 1500A (DN1500)
Pressure: 5K (≈0.5MPa)
Material: SS400, SUS304, SUS316, etc.
- Standard: Complies with JIS B2220, which specifies dimensions, tolerances, materials, etc.
- Flange types: Plate Flange (PL), Slip-On Flange (SO), Weld Neck Flange (WN), Socket Weld Flange (SW), Threaded Flange (TH), Blind Flange (BL), etc.
- Size range: Generally DN15-DN2000 (1/2"-80").
- Pressure class: 5K (equivalent to approximately 0.5MPa or 5bar).
- Materials: Common ones include carbon steel (e.g., SS400, SF440A), stainless steel (e.g., ASTM A182 F304, F304L, F316, F316L), and alloy steel can be used as needed.
- Surface treatment: Such as anti-rust oil, black paint, yellow paint, galvanizing, etc.
- Application fields: Suitable for water supply and drainage, fire protection, factory steam piping systems, etc.
- Standard: JIS B2220
- Flange type: PL, SO, WN, TH, SW, BL, etc.
- Size range: 10A (DN10) to 1500A (DN1500)
- Pressure: 5K (≈0.5MPa)
- Material: SS400, SUS304, SUS316, etc.
|

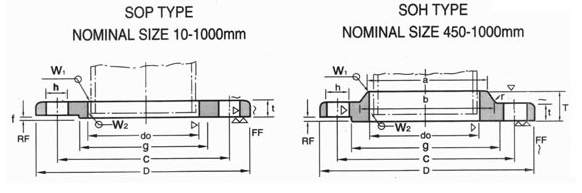

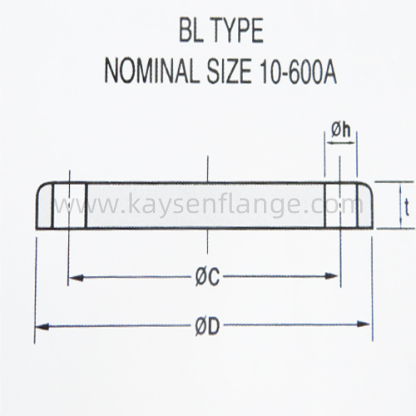

Nominal |
Outside |
Inside |
Outside |
Sectional Dimensions of Flange |
Bolt Hole |
Nominal |
Approx. |
||||||||||
|
Dia. of |
Dia. of |
Dia. of |
Dia. of |
t |
T |
Dia. of Hub |
r |
Dia. of |
Dia. of |
Bolt. |
Number |
Hole |
Bolt |
Weight |
|||
|
Flange |
Steel |
Flange |
Flange |
|
|
a |
b |
|
Face |
Raised Face |
Circle |
of Bolt |
Dia. |
Size |
(kg) |
||
|
|
Pipe |
do |
D |
|
|
|
|
|
f |
g |
Dia |
Holes |
h |
|
SOP |
BL |
SOH |
|
10 |
17.3 |
17.8 |
75.0 |
9 |
- |
- |
- |
- |
1 |
39 |
55 |
4 |
12 |
M10 |
0.26 |
0.28 |
- |
|
15 |
21.7 |
22.2 |
80.0 |
9 |
- |
- |
- |
- |
1 |
44 |
60 |
4 |
12 |
M10 |
0.30 |
0.32 |
- |
|
20 |
27.2 |
27.7 |
85.0 |
10 |
- |
- |
- |
- |
1 |
49 |
65 |
4 |
12 |
M10 |
0.36 |
0.41 |
- |
|
25 |
34.0 |
34.5 |
95.0 |
10 |
- |
- |
- |
- |
1 |
59 |
75 |
4 |
12 |
M10 |
0.45 |
0.52 |
- |
|
32 |
42.7 |
43.2 |
115.0 |
12 |
- |
- |
- |
- |
2 |
70 |
90 |
4 |
15 |
M12 |
0.77 |
0.91 |
- |
|
40 |
48.6 |
49.1 |
120.0 |
12 |
- |
- |
- |
- |
2 |
75 |
95 |
4 |
15 |
M12 |
0.82 |
1.00 |
- |
|
50 |
60.5 |
61.1 |
130.0 |
14 |
- |
- |
- |
- |
2 |
85 |
105 |
4 |
15 |
M12 |
1.06 |
1.38 |
- |
|
65 |
76.3 |
77.1 |
155.0 |
14 |
- |
- |
- |
- |
2 |
110 |
130 |
4 |
15 |
M12 |
1.48 |
2.00 |
- |
|
80 |
89.1 |
90.0 |
180.0 |
14 |
- |
- |
- |
- |
2 |
121 |
145 |
4 |
19 |
M16 |
1.97 |
2.67 |
- |
|
(90) |
101.6 |
102.6 |
190.0 |
14 |
- |
- |
- |
- |
2 |
131 |
155 |
4 |
19 |
M16 |
2.08 |
2.99 |
- |
|
100 |
114.3 |
115.4 |
200.0 |
16 |
- |
- |
- |
- |
2 |
141 |
165 |
8 |
19 |
M16 |
2.35 |
3.66 |
- |
|
125 |
139.6 |
141.2 |
235.0 |
16 |
- |
- |
- |
- |
2 |
176 |
200 |
8 |
19 |
M16 |
3.20 |
5.16 |
- |
|
150 |
165.2 |
166.6 |
265.0 |
18 |
- |
- |
- |
- |
2 |
206 |
230 |
8 |
19 |
M16 |
4.39 |
7.47 |
- |
|
(175) |
190.7 |
192.1 |
300.0 |
18 |
- |
- |
- |
- |
2 |
232 |
260 |
8 |
23 |
M20 |
5.42 |
9.52 |
- |
|
200 |
216.3 |
218.0 |
320.0 |
20 |
- |
- |
- |
- |
2 |
252 |
280 |
8 |
23 |
M20 |
6.24 |
12.10 |
- |
|
(225) |
241.8 |
243.7 |
345.0 |
20 |
- |
- |
- |
- |
2 |
277 |
305 |
12 |
23 |
M20 |
6.57 |
13.90 |
- |
|
250 |
267.4 |
269.5 |
385.0 |
22 |
- |
- |
- |
- |
2 |
317 |
345 |
12 |
23 |
M20 |
9.39 |
19.20 |
- |
|
300 |
318.5 |
321.0 |
430.0 |
22 |
- |
- |
- |
- |
3 |
360 |
390 |
12 |
23 |
M20 |
10.20 |
24.20 |
- |
|
350 |
355.6 |
358.1 |
480.0 |
24 |
- |
- |
- |
- |
3 |
403 |
435 |
12 |
25 |
M22 |
14.00 |
33.00 |
- |
|
400 |
406.4 |
409.0 |
540.0 |
24 |
- |
- |
- |
- |
3 |
463 |
495 |
16 |
25 |
M22 |
16.90 |
41.70 |
- |
|
450 |
457.2 |
460.0 |
605.0 |
24 |
40 |
495 |
500 |
5 |
3 |
523 |
555 |
16 |
25 |
M22 |
21.40 |
52.70 |
24.90 |
|
500 |
508.0 |
511.0 |
655.0 |
24 |
40 |
546 |
552 |
5 |
3 |
573 |
605 |
20 |
25 |
M22 |
23.00 |
61.60 |
27.00 |
|
(550) |
558.8 |
562.0 |
720.0 |
26 |
42 |
597 |
603 |
5 |
3 |
630 |
665 |
20 |
27 |
M24 |
30.10 |
80.80 |
34.50 |
|
600 |
609.6 |
613.0 |
770.0 |
26 |
44 |
648 |
654 |
5 |
3 |
680 |
715 |
20 |
27 |
M24 |
32.50 |
92.70 |
37.80 |
|
(650) |
660.4 |
664.0 |
825.0 |
26(28) |
48 |
702 |
708 |
5 |
3 |
735 |
770 |
24 |
27 |
M24 |
35.60 |
106(114) |
43.20 |
|
700 |
711.2 |
715.0 |
875.0 |
26(30) |
48 |
751 |
758 |
5 |
3 |
785 |
820 |
24 |
27 |
M24 |
38.00 |
120(138) |
45.80 |
|
(750) |
762.0 |
766.0 |
945.0 |
28(32) |
52 |
802 |
810 |
5 |
3 |
840 |
880 |
24 |
33 |
M30 |
48.40 |
150(171) |
57.70 |
|
800 |
812.8 |
817.0 |
995.0 |
28(34) |
52 |
854 |
862 |
5 |
3 |
890 |
930 |
24 |
33 |
M30 |
51.20 |
(202) |
61.30 |
|
(850) |
863.6 |
868.0 |
1045.0 |
28(36) |
54 |
904 |
912 |
5 |
3 |
940 |
980 |
24 |
33 |
M30 |
53.90 |
(237) |
65.30 |
|
900 |
914.4 |
919.0 |
1095.0 |
30(36) |
56 |
956 |
964 |
5 |
3 |
990 |
1030 |
24 |
33 |
M30 |
60.70 |
(260) |
73.10 |
|
1000 |
1016.0 |
1021.0 |
1195.0 |
32(40) |
60 |
1058 |
1066 |
5 |
3 |
1090 |
1130 |
28 |
33 |
M30 |
70.10 |
(345) |
84.80 |
|
1100 |
1117.6 |
1122.0 |
1305.0 |
32(44) |
71 |
1158 |
1170 |
7 |
3 |
1200 |
1240 |
28 |
33 |
M30 |
81.60 |
(454) |
105.00 |
|
1200 |
1219.2 |
1224.0 |
1420.0 |
34(48) |
77 |
1260 |
1272 |
7 |
3 |
1305 |
1350 |
32 |
33 |
M30 |
101.00 |
(586) |
129.00 |
|
1350 |
1371.6 |
1376.0 |
1575.0 |
34(48) |
80 |
1414 |
1426 |
7 |
3 |
1460 |
1505 |
32 |
33 |
M30 |
116.00 |
(814) |
151.00 |
|
1500 |
1524.0 |
1529.0 |
1730.0 |
36(58) |
86 |
1568 |
1580 |
7 |
3 |
1615 |
1660 |
36 |
33 |
M30 |
137.00 |
(1060) |
180.00 |
