JIS F 7805 Slip On Flanges 1K

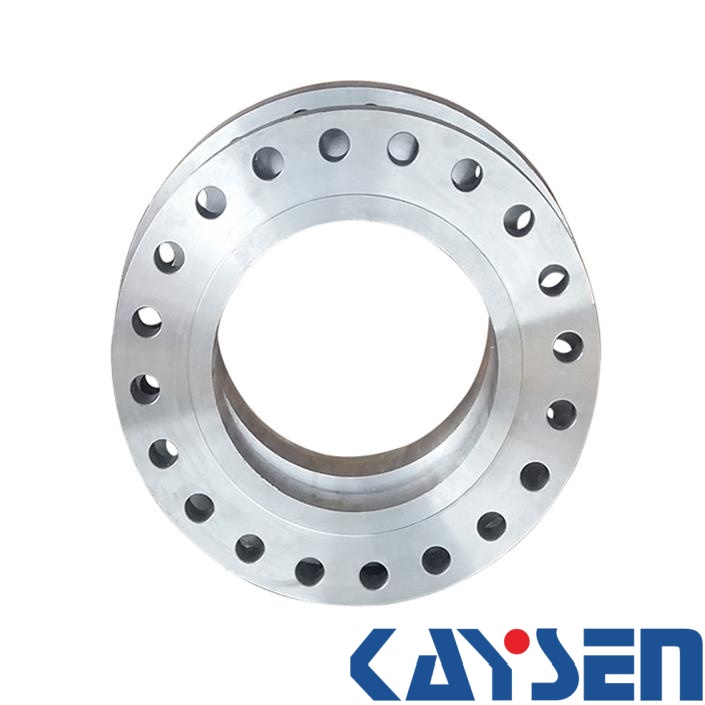

JIS F 7805 slip-on flange 1K
Standard: JIS F 7805
Flange type: Slip-on flange
Size range: DN25 - DN2600
Pressure: 1K (1kg/cm²)
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: JIS F 7805
Flange type: slip-on flange
Size range: DN25 - DN2600
Pressure class: 1K
Process: forged
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: JIS F 7805
Flange type: slip-on flange
Size range: DN25 - DN2600
Pressure class:1K
Material : Stainless steel , Alloy Steel , Carbon Steel
|

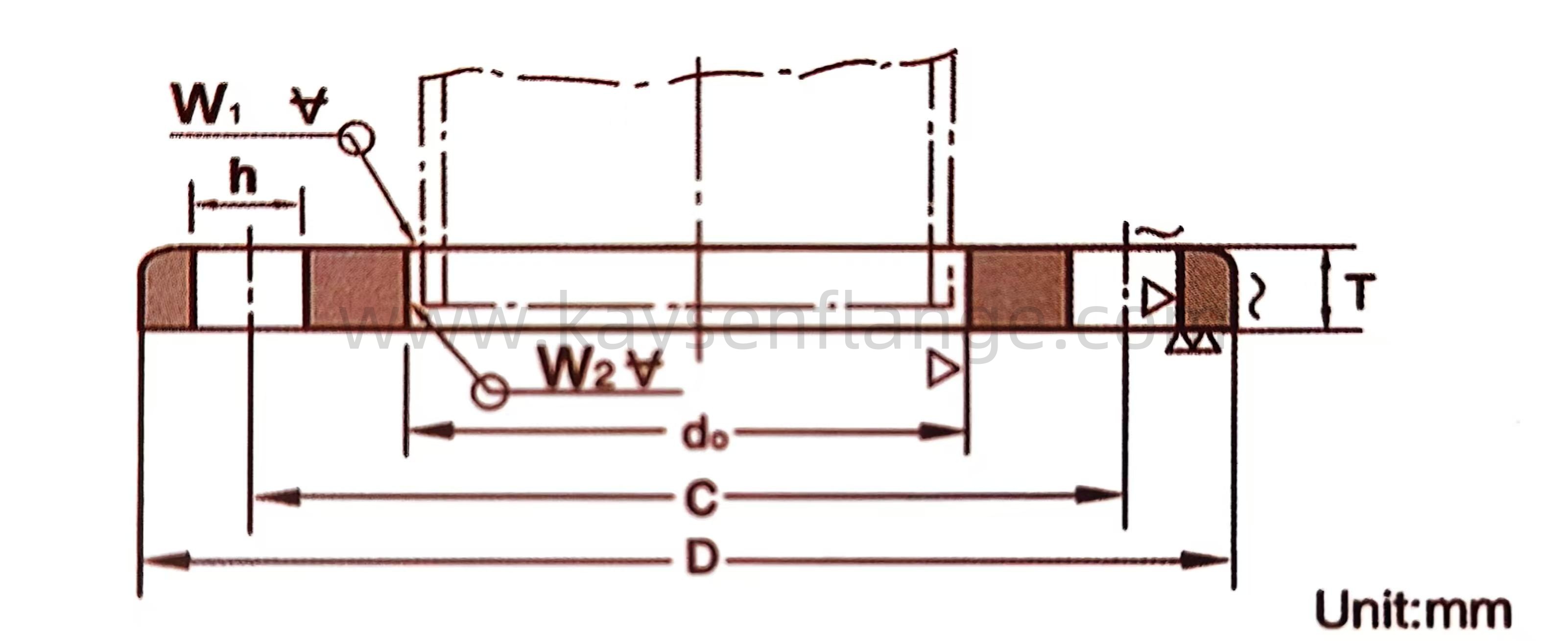

N/D |
PIPE |
FLANGE |
BOLT HOLE |
BOLT (M) |
WT (KG) |
||||
|
|
O/D(d) |
D |
1/D(do) |
T |
C |
N |
h |
|
|
|
25 |
34.0 |
95 115 |
34.5 |
10 |
75 90 |
4 4 4 |
12 |
M10 |
0.45 0.73 0.83 |
|
50 |
60.5 |
130 |
61.1 |
14 14 14 |
105 |
4 4 |
15 |
M12 M12 |
1.06 |
|
100 |
114.3 |
200 |
115.4 |
16 16 |
165 200 230 |
8 8 8 |
19 |
M16 |
2.23 3.20 |
|
200 |
216.3 |
320 |
218.0 |
16 16 |
280 345 |
8 12 |
23 |
M20 |
5.00 |
|
350 |
355.6 |
480 |
358.1 |
16 |
435 |
12 |
25 25 |
M22 M22 M22 |
9.45 |
|
500 |
508.0 |
655 |
511.0 |
16 16 |
605 670 |
16 16 |
25 23 |
M22 M20 |
15.73 12.00 |
|
(650) |
660.4 |
760 |
664.0 |
16 16 16 |
720 775 825 |
16 20 |
23 23 |
M20 |
12.15 |
|
800. |
812.8 |
915 |
817.0 |
16 16 18 |
875 925 980 |
20 20 20 |
23 23 |
M20 |
15.70 |
|
(950) |
962.0 |
1075 |
987.0 |
18 18 18 |
1030 |
20 20 24 |
25 |
M22 M22 |
21.97 |
|
1100 |
1117.6 |
1225 |
1122.0 |
18 |
1180 1280 |
24 24 24 |
25 25 |
M22 |
25.16 27.60 |
|
1250 |
1262.0 |
1375 |
1267.0 |
18 18 |
1330 |
28 28 28 |
25 25 25 |
M22 M22 |
29.72 32.38 |
|
1400 |
1412.0 |
1525 |
1417.0 |
20 20 20 |
1480 |
28 28 28 |
25 27 27 |
M22 |
37.02 |
|
1600 |
1612.0 |
1745 |
1617.0 |
20 20 20 |
1690 |
28 28 32 |
27 27 27 |
M24 |
50.54 58.90 |
|
1900 |
1912.0 |
2050 2250 |
1917.0 |
20 20 24 |
1995 |
32 |
27 27 27 |
M24 |
62.18 79.55 |
|
2200 |
2216.0 |
2350 |
2221.0 |
24 24 24 |
2295 |
40 |
27 27 27 |
M24 |
82.94 89.71 |
|
2500 |
2516.0 |
2650 |
2521.0 |
24 24 |
2595 |
48 48 |
27 27 |
M24 |
93.52 97.34 |
