KS B 1503 10K Flange
KSB 1503 SO Hub Flange 10K
Standard: KSB 1503
Flange type: SO hub flange
Size range: DN10-DN1500
Pressure: 10K
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: KSB 1503
Flange type: SO hub flange
Size range: DN10-DN1500
Pressure class: 10K
Process: forged
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: KSB 1503
Flange type: SO hub flange
Size range: DN10-DN1500
Pressure class:10K
Material : Stainless steel , Alloy Steel , Carbon Steel
|
Nominal |
Outside |
Inside |
Outside |

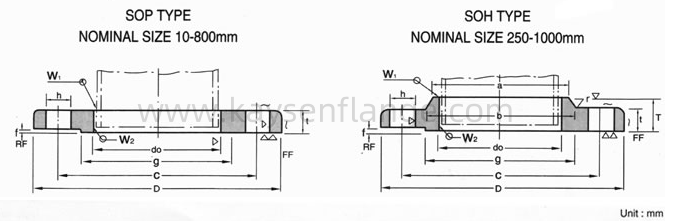

Sectional Dimensions of Flange |
Bolt Hole |
Nor |
Approx. |
||||||||||
|
Dia. of |
Dia. of |
Dia.of |
Dia. of |
t |
T |
Dia. of Hub |
r |
Dia. of |
Dia. of |
Bolt. |
No. |
Hole |
Bolt |
Weight |
|||
|
Flange |
Steel |
Flange |
Flange |
a |
b |
Face |
Rai- |
Circle Dia |
of Bolt |
Dia. |
Size |
(kg) |
|||||
|
sed Face |
|||||||||||||||||
|
|
Pipe |
do |
D |
f |
g |
C |
Holes |
h |
|
SOP |
BL |
SOH |
|||||
|
10 |
17.3 |
17.8 |
90 |
12 |
- |
- |
- |
- |
1 |
46 |
65 |
4 |
15 |
M12 |
0.51 |
0.53 |
- |
|
15 |
21.7 |
22.2 |
95 |
12 |
- |
- |
- |
- |
1 |
51 |
70 |
4 |
15 |
M12 |
0.56 |
0.6 |
- |
|
20 |
27.2 |
27.7 |
100 |
14 |
- |
- |
- |
- |
1 |
56 |
75 |
4 |
15 |
M12 |
0.72 |
0.79 |
- |
|
25 |
34 |
34.5 |
125 |
14 |
- |
- |
- |
- |
1 |
67 |
90 |
4 |
19 |
M16 |
1.12 |
1.22 |
- |
|
32 |
42.7 |
43.2 |
135 |
16 |
- |
- |
- |
- |
2 |
76 |
100 |
4 |
19 |
M16 |
1.47 |
1.66 |
- |
|
40 |
48.6 |
49.1 |
140 |
16 |
- |
- |
- |
- |
2 |
81 |
105 |
4 |
19 |
M16 |
1.55 |
1.79 |
- |
|
50 |
60.5 |
61.1 |
155 |
16 |
- |
- |
- |
- |
2 |
96 |
120 |
4 |
19 |
M16 |
1.86 |
2.23 |
- |
|
65 |
76.3 |
77.1 |
175 |
18 |
- |
- |
- |
- |
2 |
116 |
140 |
4 |
19 |
M16 |
2.58 |
3.24 |
- |
|
80 |
89.1 |
90 |
185 |
18 |
- |
- |
- |
- |
2 |
126 |
150 |
8 |
19 |
M16 |
2.58 |
3.48 |
- |
|
90 |
101.6 |
102.6 |
195 |
18 |
- |
- |
- |
- |
2 |
136 |
160 |
8 |
19 |
M16 |
2.73 |
3.9 |
- |
|
100 |
114.3 |
115.4 |
210 |
18 |
- |
- |
- |
- |
2 |
151 |
175 |
8 |
19 |
M16 |
3.1 |
4.57 |
- |
|
125 |
139.6 |
141.2 |
250 |
20 |
- |
- |
- |
- |
2 |
182 |
210 |
8 |
23 |
M20 |
4.73 |
7.18 |
- |
|
150 |
165.2 |
166.6 |
280 |
22 |
- |
- |
- |
- |
2 |
212 |
240 |
8 |
23 |
M20 |
6.3 |
10.1 |
- |
|
175 |
190.7 |
192.1 |
305 |
22 |
- |
- |
- |
- |
2 |
237 |
265 |
12 |
23 |
M20 |
6.75 |
11.8 |
- |
|
200 |
216.3 |
218 |
330 |
22 |
- |
- |
- |
- |
2 |
262 |
290 |
12 |
23 |
M20 |
7.46 |
8 |
- |
|
225 |
241.8 |
243.7 |
350 |
22 |
- |
- |
- |
- |
2 |
282 |
310 |
12 |
23 |
M20 |
7.7 |
15.8 |
- |
|
250 |
267.4 |
269.5 |
400 |
24 |
36 |
288 |
292 |
6 |
2 |
324 |
355 |
12 |
25 |
M22 |
11.8 |
22.6 |
12.7 |
|
300 |
318.5 |
321 |
445 |
24 |
38 |
340 |
346 |
6 |
3 |
368 |
400 |
16 |
25 |
M22 |
12.6 |
27.8 |
13.8 |
|
350 |
355.6 |
358.1 |
490 |
26 |
42 |
380 |
386 |
6 |
3 |
413 |
445 |
16 |
25 |
M22 |
16.3 |
36.9 |
18.2 |
|
400 |
406.4 |
409 |
560 |
28 |
44 |
436 |
442 |
6 |
3 |
475 |
510 |
16 |
27 |
M24 |
23.2 |
52.1 |
25.8 |
|
450 |
457.2 |
460 |
620 |
30 |
48 |
496 |
502 |
6 |
3 |
530 |
565 |
20 |
27 |
M24 |
29.3 |
68.4 |
33.4 |
|
500 |
508 |
511 |
675 |
30 |
48 |
548 |
554 |
6 |
3 |
585 |
620 |
20 |
27 |
M24 |
33.3 |
81.6 |
38 |
|
550 |
558.8 |
562 |
745 |
32(34) |
52 |
604 |
610 |
6 |
3 |
640 |
680 |
20 |
27 |
M30 |
42.9 |
105(112) |
49.4 |
|
600 |
609.6 |
613 |
795 |
32(36) |
52 |
656 |
662 |
6 |
3 |
690 |
730 |
24 |
33 |
M30 |
45.4 |
120(134) |
52.6 |
|
650 |
660.4 |
664 |
845 |
34(38) |
56 |
706 |
712 |
6 |
3 |
740 |
780 |
24 |
33 |
M30 |
51.8 |
144(161) |
60.2 |
|
700 |
711.2 |
715 |
905 |
34(40) |
58 |
762 |
770 |
6 |
3 |
800 |
840 |
24 |
33 |
M30 |
59 |
176(196) |
70.2 |
|
750 |
762 |
766 |
970 |
36(44) |
62 |
816 |
824 |
6 |
3 |
855 |
900 |
24 |
33 |
M30 |
72.8 |
214(248) |
86.5 |
|
800 |
812.8 |
817 |
1020 |
36(46) |
64 |
868 |
876 |
6 |
3 |
905 |
950 |
28 |
33 |
M30 |
76 |
249(286) |
92 |
|
850 |
863.6 |
868 |
1070 |
36(48) |
66 |
920 |
928 |
6 |
3 |
955 |
1000 |
28 |
33 |
M30 |
80.1 |
330 |
98.7 |
|
900 |
914.4 |
919 |
1120 |
38(50) |
70 |
971 |
979 |
6 |
3 |
1005 |
1050 |
28 |
33 |
M30 |
88.9 |
377 |
110 |
|
1000 |
1016 |
1021 |
1235 |
40(56) |
74 |
1073 |
1081 |
6 |
3 |
1110 |
1160 |
28 |
39 |
M36 |
109 |
512 |
133 |
|
1100 |
1117.6 |
1122 |
1345 |
42(62) |
95 |
1175 |
1185 |
8 |
3 |
1220 |
1270 |
28 |
39 |
M36 |
131 |
675 |
175 |
|
1200 |
1219.2 |
1224 |
1465 |
44(66) |
101 |
1278 |
1290 |
8 |
3 |
1325 |
1380 |
32 |
39 |
M36 |
163 |
854 |
215 |
|
1350 |
1371.6 |
1376 |
1630 |
48(74) |
110 |
1432 |
1450 |
8 |
3 |
1480 |
1540 |
36 |
45 |
M42 |
204 |
1180 |
274 |
|
1500 |
1524 |
1529 |
1795 |
50(82) |
123 |
1585 |
1605 |
8 |
3 |
1635 |
1700 |
40 |
45 |
M42 |
248 |
1590 |
340 |
