KS B 1503 40K Flange
KSB 1503 SO Blind Flange 40K
Standard: KSB 1503
Flange type: SO blind flange
Size range: DN10-DN250
Pressure: 40K
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: KSB 1503
Flange type: SO blind flange
Size range: DN10-DN250
Pressure class: 40K
Process: forged
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: KSB 1503
Flange type: SO blind flange
Size range: DN10-DN250
Pressure class: 40K
Material : Stainless steel , Alloy Steel , Carbon Steel
|

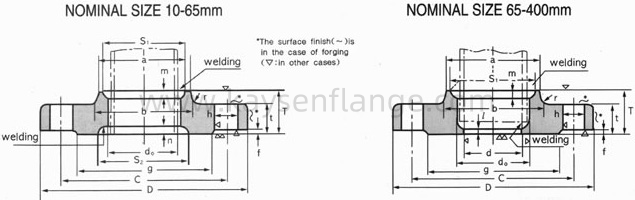

Nominal Dia of Flange |
Outside Dia of Steel Pipe |
Inside Dia of Flange do |
Outside Dia of Flange |
Sectional Dimensions of Flange |
Bolt Hole |
Nominal Bolt Size |
Reference |
Approx. Weight (kg) |
||||||||||||
|
t |
T |
Dia. of Hub |
r |
Dia. of Face |
Dia. of Raised Face |
d |
Bolt.Circla Dia |
Number of Bolt Holes |
Hole Dia |
S1 |
m |
S2 |
n |
|||||||
|
a |
b |
|||||||||||||||||||
|
|
|
|
D |
f |
g |
C |
h |
|
||||||||||||
|
10 |
17.3 |
17.8 |
110 |
18 |
26 |
34 |
38 |
5 |
1 |
52 |
- |
75 |
4 |
19 |
M16 |
28 |
6 |
28 |
5 |
1.11 |
|
15 |
21.7 |
22.2 |
115 |
20 |
30 |
39 |
43 |
5 |
1 |
55 |
- |
80 |
4 |
19 |
M16 |
32.5 |
6 |
32.5 |
5 |
1.39 |
|
20 |
27.2 |
27.7 |
120 |
20 |
30 |
45 |
49 |
5 |
1 |
60 |
- |
85 |
4 |
19 |
M16 |
38 |
6 |
38 |
5 |
1.51 |
|
25 |
34 |
34.5 |
130 |
22 |
32 |
55 |
59 |
5 |
1 |
70 |
- |
95 |
4 |
19 |
M16 |
47.8 |
6 |
47.8 |
5 |
1.97 |
|
32 |
42.7 |
43.2 |
140 |
24 |
36 |
64 |
68 |
6 |
2 |
80 |
- |
105 |
4 |
19 |
M16 |
56.5 |
6 |
56.5 |
5 |
2.5 |
|
40 |
48.6 |
49.1 |
160 |
24 |
36 |
70 |
74 |
6 |
2 |
90 |
- |
120 |
4 |
23 |
M20 |
62.5 |
6 |
62.5 |
5 |
3.26 |
|
50 |
60.5 |
61.1 |
165 |
26 |
38 |
86 |
90 |
6 |
2 |
105 |
- |
130 |
8 |
19 |
M16 |
74.5 |
6 |
74.5 |
5.5 |
3.47 |
|
65 |
76.3 |
77.1 |
200 |
30 |
44 |
106 |
110 |
8 |
2 |
130 |
62.3 |
160 |
8 |
23 |
M20 |
91.5 |
7 |
91.5 |
7 |
5.97 |
|
80 |
89.1 |
90.3 |
210 |
32 |
46 |
118 |
124 |
8 |
2 |
140 |
73.9 |
170 |
8 |
23 |
M20 |
105.5 |
7.5 |
105.5 |
7 |
6.76 |
|
100 |
114.3 |
115.4 |
250 |
36 |
52 |
145 |
151 |
8 |
2 |
165 |
97.1 |
205 |
8 |
25 |
M22 |
133 |
8.5 |
133 |
7 |
10.78 |
|
125 |
139.8 |
141.4 |
300 |
40 |
58 |
182 |
188 |
8 |
2 |
200 |
120.8 |
250 |
8 |
27 |
M24 |
160.5 |
9.5 |
160.5 |
7 |
16.97 |
|
150 |
165.2 |
167 |
355 |
44 |
64 |
200 |
208 |
8 |
2 |
240 |
143.2 |
295 |
12 |
33 |
M30 |
188 |
11 |
188 |
7 |
22.6 |
|
200 |
216.3 |
218.2 |
405 |
50 |
72 |
255 |
263 |
8 |
2 |
290 |
190.9 |
345 |
12 |
33 |
M30 |
243 |
13 |
243 |
7 |
34.9 |
|
250 |
267.4 |
269.5 |
475 |
56 |
80 |
310 |
318 |
10 |
2 |
355 |
237.2 |
410 |
12 |
33 |
M30 |
298 |
15 |
298 |
7 |
41.1 |
