KS B 1503 5K Flange
5K slip on flange KSB 1503
Standard: KSB 1503
Flange type: Slip-on flange
Size range: 10A-450A
Pressure: 5K
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: KSB 1503
Flange type: Slip-on flange
Size range: 10A-450A
Pressure class: 5K
Process: forged
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: KSB 1503
Flange type:Slip-on flange
Size range: 10A-450A
Pressure class:5K
Material : Stainless steel , Alloy Steel , Carbon Steel
|

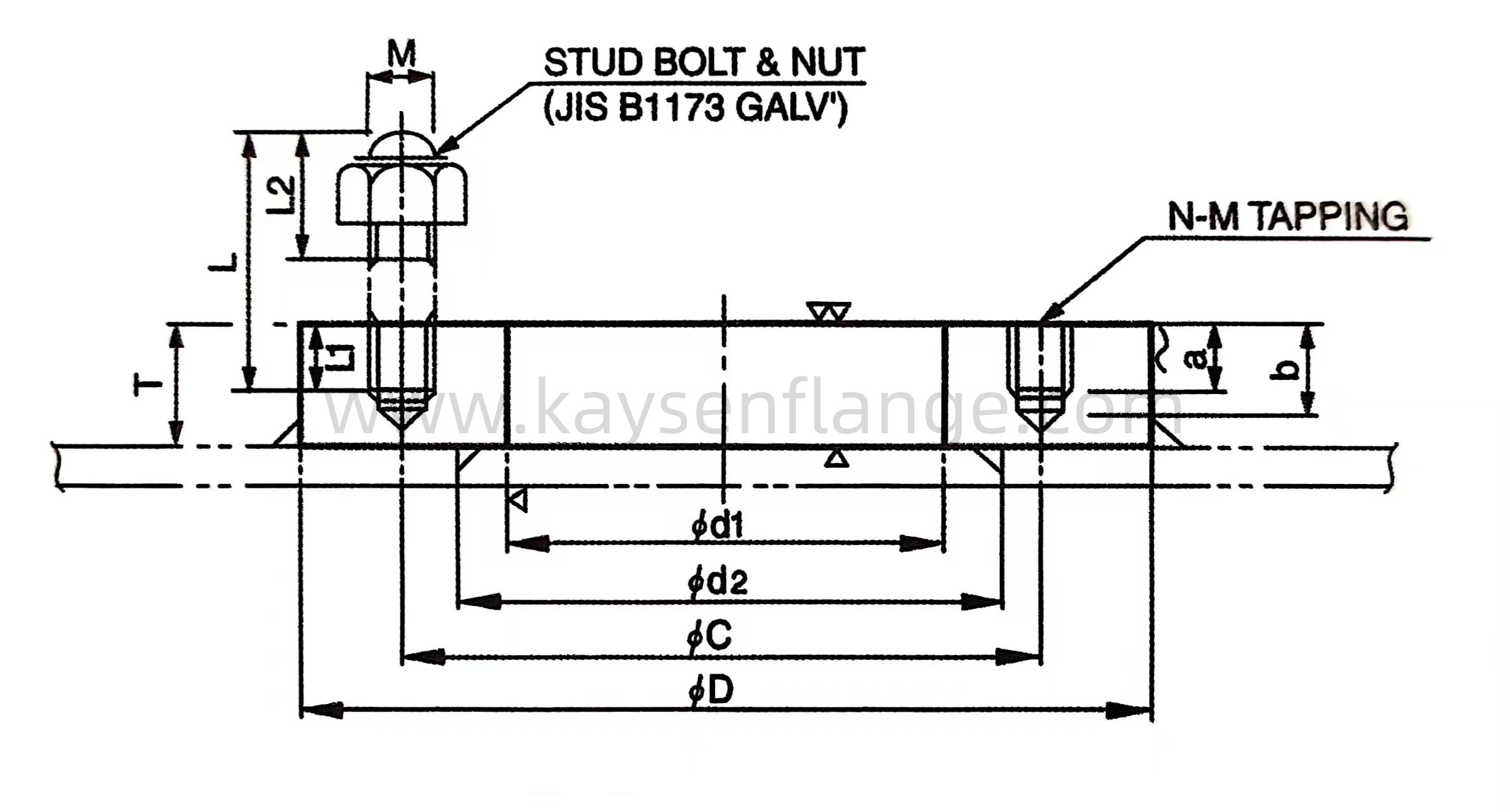

Nominal Bore of Flange |
Sectional Dimensions of Flange |
STUD BOLT |
Weight (kg) |
|||||||||
|
|
D |
C |
d1 |
T |
a |
b |
N |
M |
L |
L2 |
L1 |
|
|
10A |
75 |
55 |
17.8 |
16 |
10 |
12 |
4 |
M10 |
32 |
CONTINUOUS THREAD |
0.47 |
|
|
15A |
80 |
60 |
22.2 |
16 |
10 |
12 |
4 |
M10 |
32 |
|
0.53 |
|
|
20A |
85 |
65 |
27.7 |
16 |
10 |
12 |
4 |
M10 |
32 |
|
0.6 |
|
|
25A |
95 |
75 |
34.5 |
16 |
10 |
12 |
4 |
M10 |
32 |
|
0.72 |
|
|
32A |
115 |
90 |
43.2 |
22 |
12 |
16 |
4 |
M12 |
40 |
22 |
12 |
1.45 |
|
40A |
120 |
95 |
49.1 |
22 |
12 |
16 |
4 |
M12 |
40 |
22 |
12 |
1.54 |
|
50A |
130 |
105 |
61.1 |
22 |
12 |
16 |
4 |
M12 |
45 |
22 |
12 |
1.7 |
|
65A |
155 |
130 |
77.1 |
22 |
12 |
16 |
4 |
M12 |
45 |
22 |
12 |
2.36 |
|
80A |
180 |
145 |
90 |
26 |
16 |
19 |
4 |
M16 |
50 |
28 |
16 |
3.74 |
|
100A |
200 |
165 |
115.4 |
26 |
16 |
19 |
8 |
M16 |
55 |
28 |
16 |
4.01 |
|
125A |
235 |
200 |
141.2 |
26 |
16 |
19 |
8 |
M16 |
55 |
28 |
16 |
5.38 |
|
150A |
265 |
230 |
166.6 |
26 |
16 |
19 |
8 |
M16 |
55 |
28 |
16 |
6.52 |
|
200A |
320 |
280 |
218 |
30 |
20 |
23 |
8 |
M20 |
65 |
36 |
20 |
9.66 |
|
250A |
385 |
345 |
269.5 |
30 |
20 |
23 |
12 |
M20 |
65 |
36 |
20 |
13.25 |
|
300A |
430 |
390 |
321 |
30 |
20 |
23 |
12 |
M20 |
65 |
36 |
20 |
14.41 |
|
350A |
480 |
435 |
358.1 |
34 |
22 |
25 |
12 |
M22 |
75 |
40 |
22 |
20.55 |
|
400A |
540 |
495 |
409 |
34 |
22 |
25 |
16 |
M22 |
75 |
40 |
22 |
24.85 |
|
450A |
605 |
555 |
460 |
34 |
22 |
25 |
16 |
M22 |
75 |
40 |
22 |
31.15 |
