KS B 1511 2K Flange
2kg/c㎡ slip-on flange KS B 1511
Standard: KS B 1511
Flange type: slip-on flange
Size range: 450A-1500A
Pressure: 2kg/c㎡
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: KS B 1511
Flange type: slip-on flange
Size range: 450A-1500A
Pressure class: 2kg/c㎡
Process: forged
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: KS B 1511
Flange type: slip-on flange
Size range: 450A-1500A
Pressure class:2kg/c㎡
Material : Stainless steel , Alloy Steel , Carbon Steel
|

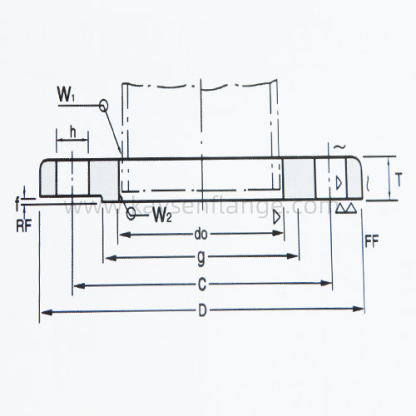

Nominal Dia of Flange |
Outside Dia of steel pipe |
Inside Diam of Flange do |
Sectional Dimensions |
Bolt Hole |
Nominal Bolt Size |
|||
|
|
|
|
t |
D |
C |
h |
N |
|
|
450A |
457.2 |
460 |
22 |
605 |
555 |
23 |
16 |
M20 |
|
500A |
508 |
511 |
22 |
655 |
605 |
23 |
20 |
M20 |
|
550A |
558.8 |
562 |
24 |
720 |
665 |
25 |
20 |
M22 |
|
600A |
609.6 |
613 |
24 |
770 |
715 |
25 |
20 |
M22 |
|
650A |
660.4 |
664 |
24 |
825 |
770 |
25 |
24 |
M22 |
|
700A |
711.2 |
715 |
24 |
875 |
820 |
25 |
24 |
M22 |
|
750A |
762 |
766 |
24 |
945 |
880 |
27 |
24 |
M24 |
|
800A |
812.9 |
817 |
24 |
995 |
930 |
27 |
24 |
M24 |
|
850A |
863.6 |
868 |
24 |
1045 |
980 |
27 |
24 |
M24 |
|
900A |
914.4 |
919 |
24 |
1095 |
1030 |
27 |
24 |
M24 |
|
1000A |
1016 |
1021 |
26 |
1195 |
1130 |
27 |
28 |
M24 |
|
1100A |
1117.6 |
1123 |
26 |
1305 |
1240 |
27 |
28 |
M24 |
|
1200A |
1219.2 |
1124 |
26 |
1420 |
1350 |
27 |
32 |
M24 |
|
1350A |
1371.6 |
1377 |
26 |
1575 |
1505 |
27 |
32 |
M24 |
|
1500A |
1524 |
1529 |
28 |
1730 |
1660 |
27 |
36 |
M24 |
