KS V 7815 slip-on flange 1K

Standard: KSB 1503

Flange type: slip-on flange

Size range: DN25 - DN2600

Pressure: 1K

Material: Stainless steel , Alloy Steel , Carbon Steel

Send Inquiry

Standard: KSB 1503
Flange type: slip-on flange
Size range: DN25 - DN2600
Pressure class: 1K
Process: forged
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.

Standard: KSB 1503
Flange type: slip-on flange
Size range: DN25 - DN2600
Pressure class:1K
Material : Stainless steel , Alloy Steel , Carbon Steel

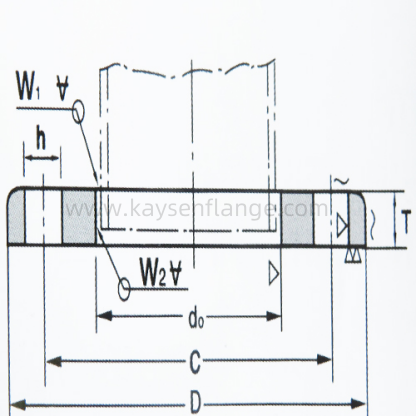

Nominal Dia of Flange	Outside Dia of steel pipe	FLANGE			Bolt Hole			Nominal Bolt Size	Weight (kg)
		D	I/D(do)	T	C	N	h



25	34	95	34.5	10	75	4	12	M10	0.45
32	42.7	115	43.2	12	90	4	15	M12	0.73
40	48.6	120	49.1	12	95	4	15	M12	0.83
50	60.5	130	61.1	14	105	4	15	M12	1.06
65	76.3	155	77.1	14	130	4	15	M12	1.48
80	89.1	180	90	14	145	4	19	M16	1.97
100	114.3	200	115.4	16	165	8	19	M16	2.35
125	139.8	235	141.2	16	200	8	19	M16	3.2
150	165.2	265	166.6	16	230	8	19	M16	3.9
200	216.3	320	218	16	280	8	23	M20	5
250	267.4	385	269.5	16	345	12	23	M20	6.83
300	318.5	430	321	16	390	12	23	M20	7.45
350	355.6	480	358.1	16	435	12	25	M22	9.45
400	406.4	540	409	16	495	16	25	M22	11.43
450	457.2	605	460	16	555	16	25	M22	14.4
500	508	655	511	16	605	16	25	M22	15.73
550	555.8	660	562	16	620	16	23	M20	12
600	609.6	710	613	16	670	16	23	M20	12.12
650	660.4	760	664	16	720	16	23	M20	12.15
700	711.2	815	715	16	775	16	23	M20	14.26
750	762	865	766	16	825	20	23	M20	14.88
800	812.8	915	817	16	875	20	23	M20	15.7
850	863.6	965	868	16	925	20	23	M20	16.5
900	914.4	1025	919	18	980	20	25	M22	21.48
950	962	1075	967	18	1030	20	25	M22	21.97
1000	1016	1125	1021	18	1080	20	25	M22	23.38
1050	1062	1175	1067	18	1130	24	25	M22	25.21
1100	1117.6	1225	1122	18	1180	24	25	M22	25.16
1150	1162	1275	1167	18	1230	24	25	M22	26.64
1200	1219	1325	1224	18	1280	24	25	M22	27.6
1250	1262	1375	1267	18	1330	28	25	M22	29.72
1300	1312	1425	1317	18	1380	28	25	M22	30.92
1350	1371.6	1475	1376	18	1430	28	25	M22	32.38
1400	1412	1525	1417	20	1480	28	25	M22	37.02
1450	1462	1595	1467	20	1540	28	27	M24	45.81
1500	1524	1645	1529	20	1590	28	27	M24	46.88
1600	1612	1745	1617	20	1690	28	27	M24	50.54
1700	1712	1845	1717	20	1790	28	27	M24	53.7
1800	1812	1950	1817	20	1895	32	27	M24	58.9
1900	1912	2050	1917	20	1995	32	27	M24	62.18
2000	2012	2150	2017	20	2095	36	27	M24	65.1
2100	2116	2250	2121	24	2195	36	27	M24	79.55
2200	2216	2350	2221	24	2295	40	27	M24	82.94
2300	2316	2450	2321	24	2395	40	27	M24	86.75
2400	2416	2550	2421	24	2495	40	27	M24	89.71
2500	2516	2650	2521	24	2595	48	27	M24	93.52
2600	2616	2750	2621	24	2695	48	27	M24	97.34
