lSO 9624 Lap Joint Flange
ISO 9624 Lap Joint Flange PN10
Standard: ISO 9624
Flange type: lap joint flange
Size range: DN20-DN1000
Pressure: PN10
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: ISO 9624
Flange type: lap joint flange
Size range: DN20-DN1000
Pressure class: PN10
Process: forged
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: ISO 9624
Flange type: lap joint flange
Size range: DN20-DN1000
Pressure class:PN10
Material : Stainless steel , Alloy Steel , Carbon Steel
|

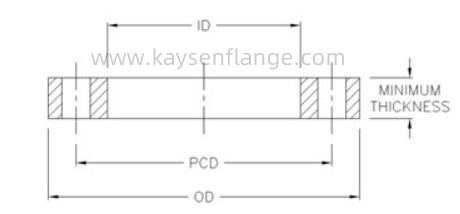

Nominal Pipe OD |
Flange Size |
OD |
ID |
Minimum Thickness |
PCD |
Bolt Hole No.x.Dia |
Bolt Size |
|
20 |
15 |
95 |
28 |
14 |
65 |
4*14 |
M12 |
|
25 |
20 |
105 |
34 |
16 |
75 |
4*14 |
M12 |
|
32 |
25 |
115 |
42 |
16 |
85 |
4*14 |
M12 |
|
40 |
32 |
140 |
51 |
18 |
100 |
4*18 |
M16 |
|
50 |
40 |
150 |
62 |
18 |
110 |
4*18 |
M16 |
|
63 |
50 |
165 |
78 |
20 |
125 |
4*18 |
M16 |
|
75 |
65 |
185 |
92 |
20 |
145 |
8*18 |
M16 |
|
90 |
80 |
200 |
108 |
20 |
160 |
8*18 |
M16 |
|
110 |
100 |
220 |
128 |
22 |
180 |
8*18 |
M16 |
|
125 |
100 |
220 |
135 |
22 |
180 |
8*18 |
M16 |
|
140 |
125 |
250 |
158 |
22 |
210 |
8*18 |
M16 |
|
160 |
150 |
285 |
178 |
24 |
240 |
8*22 |
M20 |
|
180 |
150 |
285 |
188 |
24 |
240 |
8*22 |
M20 |
|
200 |
200 |
340 |
235 |
24 |
295 |
8*22 |
M20 |
|
225 |
200 |
340 |
238 |
24 |
295 |
8*22 |
M20 |
|
250 |
250 |
395 |
288 |
26 |
350 |
12*22 |
M20 |
|
280 |
250 |
395 |
294 |
26 |
350 |
12*22 |
M20 |
|
315 |
300 |
445 |
338 |
28 |
400 |
12*22 |
M20 |
|
355 |
350 |
505 |
376 |
30 |
460 |
16*26 |
M20 |
|
400 |
400 |
565 |
430 |
32 |
515 |
16*26 |
M24 |
|
450 |
450 |
615 |
470 |
35 |
565 |
20*26 |
M24 |
|
450 |
500 |
670 |
517 |
38 |
620 |
20*26 |
M24 |
|
500 |
500 |
670 |
533 |
38 |
620 |
20*26 |
M24 |
|
560 |
600 |
780 |
618 |
42 |
725 |
20*29.5 |
M27 |
|
630 |
600 |
780 |
645 |
42 |
725 |
20*29.5 |
M27 |
|
710 |
700 |
895 |
740 |
- |
840 |
24*29.5 |
M27 |
|
800 |
800 |
1015 |
843 |
- |
950 |
24*32.5 |
M30 |
|
900 |
900 |
1115 |
947 |
- |
1050 |
28*32.5 |
M30 |
|
1000 |
1000 |
1230 |
1050 |
- |
1160 |
28*35.5 |
M30 |
