SABS 1123 Flange Class 2500KPa

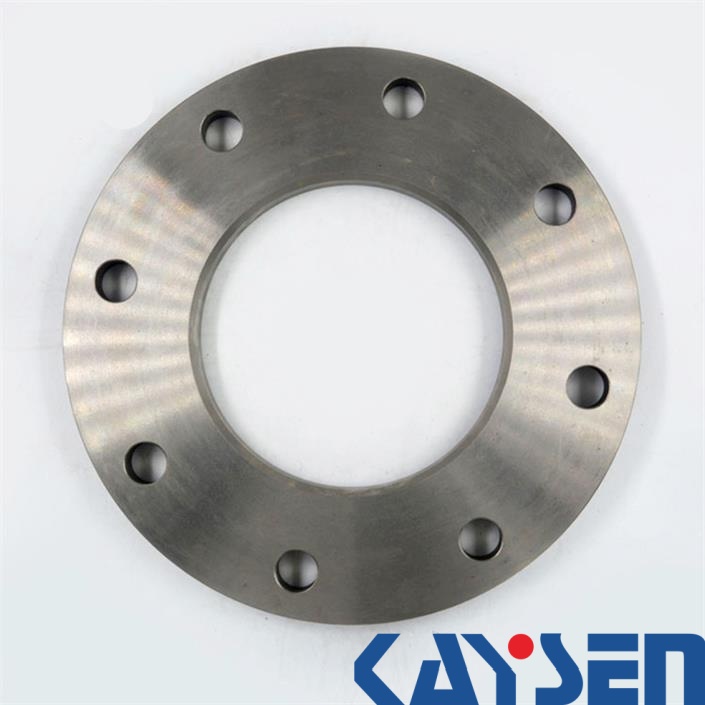

SABS 1123 SO plate Flange Class 2500KPa
Standard: SABS 1123
Flange type: SO plate flange
Size range: DN10-DN600
Pressure: 2500KPa
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: SABS 1123
Flange type: SO plate flange
Size range: DN10-DN600
Pressure class: 2500KPa
Process: forged
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: SABS 1123
Flange type: SO plate flange
Size range: DN10-DN600
Pressure class:2500KPa
Material : Stainless steel , Alloy Steel , Carbon Steel
|

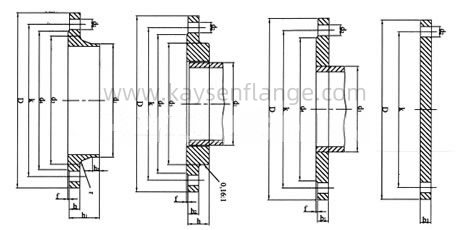

SOUTH AFRICA STANDARD SABS/SANS 1123 FLANGE CLASS 2500KPA SPECIFICATION |
||||||||||||||||||
|
Nominal pressure 2500 kPa 2500/2 = Table 19 2500/4 = Table 21 2500/3 = Table 20 2500/8 = Table 23 |
||||||||||||||||||
|
NB |
Pipe O.D. |
Flange |
Raised Face |
Bolt |
Drilling |
Neck |
Boss |
|||||||||||
|
d1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
D |
b |
b1 |
b2 |
b3 |
h |
h1 |
d4 |
f |
No. |
d2 |
k |
d3 |
h2 |
r |
d5 |
||
|
10 |
17.2 |
90 |
12 |
12 |
10 |
12 |
16 |
35 |
40 |
2 |
M12 |
4 |
14 |
60 |
28 |
6 |
4 |
30 |
|
15 |
21.3 |
95 |
14 |
14 |
11 |
14 |
17 |
38 |
45 |
2 |
M12 |
4 |
14 |
65 |
32 |
6 |
4 |
35 |
|
20 |
26.9 |
105 |
14 |
14 |
11 |
14 |
19 |
40 |
58 |
2 |
M12 |
4 |
14 |
75 |
40 |
6 |
4 |
45 |
|
25 |
33.7 |
115 |
16 |
16 |
12 |
16 |
22 |
40 |
68 |
2 |
M12 |
4 |
14 |
85 |
46 |
6 |
4 |
52 |
|
32 |
42.4 |
140 |
18 |
18 |
14 |
18 |
26 |
42 |
78 |
2 |
M16 |
4 |
18 |
100 |
55 |
6 |
6 |
60 |
|
40 |
48.3 |
150 |
18 |
20 |
14 |
20 |
28 |
45 |
88 |
3 |
M16 |
4 |
18 |
110 |
64 |
7 |
6 |
70 |
|
50 |
60.3 |
165 |
20 |
20 |
17 |
20 |
31 |
48 |
102 |
3 |
M16 |
4 |
18 |
125 |
75 |
8 |
6 |
85 |
|
65 |
76.1 |
185 |
22 |
22 |
17 |
22 |
33 |
52 |
122 |
3 |
M16 |
8 |
18 |
145 |
90 |
10 |
6 |
105 |
|
80 |
88.9 |
200 |
24 |
22 |
18 |
22 |
34 |
58 |
138 |
3 |
M16 |
8 |
18 |
160 |
105 |
12 |
8 |
118 |
|
100 |
114.3 |
235 |
24 |
25 |
21 |
25 |
41 |
65 |
162 |
3 |
M20 |
8 |
22 |
190 |
134 |
12 |
8 |
145 |
|
125 |
139.7 |
270 |
26 |
28 |
24 |
28 |
46 |
68 |
188 |
3 |
M24 |
8 |
26 |
220 |
162 |
12 |
8 |
170 |
|
150 |
168.3 |
300 |
28 |
30 |
24 |
30 |
48 |
75 |
218 |
3 |
M24 |
8 |
26 |
250 |
192 |
12 |
10 |
200 |
|
175 |
193.7 |
330 |
30 |
30 |
- |
25 |
- |
75 |
248 |
3 |
M24 |
12 |
26 |
280 |
218 |
15 |
10 |
- |
|
200 |
219.1 |
360 |
30 |
30 |
- |
30 |
- |
80 |
278 |
3 |
M24 |
12 |
26 |
310 |
244 |
16 |
10 |
- |
|
225 |
244.5 |
395 |
30 |
30 |
- |
30 |
- |
84 |
306 |
3 |
M24 |
12 |
26 |
340 |
270 |
16 |
10 |
- |
|
250 |
273.0 |
425 |
30 |
30 |
- |
30 |
- |
88 |
335 |
3 |
M24 |
12 |
26 |
370 |
298 |
18 |
12 |
- |
|
300 |
323.9 |
485 |
34 |
32 |
- |
32 |
- |
92 |
395 |
4 |
M24 |
16 |
26 |
430 |
352 |
18 |
12 |
- |
|
350 |
355.6 |
555 |
38 |
35 |
- |
35 |
- |
100 |
450 |
4 |
M30 |
16 |
33 |
490 |
398 |
20 |
12 |
- |
|
400 |
406.5 |
620 |
40 |
40 |
- |
40 |
- |
110 |
505 |
4 |
M30 |
16 |
33 |
550 |
452 |
20 |
12 |
- |
|
450 |
457.2 |
670 |
42 |
45 |
- |
45 |
- |
110 |
555 |
4 |
M30 |
20 |
33 |
600 |
505 |
20 |
12 |
- |
|
500 |
508.0 |
730 |
44 |
50 |
- |
50 |
- |
125 |
615 |
4 |
M30 |
20 |
33 |
660 |
558 |
20 |
12 |
- |
|
550 |
559.0 |
785 |
- |
55 |
- |
- |
- |
- |
670 |
5 |
M36 |
20 |
39 |
710 |
- |
- |
- |
- |
|
600 |
609.6 |
845 |
46 |
60 |
- |
- |
- |
125 |
720 |
5 |
M36 |
20 |
39 |
770 |
660 |
20 |
12 |
- |
