SABS 1123 Flange Class 600KPa
SABS 1123 SO blind Flange Class 600KPa
Standard: SABS 1123
Flange type: SO blind flange
Size range: DN10-DN600
Pressure: 600KPa
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: SABS 1123
Flange type: SO blind flange
Size range: DN10-DN600
Pressure class: 600KPa
Process: forged
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: SABS 1123
Flange type: SO blind flange
Size range: DN10-DN600
Pressure class: 600KPa
Material : Stainless steel , Alloy Steel , Carbon Steel
|

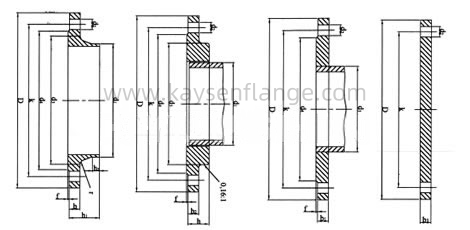

SOUTH AFRICA STANDARD SABS/SANS 1123 FLANGE CLASS 600KPA SPECIFICATION |
||||||||||||||||||
|
Nominal pressure 600 kPa 600/2 = Table 4 600/4 = Table 6 600/3 = Table 5 600/8 = Table 8 |
||||||||||||||||||
|
NB |
Pipe O.D. |
Flange |
Raised Face |
Bolt |
Drilling |
Neck |
Boss |
|||||||||||
|
d1 |
D |
b |
b1 |
b2 |
b3 |
h |
h1 |
d4 |
f |
No. |
d2 |
k |
d3 |
h2 |
r |
d5 |
||
|
10 |
17.2 |
75 |
8 |
10 |
8 |
10 |
16 |
28 |
35 |
2 |
M10 |
4 |
11 |
50 |
26 |
6 |
4 |
25 |
|
15 |
21.3 |
80 |
8 |
10 |
8 |
10 |
16 |
30 |
40 |
2 |
M10 |
4 |
11 |
55 |
30 |
6 |
4 |
30 |
|
20 |
26.9 |
90 |
8 |
10 |
8 |
10 |
18 |
32 |
50 |
2 |
M10 |
4 |
11 |
65 |
38 |
6 |
4 |
40 |
|
25 |
33.7 |
100 |
8 |
10 |
8 |
10 |
18 |
35 |
60 |
2 |
M10 |
4 |
11 |
75 |
42 |
6 |
4 |
50 |
|
32 |
42.4 |
120 |
8 |
10 |
8 |
10 |
20 |
35 |
70 |
2 |
M12 |
4 |
14 |
90 |
55 |
6 |
6 |
60 |
|
40 |
48.3 |
130 |
8 |
10 |
8 |
10 |
20 |
38 |
80 |
3 |
M12 |
4 |
14 |
100 |
62 |
7 |
6 |
70 |
|
50 |
60.3 |
140 |
8 |
10 |
8 |
10 |
22 |
38 |
90 |
3 |
M12 |
4 |
14 |
110 |
74 |
8 |
6 |
80 |
|
65 |
76.1 |
160 |
8 |
10 |
8 |
10 |
26 |
38 |
110 |
3 |
M12 |
4 |
14 |
130 |
88 |
9 |
6 |
100 |
|
80 |
88.9 |
190 |
10 |
10 |
10 |
10 |
28 |
42 |
128 |
3 |
M16 |
4 |
18 |
150 |
102 |
10 |
8 |
110 |
|
100 |
114.3 |
210 |
10 |
10 |
10 |
10 |
34 |
45 |
148 |
3 |
M16 |
4 |
18 |
170 |
130 |
10 |
8 |
130 |
|
*125 |
139.7 |
240 |
13 |
12 |
13 |
12 |
39 |
48 |
178 |
3 |
M16 |
8 |
18 |
200 |
155 |
10 |
8 |
160 |
|
150 |
168.3 |
265 |
13 |
12 |
13 |
12 |
39 |
48 |
202 |
3 |
M16 |
8 |
18 |
225 |
184 |
12 |
10 |
185 |
|
*175 |
193.7 |
295 |
13 |
14 |
- |
14 |
- |
52 |
230 |
3 |
M16 |
8 |
18 |
255 |
210 |
12 |
10 |
- |
|
200 |
219.1 |
320 |
13 |
14 |
- |
14 |
- |
55 |
258 |
3 |
M16 |
8 |
18 |
280 |
236 |
15 |
10 |
- |
|
*225 |
244.5 |
345 |
16 |
16 |
- |
16 |
- |
58 |
285 |
3 |
M16 |
8 |
18 |
305 |
264 |
15 |
12 |
- |
|
250 |
273 |
375 |
16 |
16 |
- |
16 |
- |
60 |
312 |
3 |
M16 |
12 |
18 |
335 |
290 |
15 |
12 |
- |
|
300 |
323.9 |
440 |
20 |
20 |
- |
20 |
- |
62 |
365 |
4 |
M20 |
12 |
22 |
395 |
342 |
15 |
12 |
- |
|
350 |
355.6 |
490 |
22 |
22 |
- |
22 |
- |
62 |
415 |
4 |
M20 |
12 |
22 |
445 |
385 |
15 |
12 |
- |
|
400 |
406.4 |
540 |
22 |
22 |
- |
22 |
- |
65 |
465 |
4 |
M20 |
16 |
22 |
495 |
438 |
15 |
12 |
- |
|
450 |
457.2 |
595 |
24 |
25 |
- |
25 |
- |
65 |
520 |
4 |
M20 |
16 |
22 |
550 |
492 |
15 |
12 |
- |
|
500 |
508 |
645 |
24 |
25 |
- |
25 |
- |
68 |
570 |
4 |
M20 |
20 |
22 |
600 |
538 |
15 |
12 |
- |
|
550 |
559 |
705 |
24 |
28 |
- |
28 |
- |
68 |
620 |
5 |
M24 |
20 |
26 |
655 |
590 |
16 |
12 |
- |
|
600 |
609.6 |
755 |
24 |
30 |
- |
30 |
- |
70 |
670 |
5 |
M24 |
20 |
26 |
705 |
640 |
16 |
12 |
- |
