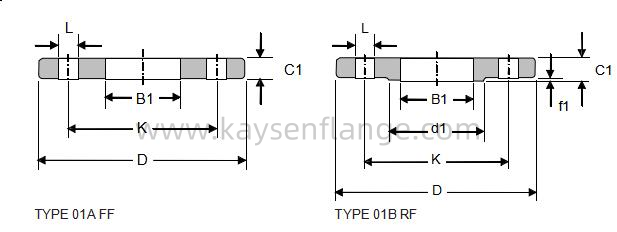

Type 01 NFE 29203 Flange
NFE 29203 Flange Type 01 PN2.5
Standard: NFE 29203
Flange type: weld neck flange,slip on flange,blind flange,plate flange.
Size range: DN10-DN600
Pressure: PN2.5
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: NFE 29203
Flange type: weld neck flange,slip on flange,blind flange,plate flange.
Size range: DN10-DN600
Pressure class: PN2.5
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: NFE 29203
Flange type: weld neck flange,slip on flange,blind flange,plate flange.
Size range: DN10-DN600
Pressure class: PN2.5
Material : Stainless steel , Alloy Steel , Carbon Steel
|
DN |
D |
K |
L |
No.of Holes |
B1 |
C1 |
KG |
Raised Face |
||
|
d1 |
f1 |
KG |
||||||||
|
10 |
75 |
50 |
11 |
4 |
18 |
12 |
0.36 |
35 |
2 |
0.31 |
|
15 |
80 |
55 |
11 |
4 |
22 |
12 |
0.4 |
40 |
2 |
0.35 |
|
20 |
90 |
65 |
11 |
4 |
27.5 |
14 |
0.59 |
50 |
2 |
0.53 |
|
25 |
100 |
75 |
11 |
4 |
34.5 |
14 |
0.72 |
60 |
2 |
0.65 |
|
32 |
120 |
90 |
14 |
4 |
43.5 |
16 |
1.16 |
70 |
2 |
1.05 |
|
40 |
130 |
100 |
14 |
4 |
49 |
16 |
1.35 |
80 |
3 |
1.17 |
|
50 |
140 |
110 |
14 |
4 |
61.5 |
16 |
1.48 |
90 |
3 |
1.28 |
|
65 |
160 |
130 |
14 |
4 |
77.5 |
16 |
1.86 |
110 |
3 |
1.62 |
|
80 |
190 |
150 |
18 |
4 |
90.5 |
18 |
2.95 |
128 |
3 |
2.61 |
|
100 |
210 |
170 |
18 |
4 |
116 |
18 |
3.26 |
148 |
3 |
2.87 |
|
125 |
240 |
200 |
18 |
8 |
141.5 |
20 |
4.31 |
178 |
3 |
3.88 |
|
150 |
265 |
225 |
18 |
8 |
170.5 |
20 |
4.76 |
202 |
3 |
4.26 |
|
200 |
320 |
280 |
18 |
8 |
222 |
22 |
6.85 |
258 |
3 |
6.24 |
|
250 |
375 |
335 |
18 |
12 |
276.5 |
24 |
8.92 |
315 |
3 |
8.23 |
|
300 |
440 |
395 |
22 |
12 |
327.5 |
24 |
11.92 |
365 |
4 |
10.57 |
|
350 |
490 |
445 |
22 |
12 |
359.5 |
26 |
16.84 |
415 |
4 |
15.31 |
|
400 |
540 |
495 |
22 |
16 |
411 |
28 |
19.84 |
465 |
4 |
18.17 |
|
450 |
595 |
550 |
22 |
16 |
462.5 |
30 |
24.48 |
520 |
4 |
22.61 |
|
500 |
645 |
600 |
22 |
20 |
513.5 |
30 |
26.39 |
570 |
4 |
24.38 |
|
600 |
755 |
705 |
26 |
20 |
616.5 |
30 |
32.63 |
670 |
5 |
29.32 |
