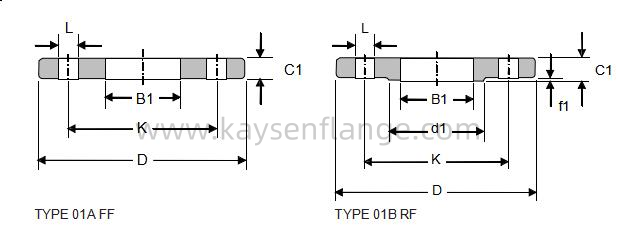

Type 01 NFE 29203 Flange
NFE 29203 Flange Type 01 PN10
Standard: NFE 29203
Flange type: weld neck flange,slip on flange,blind flange,plate flange.
Size range: DN10-DN600
Pressure: PN10
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: NFE 29203
Flange type: weld neck flange,slip on flange,blind flange,plate flange.
Size range: DN10-DN600
Pressure class: PN10
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: NFE 29203
Flange type: weld neck flange,slip on flange,blind flange,plate flange.
Size range: DN10-DN600
Pressure class: PN10
Material : Stainless steel , Alloy Steel , Carbon Steel
|
DN |
D |
K |
L |
No.of Holes |
B1 |
C1 |
KG |
Raised Face |
||
|
d1 |
f1 |
KG |
||||||||
|
10 |
90 |
60 |
14 |
4 |
18 |
14 |
0.6 |
40 |
2 |
0.53 |
|
15 |
95 |
65 |
14 |
4 |
22 |
14 |
0.67 |
45 |
2 |
0.59 |
|
20 |
105 |
75 |
14 |
4 |
27.5 |
16 |
0.94 |
58 |
2 |
0.85 |
|
25 |
115 |
85 |
14 |
4 |
34.5 |
16 |
1.11 |
68 |
2 |
1.01 |
|
32 |
140 |
100 |
18 |
4 |
43.5 |
16 |
1.62 |
78 |
2 |
1.47 |
|
40 |
150 |
110 |
18 |
4 |
49 |
16 |
1.85 |
88 |
3 |
1.61 |
|
50 |
165 |
125 |
18 |
4 |
61.5 |
18 |
2.46 |
102 |
3 |
2.17 |
|
65 |
185 |
145 |
18 |
4 |
77.5 |
18 |
2.99 |
122 |
3 |
2.65 |
|
80 |
200 |
160 |
18 |
8 |
90.5 |
22 |
3.96 |
138 |
3 |
3.62 |
|
100 |
220 |
180 |
18 |
8 |
116 |
22 |
4.39 |
158 |
3 |
4 |
|
125 |
250 |
210 |
18 |
8 |
141.5 |
24 |
5.9 |
188 |
3 |
5.45 |
|
150 |
285 |
240 |
22 |
8 |
170.5 |
24 |
7.14 |
212 |
3 |
6.54 |
|
200 |
340 |
295 |
22 |
8 |
222 |
24 |
9.24 |
268 |
3 |
8.5 |
|
250 |
395 |
350 |
22 |
12 |
276.5 |
26 |
11.82 |
320 |
3 |
10.94 |
|
300 |
445 |
400 |
22 |
12 |
327.5 |
26 |
13.62 |
370 |
4 |
12.25 |
|
350 |
505 |
460 |
22 |
16 |
359.5 |
28 |
20.38 |
430 |
4 |
18.84 |
|
400 |
565 |
515 |
26 |
16 |
411 |
32 |
27.52 |
482 |
4 |
25.64 |
|
450 |
615 |
565 |
26 |
20 |
462.5 |
38 |
35.33 |
532 |
4 |
33.32 |
|
500 |
670 |
620 |
26 |
20 |
513.5 |
38 |
40.23 |
585 |
4 |
37.93 |
|
600 |
780 |
725 |
30 |
20 |
616.5 |
40 |
51.87 |
685 |
5 |
48.13 |
