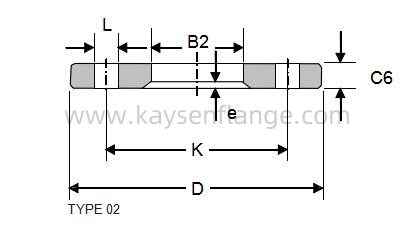

Type 02 NFE 29203 Flange
NFE 29203 Flange Type 02 PN10
Standard: NFE 29203
Flange type: slip on flange
Size range: DN10-DN600
Pressure: PN10
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: NFE 29203
Flange type: slip on flange
Size range: DN10-DN600
Pressure class: PN10
Face type: Flat Face(FF),Raised Face(RF),Ring Type Joint(RTJ)
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: NFE 29203
Flange type: slip on flange
Size range: DN10-DN600
Pressure class: PN10
Material : Stainless steel , Alloy Steel , Carbon Steel
|
DN |
D |
K |
L |
No. of Hole s |
B2 |
C 6 |
e |
KG |
|
10 |
75 |
50 |
11 |
4 |
19 |
10 |
3 |
0.29 |
|
15 |
80 |
55 |
11 |
4 |
24 |
10 |
3 |
0.33 |
|
20 |
90 |
65 |
11 |
4 |
30 |
10 |
4 |
0.41 |
|
25 |
100 |
75 |
11 |
4 |
36 |
12 |
4 |
0.61 |
|
32 |
120 |
90 |
14 |
4 |
46 |
12 |
5 |
0.85 |
|
40 |
130 |
100 |
14 |
4 |
54 |
12 |
5 |
0.98 |
|
50 |
140 |
110 |
14 |
4 |
65 |
12 |
5 |
1.08 |
|
65 |
160 |
130 |
14 |
4 |
81 |
12 |
6 |
1.35 |
|
80 |
190 |
150 |
18 |
4 |
94 |
14 |
6 |
2.24 |
|
100 |
210 |
170 |
18 |
4 |
119 |
14 |
6 |
2.47 |
|
125 |
240 |
200 |
18 |
8 |
145 |
14 |
6 |
2.93 |
|
150 |
265 |
225 |
18 |
8 |
173 |
14 |
6 |
3.25 |
|
200 |
320 |
280 |
18 |
8 |
225 |
16 |
6 |
4.85 |
|
250 |
375 |
335 |
18 |
12 |
279 |
20 |
8 |
7.26 |
|
300 |
440 |
395 |
22 |
12 |
329 |
24 |
8 |
11.77 |
|
350 |
490 |
445 |
22 |
12 |
365 |
26 |
8 |
16.2 |
|
400 |
540 |
495 |
22 |
16 |
413 |
28 |
8 |
19.56 |
|
450 |
595 |
550 |
22 |
16 |
467 |
30 |
8 |
23.71 |
|
500 |
645 |
600 |
22 |
20 |
517 |
32 |
8 |
27.43 |
|
600 |
755 |
705 |
26 |
20 |
618 |
36 |
8 |
38.75 |
