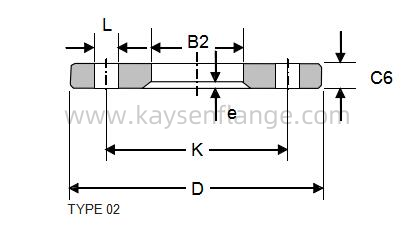

Type 02 NFE 29203 Flange
NFE 29203 Flange Type 02 PN16
Standard: NFE 29203
Flange type: slip on flange
Size range: DN10-DN600
Pressure: PN16
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: NFE 29203
Flange type: slip on flange
Size range: DN10-DN600
Pressure class: PN16
Face type: Flat Face(FF),Raised Face(RF),Ring Type Joint(RTJ)
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: NFE 29203
Flange type: slip on flange
Size range: DN10-DN600
Pressure class: PN16
Material : Stainless steel , Alloy Steel , Carbon Steel
|
DN |
D |
K |
L |
No. of Hole s |
B2 |
C 6 |
e |
KG |
|
10 |
90 |
60 |
14 |
4 |
19 |
14 |
3 |
0.6 |
|
15 |
95 |
65 |
14 |
4 |
24 |
14 |
3 |
0.66 |
|
20 |
105 |
75 |
14 |
4 |
30 |
16 |
4 |
0.92 |
|
25 |
115 |
85 |
14 |
4 |
36 |
16 |
4 |
1.1 |
|
32 |
140 |
100 |
18 |
4 |
46 |
16 |
5 |
1.6 |
|
40 |
150 |
110 |
18 |
4 |
54 |
16 |
5 |
1.8 |
|
50 |
165 |
125 |
18 |
4 |
65 |
16 |
5 |
2.14 |
|
65 |
185 |
145 |
18 |
4 |
81 |
18 |
6 |
2.93 |
|
80 |
200 |
160 |
18 |
8 |
94 |
18 |
6 |
3.17 |
|
100 |
220 |
180 |
18 |
8 |
119 |
18 |
6 |
3.51 |
|
125 |
250 |
210 |
18 |
8 |
145 |
18 |
6 |
4.32 |
|
150 |
285 |
240 |
22 |
8 |
173 |
18 |
6 |
5.26 |
|
200 |
340 |
295 |
22 |
12 |
225 |
20 |
6 |
7.3 |
|
250 |
405 |
355 |
26 |
12 |
279 |
24 |
8 |
11.55 |
|
300 |
460 |
410 |
26 |
12 |
329 |
28 |
8 |
16.44 |
|
350 |
520 |
470 |
26 |
16 |
362 |
32 |
8 |
25.36 |
|
400 |
580 |
525 |
30 |
16 |
413 |
36 |
8 |
33.61 |
|
450 |
640 |
585 |
30 |
20 |
467 |
40 |
8 |
42.79 |
|
500 |
715 |
650 |
33 |
20 |
517 |
44 |
8 |
60.27 |
|
600 |
840 |
770 |
36 |
20 |
618 |
- |
8 |
- |
