Type 03 NFE 29203 Flange
NFE 29203 Flange Type 03 PN25
Standard: NFE 29203
Flange type: slip on flange,plate flange,blind flange.
Size range: DN10-DN600
Pressure: PN25
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: NFE 29203
Flange type: slip on flange,plate flange,blind flange.
Size range: DN10-DN600
Pressure class: PN25
Face type: Flat Face(FF),Raised Face(RF),Ring Type Joint(RTJ)
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: NFE 29203
Flange type: slip on flange,plate flange,blind flange.
Size range: DN10-DN600
Pressure class: PN25
Material : Stainless steel , Alloy Steel , Carbon Steel
|

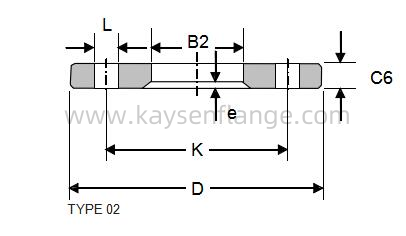

DN |
D |
K |
L |
No. of Hole s |
B2 |
C6 |
e |
KG |
|
10 |
90 |
60 |
14 |
4 |
19 |
16 |
3 |
0.69 |
|
15 |
95 |
65 |
14 |
4 |
24 |
16 |
3 |
0.76 |
|
20 |
105 |
75 |
14 |
4 |
30 |
16 |
4 |
0.92 |
|
25 |
115 |
85 |
14 |
4 |
36 |
18 |
4 |
1.24 |
|
32 |
140 |
100 |
18 |
4 |
46 |
18 |
5 |
1.8 |
|
40 |
150 |
110 |
18 |
4 |
54 |
18 |
5 |
2.03 |
|
50 |
165 |
125 |
18 |
4 |
65 |
20 |
5 |
2.68 |
|
65 |
185 |
145 |
18 |
8 |
81 |
20 |
6 |
3.09 |
|
80 |
200 |
160 |
18 |
8 |
94 |
22 |
6 |
3.88 |
|
100 |
235 |
190 |
22 |
8 |
119 |
22 |
6 |
5.04 |
|
125 |
270 |
220 |
26 |
8 |
145 |
24 |
6 |
6.88 |
|
150 |
300 |
250 |
26 |
8 |
173 |
24 |
6 |
8.09 |
|
200 |
360 |
310 |
26 |
12 |
225 |
26 |
6 |
11.36 |
|
250 |
425 |
370 |
30 |
12 |
279 |
30 |
8 |
17.01 |
|
300 |
485 |
430 |
30 |
16 |
329 |
34 |
8 |
23.6 |
|
350 |
555 |
490 |
33 |
16 |
362 |
38 |
8 |
37.38 |
|
400 |
620 |
550 |
36 |
16 |
413 |
42 |
8 |
50 |
|
450 |
670 |
600 |
36 |
20 |
467 |
- |
- |
- |
|
500 |
730 |
660 |
36 |
20 |
517 |
50 |
8 |
73.89 |
|
600 |
845 |
770 |
39 |
20 |
622 |
- |
- |
- |
