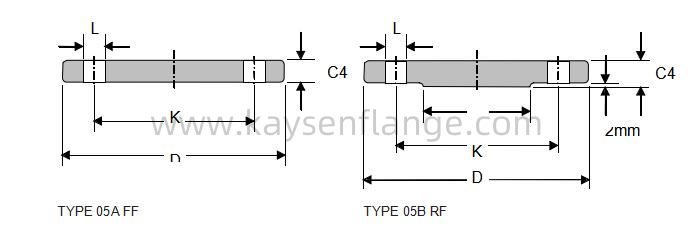

Type 05 NFE 29203 Flange
NFE 29203 flange type 05 PN10
Standard: NFE 29203
Flange type: slip on flange,plate flange,blind flange.
Size range: DN10-DN600
Pressure: PN10
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: NFE 29203
Flange type: slip on flange,plate flange,blind flange.
Size range: DN10-DN600
Pressure class: PN10
Face type: Flat Face(FF),Raised Face(RF),Ring Type Joint(RTJ)
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: NFE 29203
Flange type: slip on flange,plate flange,blind flange.
Size range: DN10-DN600
Pressure class: PN10
Material : Stainless steel , Alloy Steel , Carbon Steel
| DN | D | K | L | No.of Holes | C4 | KG | Raised Face | |
| G | KG | |||||||
| 10 | 90 | 60 | 14 | 4 | 14 | 0.63 | - | - |
| 15 | 95 | 65 | 14 | 4 | 14 | 0.71 | - | - |
| 20 | 105 | 75 | 14 | 4 | 16 | 1.01 | - | - |
| 25 | 115 | 85 | 14 | 4 | 16 | 1.23 | - | - |
| 32 | 140 | 100 | 18 | 4 | 18 | 2.03 | - | - |
| 40 | 150 | 110 | 18 | 4 | 18 | 2.35 | - | - |
| 50 | 165 | 125 | 18 | 4 | 18 | 2.88 | - | - |
| 65 | 185 | 145 | 18 | 4 | 20 | 4.06 | 55 | 3.69 |
| 80 | 200 | 160 | 18 | 8 | 20 | 4.61 | 70 | 4.21 |
| 100 | 220 | 180 | 18 | 8 | 22 | 6.21 | 90 | 5.75 |
| 125 | 250 | 210 | 18 | 8 | 22 | 8.13 | 115 | 7.55 |
| 150 | 285 | 240 | 22 | 8 | 24 | 11.45 | 140 | 10.73 |
| 200 | 340 | 295 | 22 | 8 | 24 | 16.53 | 190 | 15.6 |
| 250 | 395 | 350 | 22 | 12 | 26 | 24.08 | 240 | 22.94 |
| 300 | 445 | 400 | 22 | 12 | 26 | 30.81 | 290 | 29.48 |
| 350 | 505 | 460 | 22 | 16 | 26 | 39.64 | 325 | 37.89 |
| 400 | 565 | 515 | 26 | 16 | 28 | 53.24 | 375 | 51.17 |
| 450 | 615 | 565 | 26 | 20 | 28 | 62.96 | 425 | 60.69 |
| 500 | 670 | 620 | 26 | 20 | 30 | 80.53 | 475 | 77.94 |
| 600 | 780 | 725 | 30 | 20 | 34 | 123.76 | 575 | 120.56 |
