Type 05 NFE 29203 Flange
NFE 29203 Flange Type 05 PN16
Standard: NFE 29203
Flange type: slip on flange,plate flange,blind flange.
Size range: DN10-DN600
Pressure: PN16
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: NFE 29203
Flange type: slip on flange,plate flange,blind flange.
Size range: DN10-DN600
Pressure class: PN16
Face type: Flat Face(FF),Raised Face(RF),Ring Type Joint(RTJ)
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: NFE 29203
Flange type: slip on flange,plate flange,blind flange.
Size range: DN10-DN600
Pressure class: PN16
Material : Stainless steel , Alloy Steel , Carbon Steel

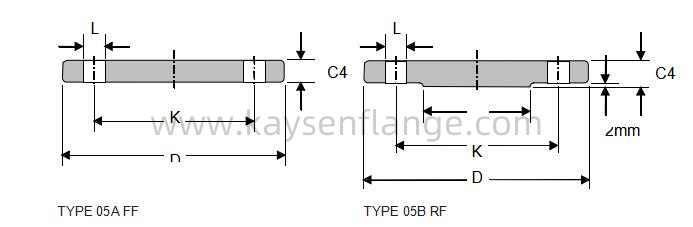

| DN | D | K | L | No.of Holes | C4 | KG | Raised Face | |
| G | KG | |||||||
| 10 | 90 | 60 | 14 | 4 | 14 | 0.63 | - | - |
| 15 | 95 | 65 | 14 | 4 | 14 | 0.71 | - | - |
| 20 | 105 | 75 | 14 | 4 | 16 | 1.01 | - | - |
| 25 | 115 | 85 | 14 | 4 | 16 | 1.23 | - | - |
| 32 | 140 | 100 | 18 | 4 | 18 | 2.03 | - | - |
| 40 | 150 | 110 | 18 | 4 | 18 | 2.35 | - | - |
| 50 | 165 | 125 | 18 | 4 | 18 | 2.88 | - | - |
| 65 | 185 | 145 | 18 | 4 | 20 | 4.06 | 55 | 3.69 |
| 80 | 200 | 160 | 18 | 8 | 20 | 4.61 | 70 | 4.21 |
| 100 | 220 | 180 | 18 | 8 | 22 | 6.21 | 90 | 5.75 |
| 125 | 250 | 210 | 18 | 8 | 22 | 8.13 | 115 | 7.55 |
| 150 | 285 | 240 | 22 | 8 | 24 | 11.45 | 140 | 10.73 |
| 200 | 340 | 295 | 22 | 12 | 26 | 17.6 | 190 | 16.69 |
| 250 | 405 | 355 | 26 | 12 | 26 | 24.99 | 240 | 23.78 |
| 300 | 460 | 410 | 26 | 12 | 28 | 35.13 | 290 | 33.66 |
| 350 | 520 | 470 | 26 | 16 | 30 | 48.01 | 325 | 46.11 |
| 400 | 580 | 525 | 30 | 16 | 32 | 63.53 | 375 | 61.29 |
| 450 | 640 | 585 | 30 | 20 | 36 | 86.92 | 425 | 84.32 |
| 500 | 715 | 650 | 33 | 20 | 40 | 120.7 | 475 | 117.45 |
| 600 | 840 | 770 | 36 | 20 | 44 | 184.38 | 575 | 180.08 |
