Type 11 NFE 29203 Flange
NFE 29203 Flange Type 11 PN40
Standard: NFE 29203
Flange type: Weld neck flange
Size range: DN10-DN600
Pressure: PN40
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: NFE 29203
Flange type: Weld neck flange
Size range: DN10-DN600
Pressure class: PN40
Face type: Flat Face(FF),Raised Face(RF),Ring Type Joint(RTJ)
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: NFE 29203
Flange type: Weld neck flange
Size range: DN10-DN600
Pressure class: PN40
Material : Stainless steel , Alloy Steel , Carbon Steel
|

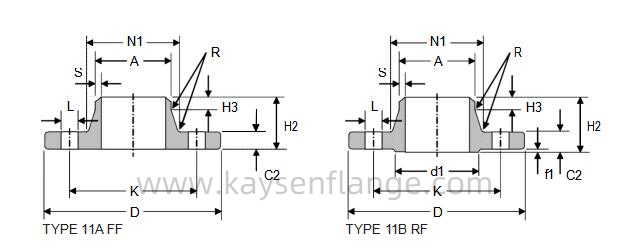

DN |
D |
K |
L |
No.of Holes |
A1 |
C2 |
H2 |
H3 |
N1 |
R |
S |
Flat Face |
Raised Face |
||
|
KG |
d1 |
f1 |
KG |
||||||||||||
|
10 |
90 |
60 |
14 |
4 |
17.2 |
16 |
35 |
6 |
28 |
3 |
1.8 |
0.73 |
40 |
2 |
0.66 |
|
15 |
95 |
65 |
14 |
4 |
21.3 |
16 |
38 |
6 |
32 |
3 |
2 |
0.83 |
45 |
2 |
0.75 |
|
20 |
105 |
75 |
14 |
4 |
26.9 |
18 |
40 |
6 |
40 |
4 |
2.3 |
1.15 |
58 |
2 |
1.07 |
|
25 |
115 |
85 |
14 |
4 |
33.7 |
18 |
40 |
6 |
46 |
4 |
2.6 |
1.38 |
68 |
2 |
1.28 |
|
32 |
140 |
100 |
18 |
4 |
42.4 |
18 |
42 |
6 |
56 |
5 |
2.6 |
2.01 |
78 |
2 |
1.86 |
|
40 |
150 |
110 |
18 |
4 |
48.3 |
18 |
45 |
7 |
64 |
5 |
2.6 |
2.33 |
88 |
3 |
2.08 |
|
50 |
165 |
125 |
18 |
4 |
60.3 |
20 |
48 |
8 |
75 |
5 |
2.9 |
3.06 |
102 |
3 |
2.78 |
|
65 |
185 |
145 |
18 |
8 |
76.1 |
22 |
52 |
10 |
90 |
6 |
2.9 |
3.92 |
122 |
3 |
3.61 |
|
80 |
200 |
160 |
18 |
8 |
88.9 |
24 |
58 |
12 |
105 |
6 |
3.2 |
4.96 |
138 |
3 |
4.62 |
|
100 |
235 |
190 |
22 |
8 |
114.3 |
24 |
65 |
12 |
134 |
6 |
3.6 |
6.73 |
162 |
3 |
6.27 |
|
125 |
270 |
220 |
26 |
8 |
139.7 |
26 |
68 |
12 |
162 |
6 |
4 |
9.21 |
188 |
3 |
8.61 |
|
150 |
300 |
250 |
26 |
8 |
168.3 |
28 |
75 |
12 |
192 |
8 |
4.5 |
11.98 |
218 |
3 |
11.29 |
|
200 |
375 |
320 |
30 |
12 |
219.1 |
32 |
88 |
16 |
244 |
8 |
6.3 |
20.45 |
285 |
3 |
19.55 |
|
250 |
450 |
385 |
33 |
12 |
273 |
38 |
105 |
18 |
306 |
10 |
7.1 |
34.64 |
345 |
3 |
33.34 |
|
300 |
515 |
450 |
33 |
16 |
323.9 |
42 |
115 |
18 |
362 |
10 |
8 |
48.52 |
410 |
4 |
46.55 |
|
350 |
580 |
510 |
36 |
16 |
355.6 |
46 |
125 |
20 |
408 |
10 |
8.8 |
70.18 |
465 |
4 |
67.73 |
|
400 |
660 |
585 |
39 |
16 |
406.4 |
50 |
135 |
20 |
462 |
10 |
11 |
99.81 |
535 |
4 |
96.73 |
|
450 |
685 |
610 |
39 |
20 |
457 |
50 |
135 |
20 |
500 |
12 |
12.5 |
97.51 |
560 |
4 |
94.42 |
|
500 |
755 |
670 |
42 |
20 |
508 |
52 |
140 |
20 |
562 |
12 |
14.2 |
124.82 |
615 |
4 |
120.96 |
|
600 |
890 |
795 |
48 |
20 |
610 |
60 |
150 |
20 |
666 |
12 |
16 |
188.67 |
735 |
5 |
182.33 |
