Type 11 NFE 29203 Flange
NFE 29203 Flange Type 11 PN16
Standard: NFE 29203
Flange type: Weld neck flange
Size range: DN10-DN600
Pressure: PN16
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: NFE 29203
Flange type: Weld neck flange
Size range: DN10-DN600
Pressure class: PN16
Face type: Flat Face(FF),Raised Face(RF),Ring Type Joint(RTJ)
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: NFE 29203
Flange type: Weld neck flange
Size range: DN10-DN600
Pressure class: PN16
Material : Stainless steel , Alloy Steel , Carbon Steel
|

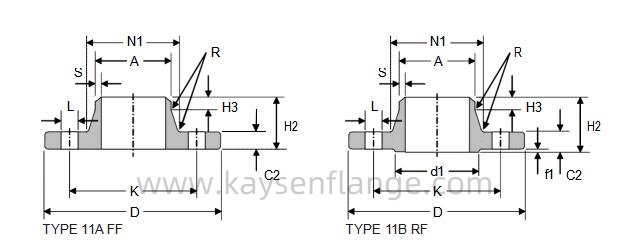

DN |
D |
K |
L |
No.of Holes |
A1 |
C2 |
H2 |
H3 |
N1 |
R |
S |
Flat Face |
Raised Face |
||
|
KG |
d1 |
f1 |
KG |
||||||||||||
|
10 |
90 |
60 |
14 |
4 |
17.2 |
14 |
35 |
6 |
28 |
3 |
1.8 |
0.65 |
40 |
2 |
0.58 |
|
15 |
95 |
65 |
14 |
4 |
21.3 |
14 |
35 |
6 |
32 |
3 |
2 |
0.73 |
45 |
2 |
0.65 |
|
20 |
105 |
75 |
14 |
4 |
26.9 |
16 |
38 |
6 |
40 |
4 |
2.3 |
1.03 |
58 |
2 |
0.95 |
|
25 |
115 |
85 |
14 |
4 |
33.7 |
16 |
38 |
6 |
45 |
4 |
2.6 |
1.23 |
68 |
2 |
1.14 |
|
32 |
140 |
100 |
18 |
4 |
42.4 |
16 |
40 |
6 |
56 |
5 |
2.6 |
1.8 |
78 |
2 |
1.65 |
|
40 |
150 |
110 |
18 |
4 |
48.3 |
16 |
42 |
7 |
64 |
5 |
2.6 |
2.08 |
88 |
3 |
1.83 |
|
50 |
165 |
125 |
18 |
4 |
60.3 |
18 |
45 |
8 |
75 |
5 |
2.9 |
2.77 |
102 |
3 |
2.48 |
|
65 |
185 |
145 |
18 |
4 |
76.1 |
18 |
45 |
10 |
90 |
6 |
2.9 |
3.36 |
122 |
3 |
3.03 |
|
80 |
200 |
160 |
18 |
8 |
88.9 |
20 |
50 |
10 |
105 |
6 |
3.2 |
4.16 |
138 |
3 |
3.82 |
|
100 |
220 |
180 |
18 |
8 |
114.3 |
20 |
52 |
12 |
131 |
6 |
3.6 |
4.8 |
158 |
3 |
4.41 |
|
125 |
250 |
210 |
18 |
8 |
139.7 |
22 |
55 |
12 |
156 |
6 |
4 |
6.52 |
188 |
3 |
6.07 |
|
150 |
285 |
240 |
22 |
8 |
168.3 |
22 |
55 |
12 |
184 |
8 |
4.5 |
8 |
212 |
3 |
7.4 |
|
200 |
340 |
295 |
22 |
12 |
219.1 |
24 |
62 |
16 |
235 |
8 |
5.6 |
11.45 |
268 |
3 |
10.75 |
|
250 |
405 |
355 |
26 |
12 |
273 |
26 |
70 |
16 |
292 |
10 |
6.3 |
16.86 |
320 |
3 |
15.87 |
|
300 |
460 |
410 |
26 |
12 |
323.9 |
28 |
78 |
16 |
344 |
10 |
7.1 |
22.74 |
378 |
4 |
21.24 |
|
350 |
520 |
470 |
26 |
16 |
355.6 |
30 |
82 |
16 |
390 |
10 |
8 |
33.05 |
438 |
4 |
31.38 |
|
400 |
580 |
525 |
30 |
16 |
406.4 |
32 |
85 |
16 |
445 |
10 |
8 |
41.32 |
490 |
4 |
39.3 |
|
450 |
640 |
585 |
30 |
20 |
457 |
34 |
85 |
16 |
490 |
12 |
8 |
49.17 |
550 |
4 |
46.97 |
|
500 |
715 |
650 |
33 |
20 |
508 |
34 |
90 |
16 |
548 |
12 |
8 |
62.52 |
610 |
4 |
59.63 |
|
600 |
840 |
770 |
36 |
20 |
610 |
36 |
95 |
18 |
652 |
12 |
8.8 |
87.29 |
725 |
5 |
82.54 |
