UNI Plate Flange (Slip on Flange)
UNI 6083 plate flange PN25
Standard: UNI
Flange type: plate flange
Size range: DN15-DN1000
Pressure: PN25
Material: Stainless steel , Alloy Steel , Carbon Steel
Standard: UNI
Flange type: plate flange
Size range: DN15-DN1000
Pressure class: PN25
Face type: Flat Face(FF),Raised Face(RF),Ring Joint(RJT)
Specialize: As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22, F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment: Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage: Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.
Standard: UNI
Flange type: plate flange
Size range: DN15-DN1000
Pressure class: PN25
Material : Stainless steel , Alloy Steel , Carbon Steel
|

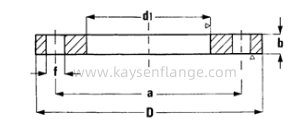

DN |
TUBO |
d1 |
a |
D |
b |
f |
VITI |
N.FORL |
Kg |
||
|
DIN |
ISO |
DIN |
ISO |
||||||||
|
200 |
219.1 |
221 |
310 |
360 |
32 |
25 |
M22 |
12 |
14.300 |
||
|
250 |
267 |
273 |
269 |
275 |
370 |
425 |
36 |
30 |
M27 |
12 |
20.900 |
|
300 |
323.9 |
326 |
430 |
485 |
40 |
30 |
M27 |
16 |
28.300 |
||
|
350 |
368 |
355.6 |
370.5 |
35B |
490 |
555 |
44 |
33 |
M30 |
16 |
44.100 |
|
400 |
419 |
406.4 |
422 |
409 |
550 |
620 |
48 |
36 |
M33 |
16 |
58.100 |
