UNI Welding Neck Flange

UNI 2281 weld neck flange PN10
UNI 2281 weld neck flange PN10

UNI 2281 weld neck flange PN10

Standard: UNI

Flange type: weld neck flange

Size range: DN15-DN2000

Pressure: PN10

Material: Stainless steel , Alloy Steel , Carbon Steel

Send Inquiry

Standard:    UNI
Flange type:  weld neck flange
Size range:   DN15-DN2000
Pressure class:   PN10
Process:    Forged
Specialize:   As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS  S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22,  F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment:  Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage:  Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.


Standard:   UNI
Flange type: weld neck flange
Size range: DN15-DN2000
Pressure class: PN10
Material : Stainless steel , Alloy Steel , Carbon Steel

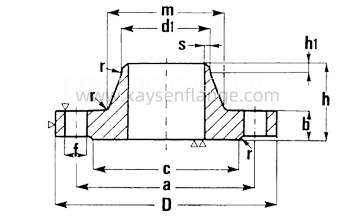

Directions for the designation

d1

a

b

D

f

h

h1

m

r

s

Holes

Screws

Weight*

Rated

External diameter

Kg

Diameter

of the pipe

15

20

21

65

14

95

14

35

6

30

4

2,5

4

M 12

0,73

21,3

22,5

32

0,73

20

25

26

75

16

105

14

38

6

38

4

2,5

4

M 12

1,03

26,9

28

40

1,03

25

30

31

85

16

115

14

38

6

42

4

2,8

4

M 12

1,24

33,7

34,5

45

1,23

32

38

39

100

16

140

18

40

6

52

6

3

4

M 16

1,82

42,4

43,5

56

1,80

40

44,5

45,5

110

16

150

18

42

7

60

6

3

4

M 16

2,10

48,3

49,5

64

2,08

50

57

58

125

18

165

18

45

8

72

6

3,5

4

M 16

2,81

60,3

61,5

75

2,78

65

76,1

77

145

18

185

18

45

10

90

6

3,5

4

M 16

3,40

80

88,9

90

160

20

200

18

50

10

105

8

3,7

8**

M 16

4,20

100

108

109

180

20

220

18

52

12

125

8

3,7

8

M 16

4,90

114,3

115,5

131

4,75

125

133

134

210

22

250

18

55

12

150

8

4

8

M 16

6,70

139,7

141

156

6,45

150

159

161

240

22

285

22

55

12

175

10

5

8

M 20

8,30

168,3

170,5

184

8,00

175

193,7

195,5

270

24

315

22

60

12

210

10

5

8

M 20

10,3

200

219,1

221

295

24

340

22

62

16

235

10

5

8

M 20

11,4

250

267

269

350

26

395

22

68

16

285

12

5,5

12

M 20

15,6

273

275

292

15,2

300

323,9

326

400

26

445

22

68

16

344

12

6

12

M 20

18,0

350

355,6

357,5

460

26

505

22

68

16

385

12

6,4

16

M 20

24,5

368

370

22,5

400

406,4

408,5

515

26

565

25

72

16

440

12

7

16

M 22

30,2

419

421

27,8

450

457,2

459

565

26

615

25

72

16

478

12

7,3

20

M 22

32,3

500

508

510

620

28

670

25

75

16

542

12

7,3

20

M 22

40,4

600

609,6

611,5

725

28

780

30

80

18

642

12

7,3

20

M 27

50,0

700

711,2

715

840

30

895

30

80

18

745

12

9

24

M 27

66,4

800

812,8

817

950

32

1015

33

90

18

850

12

9

24

M 30

89,3

900

914,4

918

1050

34

1115

33

95

20

950

12

9

28

M 30

104

1000

1016

1020

1160

34

1230

36

95

20

1052

16

9

28

M 33

121

1200

1220

1224

1380

38

1455

39

115

25

1255

16

10

32

M 36 x 3

180

1400

1420

1424

1590

42

1675

42

120

25

1460

16

11

36

M 39 x 3

248

1600

1620

1624

1820

46

1915

48

130

25

1665

16

12

40

M 45 x 3

352

1800

1820

1824

2020

50

2115

48

140

30

1868

16

13

44

M 45 x 3

433

2000

2020

2024

2230

54

2325

48

150

30

2072

16

14

48

M 45 x 3

543
