UNI Welding Neck Flange

UNI 2282 weld neck flange PN16
UNI 2282 weld neck flange PN16

UNI 2282 weld neck flange PN16

Standard: UNI

Flange type: weld neck flange

Size range: DN15-DN2000

Pressure: PN16

Material: Stainless steel , Alloy Steel , Carbon Steel

Send Inquiry

Standard:    UNI
Flange type:  weld neck flange
Size range:   DN15-DN2000
Pressure class:   PN16
Process:    Forged
Specialize:   As per drawing
Material:
Stainless Steel Material:
ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex stainless steel UNS  S32304,S31803,S32205.
Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707
Carbon Steel Material:
ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80
Alloy Steel Material:
ASTM A 182, GR F1,F5, F9, F11, F22,  F91
Copper&Nickel Alloy Material:
CU/NI 90/10, CU/NI 70/30
Nickel Alloy Material:
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Surface treatment:  Anti-rust oil, transparent/yellow/black,Anti-rust paint, Zinc,Hot dipped galvanized
Usage:  Oil field, Offshore, Water system, Shipbuilding, Natural gas,Electric power, Pipe projects,etc.


Standard:   UNI
Flange type: weld neck flange
Size range: DN15-DN2000
Pressure class: PN16
Material : Stainless steel , Alloy Steel , Carbon Steel

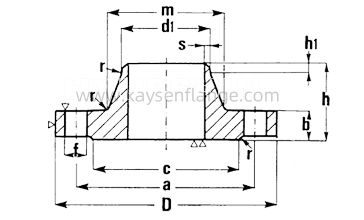

Directions for the designation

d1

a

b

D

f

h

h1

m

r

s

Holes

Screws

Weight*

Rated

External diameter

Kg

Diameter

of the pipe

15

20

21

65

14

95

14

35

6

30

4

2,5

4

M 12

0,73

21,3

22,5

32

0,73

20

25

26

75

16

105

14

38

6

38

4

2,5

4

M 12

1,03

26,9

28

40

1,03

25

30

31

85

16

115

14

38

6

42

4

2,8

4

M 12

1,24

33,7

34,5

45

1,23

32

38

39

100

16

140

18

40

6

52

6

3

4

M 16

1,82

42,4

43,5

56

1,80

40

44,5

45,5

110

16

150

18

42

7

60

6

3

4

M 16

2,10

48,3

49,5

64

2,08

50

57

58

125

18

165

18

45

8

72

6

3,5

4

M 16

2,81

60,3

61,5

75

2,78

65

76,1

77

145

18

185

18

45

10

90

6

3,5

4

M 16

3,40

80

88,9

90

160

20

200

18

50

10

105

8

3,7

8**

M 16

4,20

100

108

109

180

20

220

18

52

12

125

8

3,7

8

M 16

4,90

114,3

115,5

131

4,75

125

133

134

210

22

250

18

55

12

150

8

4

8

M 16

6,70

139,7

141

156

6,45

150

159

161

240

22

285

22

55

12

175

10

5

8

M 20

8,30

168,3

170,5

184

8,00

175

193,7

195,5

270

24

315

22

60

12

210

10

5

8

M 20

10,3

200

219,1

221

295

24

340

22

62

16

235

10

5

12

M 20

11,1

250

267

269

355

26

405

25

70

16

285

12

5,5

12

M 22

16,7

273

275

292

16,3

300

323,9

326

410

28

460

25

78

16

344

12

6

12

M 22

21,8

350

355,6

357,5

470

30

520

25

82

16

390

12

6,4

16

M 22

31,7

368

370

29,2

400

406,4

408,5

525

32

580

30

85

16

445

12

7

16

M 27

38,3

419

421

37,0

450

457,2

459

585

32

640

30

85

16

485

12

7,3

20

M 27

45,4

500

508

510

650

34

715

33

90

16

548

12

7,3

20

M 30

61,1

600

609,6

611,5

770

36

840

36

95

18

652

12

7,3

20

M 33

84,6

700

711,2

715

840

36

910

39

100

18

755

12

9

24

M 33

87,4

800

812,8

817

950

38

1025

39

105

20

855

12

9

24

M 36 x 3

109

900

914,4

918

1050

40

1125

42

110

20

955

12

10

28

M 36 x 3

129

1000

1016

1020

1170

42

1255

48

120

22

1058

16

12

28

M 39 x 3

175

1200

1220

1224

1390

48

1485

48

130

30

1262

16

14

32

M 45 x 3

257

1400

1420

1424

1590

52

1685

48

145

30

1465

16

16

36

M 45 x 3

337

1600

1620

1624

1820

58

1930

56

160

35

1668

16

17

40

M 52 x 3

481

1800

1820

1824

2020

62

2130

56

170

35

1870

16

19

44

M 52 x 3

591

2000

2020

2024

2230

66

2345

62

180

40

2072

16

21

48

M 56 x 4

727
